| ESRP-CMS-UNO2372 | ||
| Environment | Ingress Protection | IP40 |
| Environment | Operating Temperature | -20~60 °C (-4~140 °F) |
| Environment | Relative Humidity | 10~95% RH (non-condensing) |
| Environment | Shock Protection | 50 G, half sine |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Environment | Vibration Protection | 2 Grms, random |
| Hardware | Certification | CE, FCC, UL, CCC, BSMI |
| Hardware | CPU | Intel® Celeron® J3455 1.5 Ghz Quad-Core |
| Hardware | Graphics Engine | Intel® HD Graphics |
| Hardware | Hardware Security | TPM 2.0 |
| Hardware | Memory | 1 x SO-DIMM Memory with 4 GB DDR3L 1866MHz |
| Hardware | OS Support | Microsoft® Windows 10 LTSC, Linux |
| Hardware | Power Input | 10~36 VDC |
| Hardware | Storage | 1 x mSATA (shared with mPCIe), 1 x 2.5" SSD/HDD bay |
| I/O Interface | Audio | Line-Out |
| I/O Interface | Displays | 1 x HDMI, 1 x DP |
| I/O Interface | Expansion | 2 x Full-size mPCIe Slot |
| I/O Interface | LAN Ports | 2 x 10/100/1000 Mbps |
| I/O Interface | Power Connector | 1 x 2-Pin Terminal Block |
| I/O Interface | Serial Ports | 4 x RS-232/422/485 |
| I/O Interface | USB Ports | 4 x USB 3.0 |
| Mechanical | Dimension (W x H x D) | 150 x 105 x 35 mm(Single-stack);150 x 105 x 65 mm(Double-stack) |
| Mechanical | Enclosure | Aluminum housing |
| Mechanical | Weight (Net) | 1.1 kg (2.4 lb) |
| Hardware | BIOS | ThinManager BIOS |

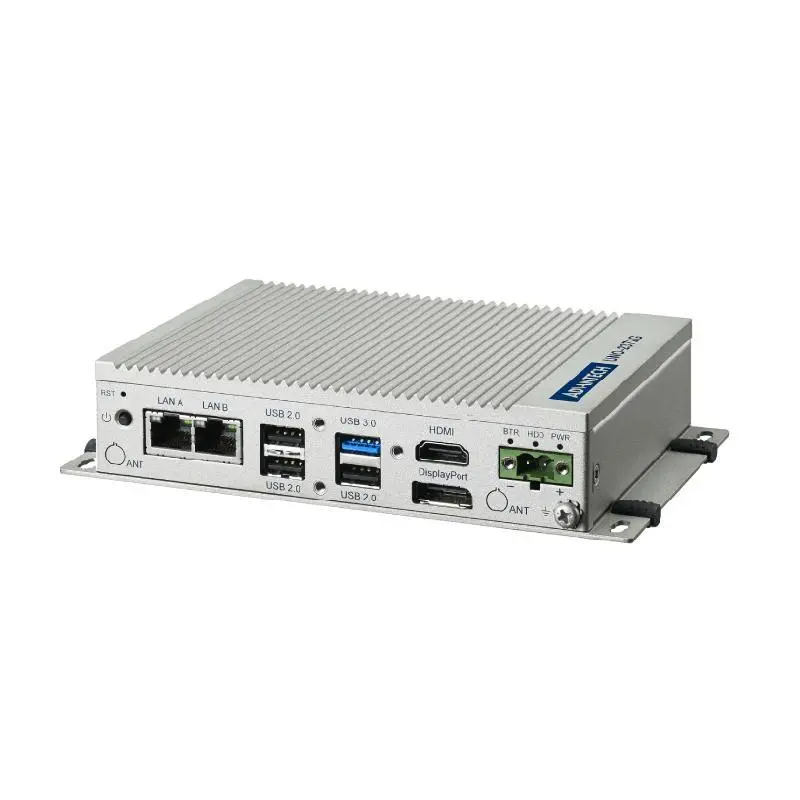

Advantech ESRP-CMS-UNO2372 Realize the true value of thin client and centralized management technologies with Advantech’s ThinManager compatible industrial thin clients.
