| EKI-1511-A | EKI-1511IL-A | ||
| Serial Communication | Serial Standard | RS-232 / RS-422 / RS-485 | RS-232 |
| Certification | EMC | CE, FCC | CE, FCC |
| Certification | EMI | EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024 | EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024 |
| Certification | Freefall | IEC 60068-2-32 | IEC 60068-2-32 |
| Certification | Safety | UL 62368 | UL 62368 |
| Certification | Shock | IEC 60068-2-27 | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 | IEC 60068-2-6 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 | RJ-45 |
| Serial Communication | Serial Port Connector Type | DB9 male | DB9 male |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Ethernet Standard | IEEE 802.3 , 802.3u | IEEE 802.3 , 802.3u |
| Ethernet Communication | RJ-45 Port Number | 1 | 1 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps | 10/100 Mbps |
| Serial Communication | Serial Port Number | 1 | 1 |
| Mechanism | Dimensions (W x H x D) | 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.) | 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.) |
| Mechanism | Enclosure (Metal) | Metal with solid mounting hardware | Metal with solid mounting hardware |
| Mechanism | IP Rating | IP30 | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes | Yes |
| Mechanism | Mounting (Wall) | Yes | Yes |
| Mechanism | Weight | 125 g | 125 g |
| Power | Power Consumption | 1W | 1W |
| Power | Power Input (DC) | 9 ~ 36 VDC | 9 ~ 36 VDC |
| Protection | Ethernet Isolation | Built-in 2.25 k VDC magnetic isolation | Built-in 2.25 k VDC magnetic isolation |
| Serial Communication | Baud Rate | 300~230.4 kbps | 300~230.4 kbps |
| Software | Configuration | Windows utility, Telnet console, Web Browser | Windows utility, Telnet console, Web Browser |
| Software | Operation Mode | COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection | COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection |
| Software | Driver | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux |
| Warranty | Warranty Period | 5 years | 5 years |

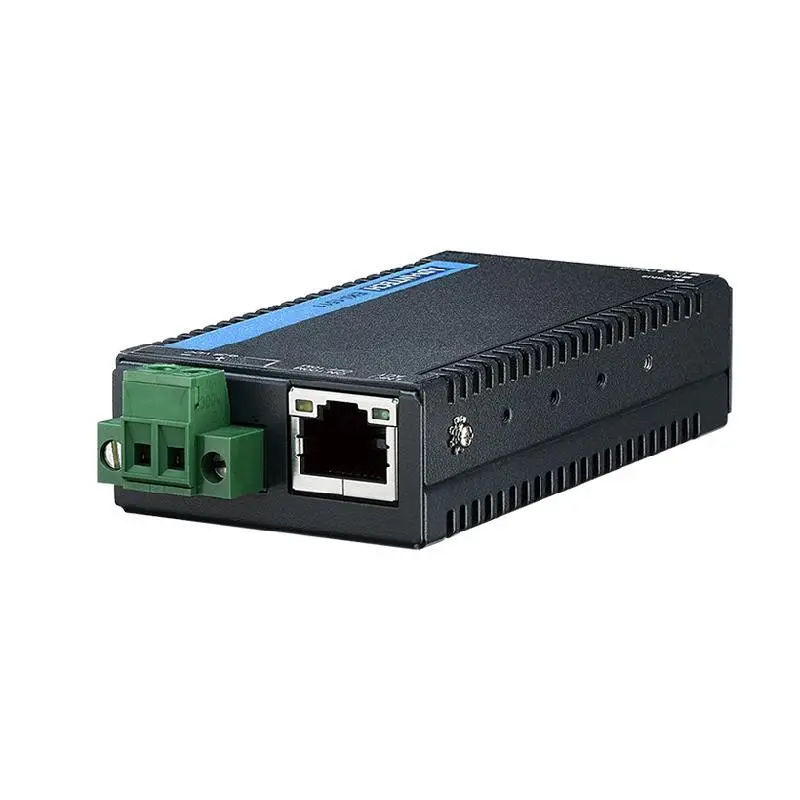

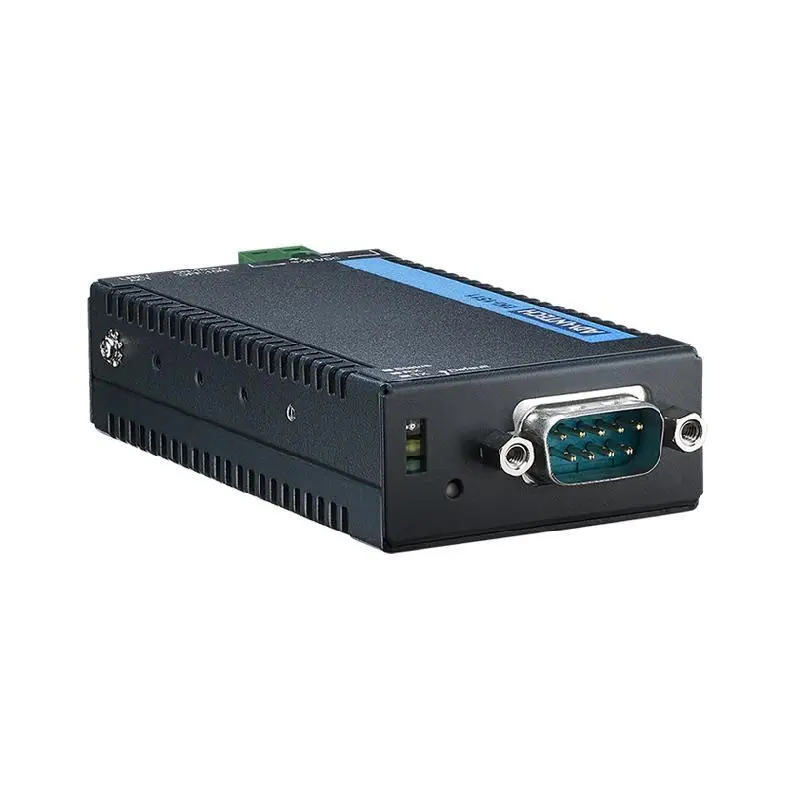

Advantech EKI-1511 1-Port Serial Device Server
