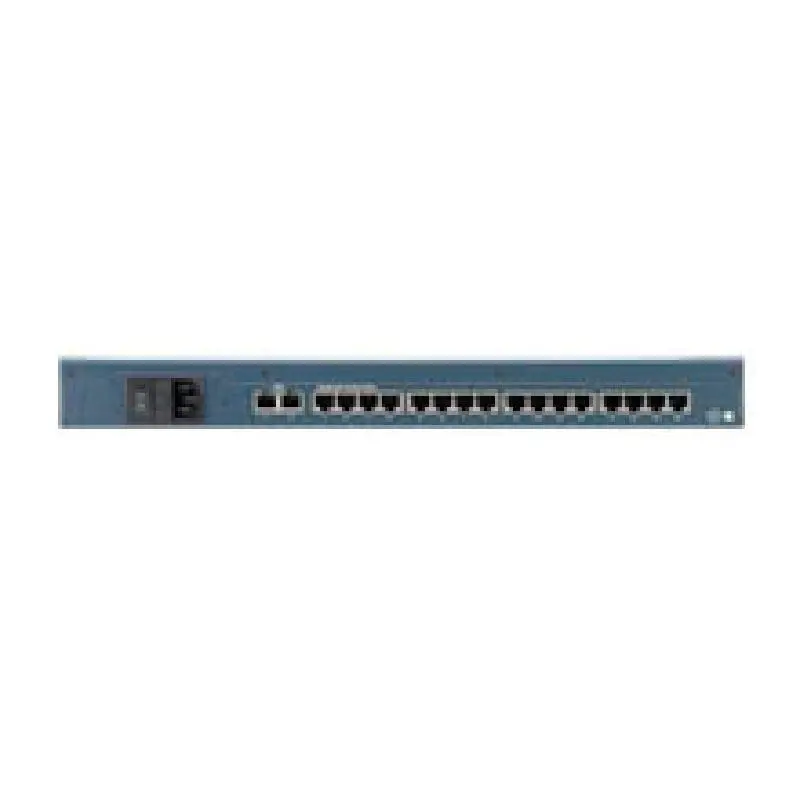

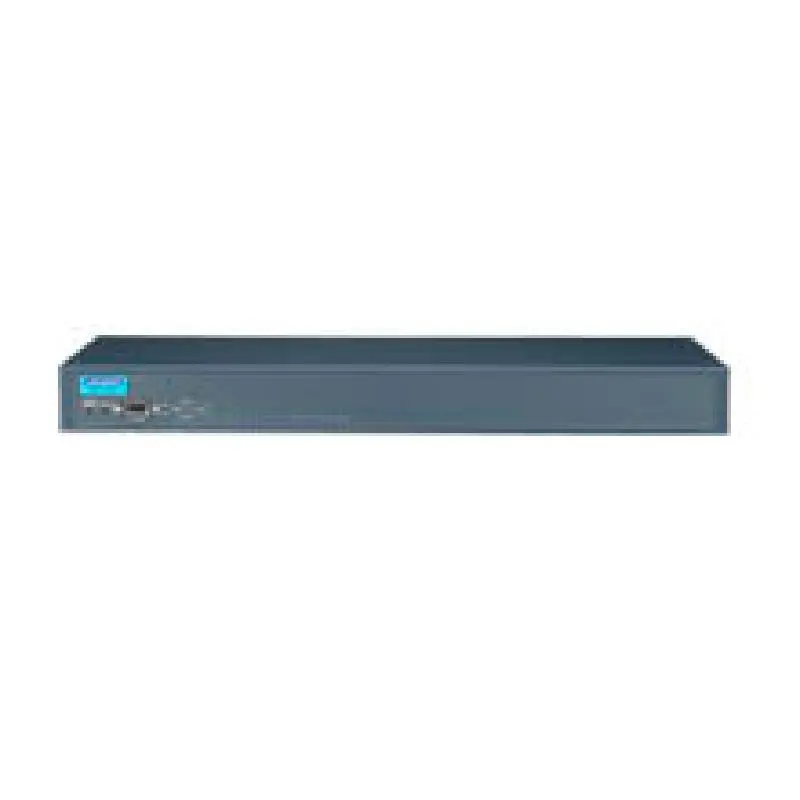

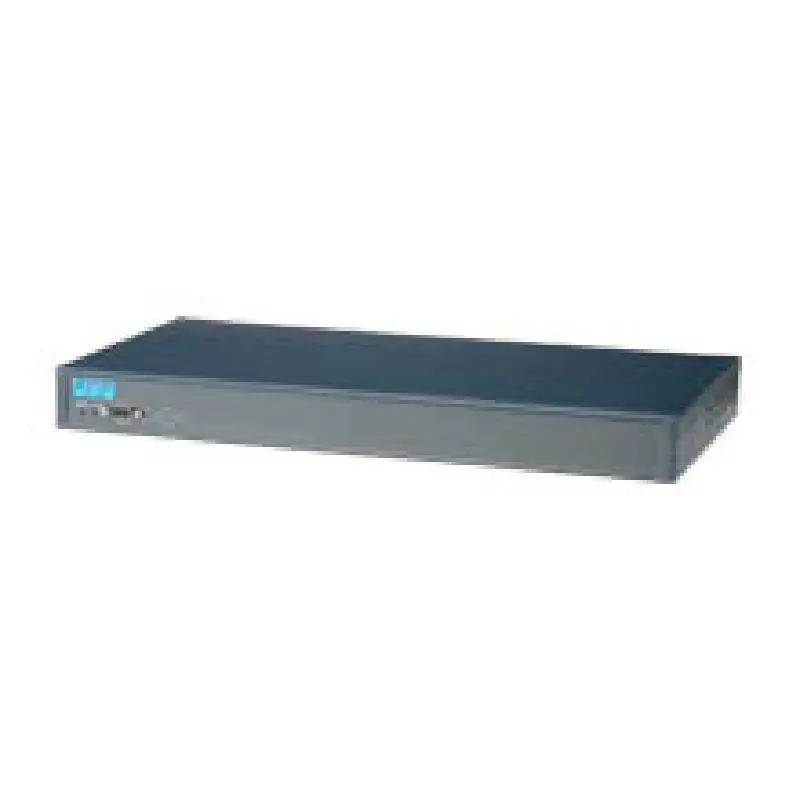

Advantech EKI-1526N 16-Port Serial Device Server, AC Input, Serial RJ45, Rackmount

    Automatic RS-485 data flow control

    Supports up to 976.5 kbps, and any baud rate setting

    Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy

    Provides COM port redirection (Virtual COM), TCP and UDP operation modes

    Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console

    Built-in 15 KV ESD protection for all serial signals

    Built-in buzzer for easy location

    SNMP MIB-II for network management

    8 or 16-port RS-232/422/485 serial communication

EKI-1526N-CE
Certification EMC CE, FCC
Certification EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Certification Freefall IEC 60068-2-32
Certification Safety UL 60950-1, UL 62368
Certification Vibration IEC 60068-2-6
Ethernet Communication RJ-45 Port Connector Type RJ-45
Serial Communication Serial Port Connector Type RJ45
Environment Temperature (Min. Operating) -10°C (14°F)
Environment Temperature (Max. Operating) 60°C (140°F)
Environment Operating Temperature -10 ~ 60°C (14 ~ 140°F)
Environment Storage Temperature -20 ~ 80°C (-4 ~ 176°F)
Ethernet Communication Ethernet Standard IEEE 802.3, 802.3u, 802.3ab
Ethernet Communication RJ-45 Port Number 2
Ethernet Communication RJ-45 Transmission Speed 10/100/1000 Mbps
Serial Communication Serial Port Number 16
Mechanism Dimensions (W x H x D) 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
Mechanism IP Rating IP30
Mechanism Weight 3.1 kg
Power Power Consumption 5.6W
Power Power Input (AC) 100 ~ 240 VAC
Power Power Operating Current 0.3A @ 110 VAC ;0.2A @ 220 VAC
Protection Reverse Polarity Present
Serial Communication RS-232 Yes
Serial Communication RS-422 Yes
Serial Communication RS-485 Yes
Serial Communication Baud Rate 50 ~ 921.6 Kbps
Protection Port to Port Isolation -
Serial Communication Serial Transmission Speed 50 ~ 921.6 Kbps
Software Configuration Windows utility, Telnet console, Web Browser
Software Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software Operation Mode Virtual COM, TCP/UDP server TCP/UDP client
Warranty Warranty Period 5 years
