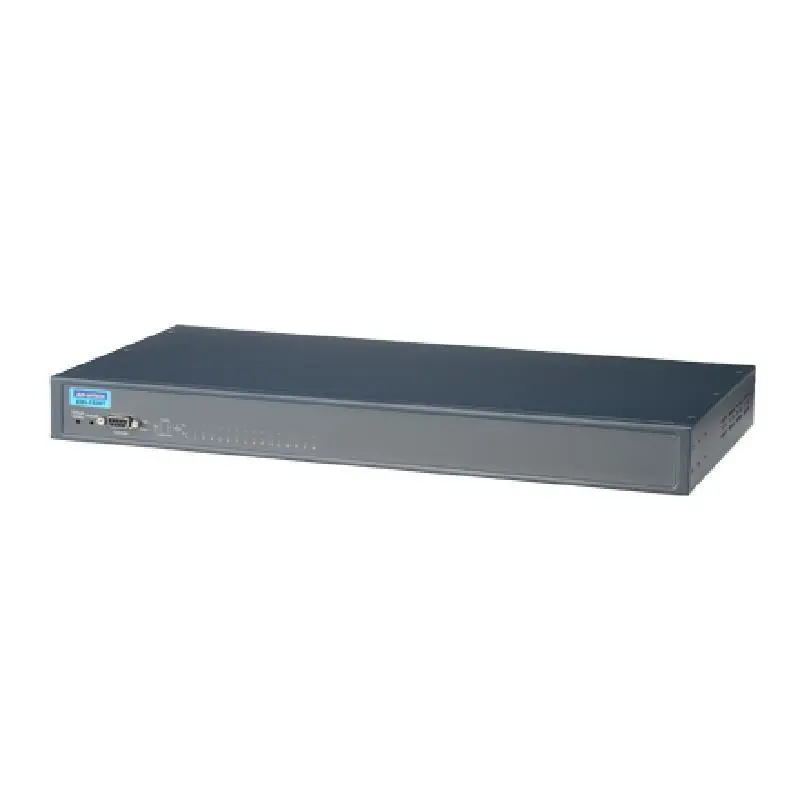

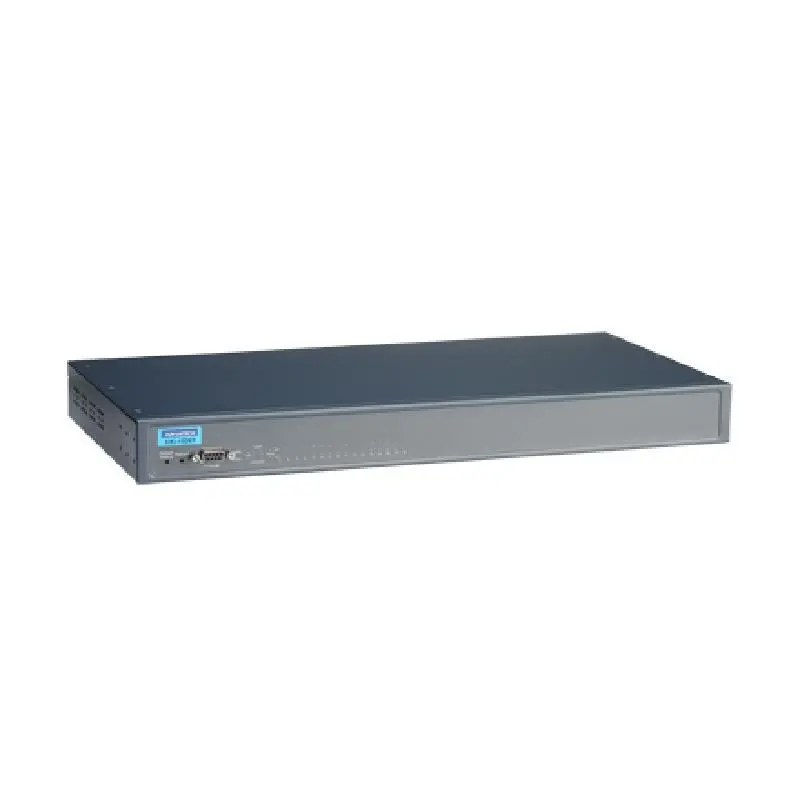

Advantech EKI-1526T 16-Port Serial Device Server, DC Input, DB9, Rackmount

    Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy

    Supports up to 976.5 kbps, and any baud rate setting

    Provides COM port redirection (Virtual COM), TCP and UDP operation modes

    Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console

    Built-in 15 KV ESD protection for all serial signals

    SNMP MIB-II for network management

    Built-in buzzer for easy location

    Standard 1U rackmount size

    Automatic RS-485 data flow control

    "I" models support a wide operating temperature

EKI-1526T-VDC-CE EKI-1526TI-VDC-CE
Certification EMC CE, FCC CE, FCC
Certification EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Certification Freefall IEC 60068-2-32 IEC 60068-2-32
Certification Safety UL 60950-1, UL 62368 UL 60950-1, UL 62368
Certification Vibration IEC 60068-2-6 IEC 60068-2-6
Ethernet Communication RJ-45 Port Connector Type RJ-45 RJ-45
Serial Communication Serial Port Connector Type DB9 DB9
Environment Temperature (Min. Operating) -10°C (14°F) -40°C
Environment Temperature (Max. Operating) 60°C (140°F) 70°C (158°F)
Environment Operating Temperature -10 ~ 60°C (14 ~ 140°F) -40 ~ 70°C (-40 ~ 158°F)
Environment Storage Temperature -20 ~ 80°C (-4 ~ 176°F) -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication Ethernet Standard IEEE 802.3, 802.3u, 802.3ab IEEE 802.3, 802.3u, 802.3ab
Ethernet Communication RJ-45 Port Number 2 2
Ethernet Communication RJ-45 Transmission Speed 10/100/1000 Mbps 10/100/1000 Mbps
Serial Communication Serial Port Number 16 16
Mechanism Dimensions (W x H x D) 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
Mechanism IP Rating IP30 IP30
Mechanism Weight 3.1 kg 3.1 kg
Power Power Consumption 5.6W 5.6W
Protection Reverse Polarity Present Present
Serial Communication RS-232 Yes Yes
Serial Communication RS-422 Yes Yes
Serial Communication RS-485 Yes Yes
Serial Communication Baud Rate 50 ~ 921.6 Kbps 50 ~ 921.6 Kbps
Serial Communication Serial Transmission Speed 50 ~ 921.6 Kbps 50 ~ 921.6 Kbps
Software Configuration Windows utility, Telnet console, Web Browser Windows utility, Telnet console, Web Browser
Software Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software Operation Mode Virtual COM, TCP/UDP server TCP/UDP client Virtual COM, TCP/UDP server TCP/UDP client
Warranty Warranty Period 5 years 5 years
