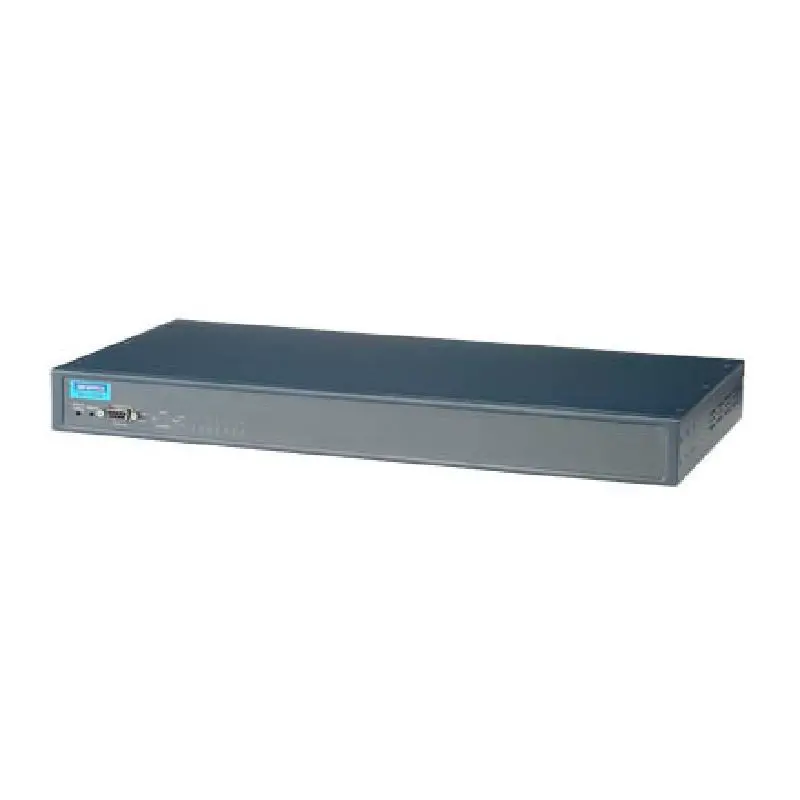

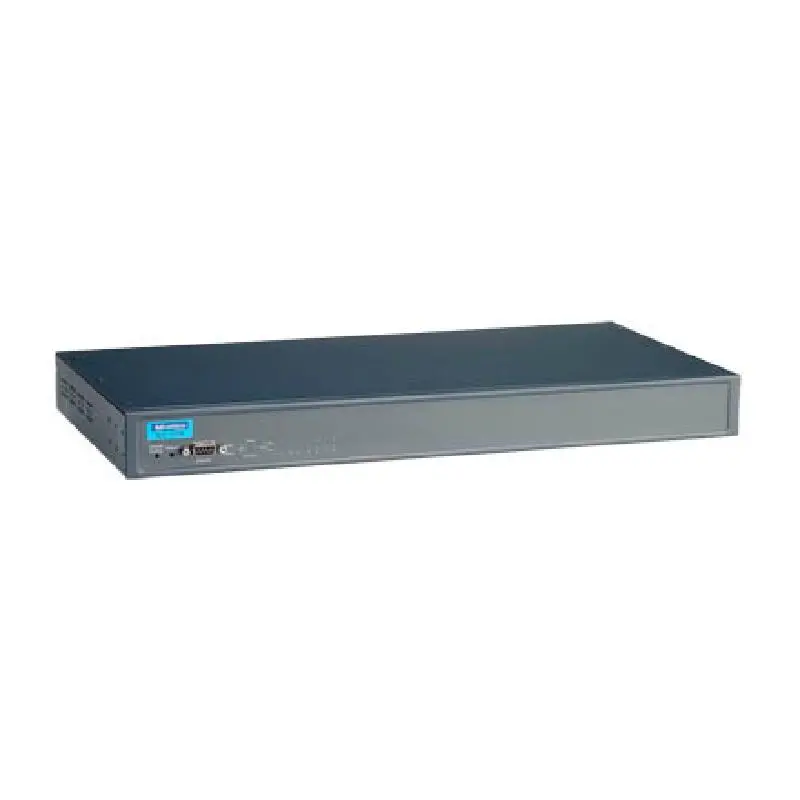

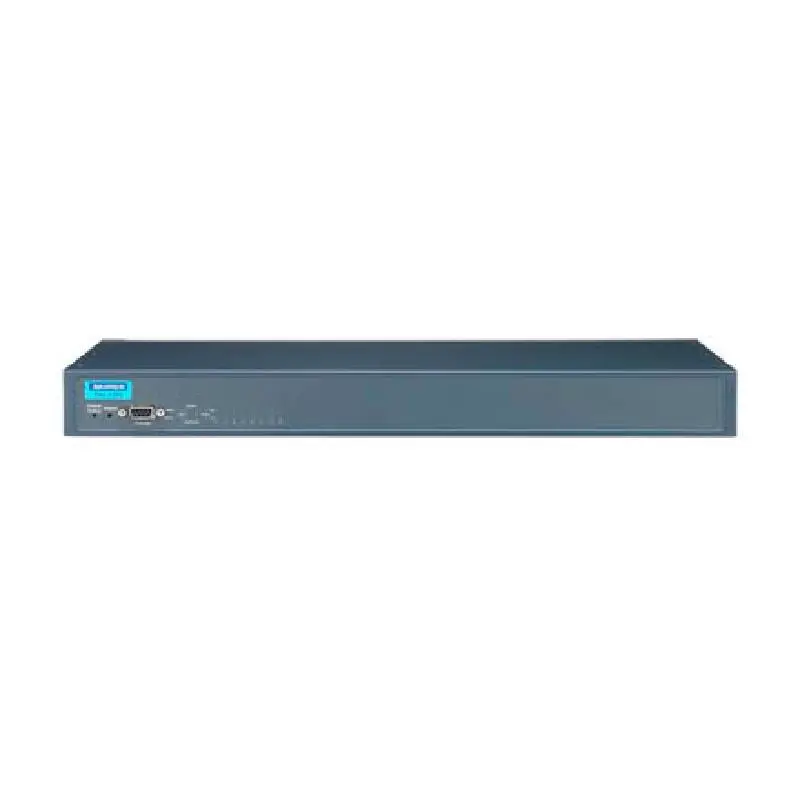

Advantech EKI-1528 8-Port Serial Device Server, AC Input, DB9, Rackmount

    Supports up to 976.5 kbps, and any baud rate setting

    Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy

    Provides COM port redirection (Virtual COM), TCP and UDP operation modes

    Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console

    Built-in 15 KV ESD protection for all serial signals

    8-port RS-232/422/485 serial communication

    SNMP MIB-II for network management

    Built-in buzzer for easy location

    Standard 1U rackmount size

    "I" models support a wide operating temperature

EKI-1528-CE EKI-1528I-CE
Certification EMC CE, FCC CE, FCC
Certification EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
Certification EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Certification Freefall IEC 60068-2-32 IEC 60068-2-32
Certification Safety UL 60950-1, UL 62368 UL 60950-1, UL 62368
Certification Vibration IEC 60068-2-6 IEC 60068-2-6
Ethernet Communication RJ-45 Port Connector Type RJ-45 RJ-45
Serial Communication Serial Port Connector Type DB9 DB9 male
Environment Temperature (Min. Operating) -10°C (14°F) -40°C
Environment Temperature (Max. Operating) 60°C (140°F) 70°C (158°F)
Environment Operating Temperature -10 ~ 60°C (14 ~ 140°F) -40 ~ 70°C (-40 ~ 158°F)
Environment Storage Temperature -20 ~ 80°C (-4 ~ 176°F) -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication Ethernet Standard IEEE 802.3, 802.3u, 802.3ab IEEE 802.3 , 802.3u
Ethernet Communication RJ-45 Port Number 2 2
Ethernet Communication RJ-45 Transmission Speed 10/100/1000 Mbps 10/100/1000 Mbps
Serial Communication Serial Port Number 8 8
Mechanism Dimensions (W x H x D) 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
Mechanism IP Rating IP30 IP30
Mechanism Weight 2.9 kg 2.9 kg
Power Power Consumption 5.6W 5.6W
Power Power Input (AC) 100 ~ 240 VAC 100 ~ 240 VAC
Power Power Operating Current 0.3A @ 110 VAC ;0.2A @ 220 VAC 0.3A @ 110 VAC ;0.2A @ 220 VAC
Protection Reverse Polarity Present Present
Serial Communication RS-232 Yes Yes
Serial Communication RS-422 Yes Yes
Serial Communication RS-485 Yes Yes
Serial Communication Baud Rate 50 ~ 921.6 Kbps 50 ~ 921.6 Kbps
Serial Communication Serial Transmission Speed 50 ~ 921.6 Kbps 50 ~ 921.6 Kbps
Software Configuration Windows utility, Telnet console, Web Browser Windows utility, Telnet console, Web Browser
Software Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software Operation Mode Virtual COM, TCP/UDP server TCP/UDP client COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,
Warranty Warranty Period 5 years 5 years
