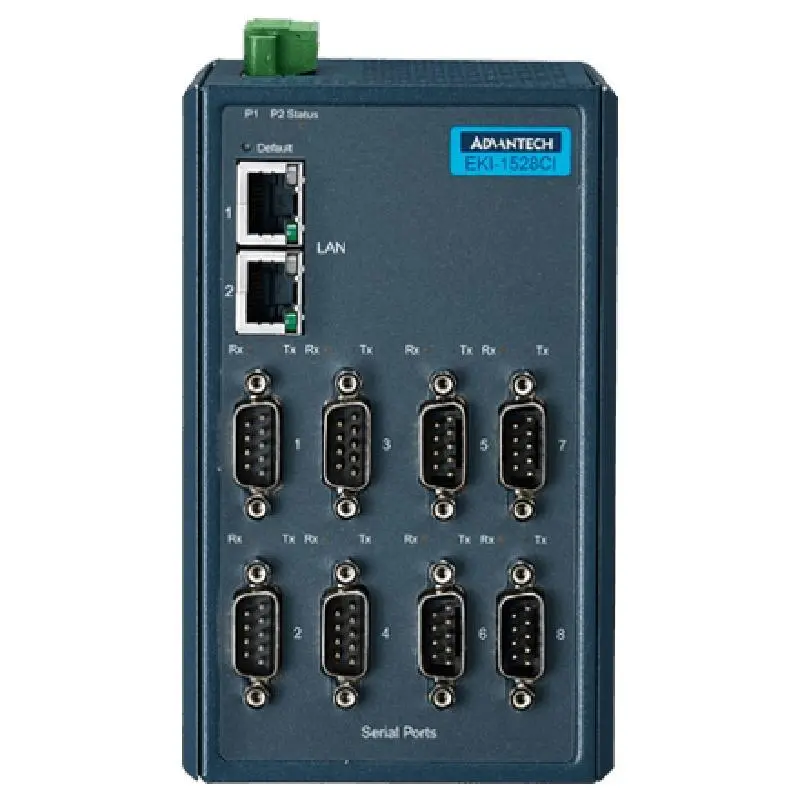

Advantech EKI-1528I-DR 8-port RS-232/422/485 Serial Device Server - Wide Temperature

    Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

    Provides COM port redirection (Virtual COM), TCP and UDP operation modes

    Supports up to 921.6 kbps, and any baud rate setting

    Allows a max. of 5 hosts to access one serial port

    Allows a max. of 16 hosts to be accessed as TCP client mode

    Built-in 15 KV ESD protection for all serial signals

    Provides rich configuration methods including Windows utility, Telnet console, and Web Browser

    Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux

    Automatic RS-485 data flow control

    Supports line to line 4 KV, line to ground 8 KV surge protection

EKI-1528I-DR-AE
Certification EMC CE, FCC
Certification EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification Freefall IEC 60068-2-32
Certification Safety UL 60950-1
Certification Shock IEC 60068-2-27
Certification Vibration IEC 60068-2-6
Ethernet Communication RJ-45 Port Connector Type RJ-45
Serial Communication Serial Port Connector Type DB9 male
Environment Operating Humidity 10~95% RH
Environment Temperature (Min. Operating) -40°C
Environment Temperature (Max. Operating) 70°C (158°F)
Environment Operating Temperature -40 ~ 70°C (-40 ~ 158°F)
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication Ethernet Standard IEEE 802.3 , 802.3u
Ethernet Communication RJ-45 Port Number 2
Ethernet Communication RJ-45 Transmission Speed 10/100 Mbps
Serial Communication Serial Port Number 8
Mechanism Dimensions (W x H x D) 86.6 x 140 x 104 mm (3.41 x 5.51 x 3.74 in.)
Mechanism IP Rating IP30
Mechanism Mounting (DIN-rail) Yes
Mechanism Mounting (Wall) Yes
Mechanism Weight 9 kg
Power Power Consumption 5.6W
Power Power Input (DC) 12 ~ 48 VDC
Power Power Operating Current 1A @ 24 VDC
Power Redundant Dual Inputs Yes
Protection Reverse Polarity Present
Serial Communication RS-422 Yes
Serial Communication RS-485 Yes
Serial Communication Baud Rate 50 ~ 921.6 Kbps
Protection Port to Port Isolation Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV
Serial Communication Serial Transmission Speed 50 ~ 921.6 Kbps
Software Configuration Windows utility, Telnet console, Web Browser
Software Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Software Operation Mode COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,
Warranty Warranty Period 5 years
