| EKI-1361-CE | ||
| Certification | EMC | EN 55032, EN 55024 |
| Certification | EMI | FCC Part 15 Subpart B (Class B) |
| Certification | EMS | EN 61000-6-1,EN 61000-6-3,EN 61000-4-2,EN 61000-4-3,EN 61000-4-4,EN 61000-4-5,EN 61000-4-6,EN 61000-4-8 |
| Environment | Relative Humidity | 10~95% RH |
| Environment | Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Environment | Storage Temperature | -40 ~ 80°C (-40 ~ 176°F) |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) |
| Mechanism | Enclosure (Metal) | Metal shell with solid mounting kits |
| Mechanism | IP Rating | IP30 |
| Mechanism | LED Indicator | System: Power, StatusWLAN: Quality, Link/ActiveLAN: Link/ActiveSerial: Tx, Rx |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 0.32 kg |
| Power | Power Consumption | Max. 2W |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Redundant Dual Inputs | Yes |
| Serial Communication | Baud Rate | 50 bps ~ 921.6 kbps, any baud rate setting |
| Serial Communication | Data Bits | 5, 6, 7, 8 |
| Serial Communication | Parity | None, Odd, Even, Space, Mark |
| Serial Communication | Serial Port Connector Type | DB9 male |
| Serial Communication | Serial Port Number | 1 |
| Serial Communication | RS-232 | Yes |
| Serial Communication | RS-422 | Yes |
| Serial Communication | RS-485 | Yes |
| Serial Communication | Serial Signals | RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND, RS-422: TxD+, TxD-, RxD+, RxD-, GND, RS-485: Data+, Data-, GND |
| Serial Communication | Stop Bits | 1, 1.5, 2 |
| Software | Configuration | Windows utility, Telnet console, Web Browser |
| Software | OS Support | 32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows Server2003/2008/2008 R2/2012/2012 R2 and Linux |
| Software | Protocols | ARP, ICMP, IPv4, IPv6, TCP, UDP, BOOTP, DHCP Client, AutoIP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP |
| Software | Reboot Trigger | Built-in WDT (watchdog timer) |
| Software | Utility Software | Advantech Serial Device Server Configuration Utility |
| Warranty | Warranty Period | 5 years |
| Wireless Communication | Wi-Fi 2.4 GHz | Yes |
| Wireless Communication | Wi-Fi 5 GHz | Yes |
| Wireless Communication | Wi-Fi Antenna Connector Type | Reverse SMA |
| Wireless Communication | Wi-Fi Antenna Number | 2 (support 2T2R) |
| Wireless Communication | Wi-Fi Free Space Range | Open space 100 m |
| Wireless Communication | Wi-Fi Network Mode | Infrastructure |
| Wireless Communication | Wi-Fi Operation Mode | Client modeCOM port redirection mode (Virtual COM)TCP/UDP server (polling) modeTCP/UDP client (event handling) mode |
| Wireless Communication | Wireless Security | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
| Wireless Communication | Wi-Fi Standard | IEEE 802.11 a/b/g/n |

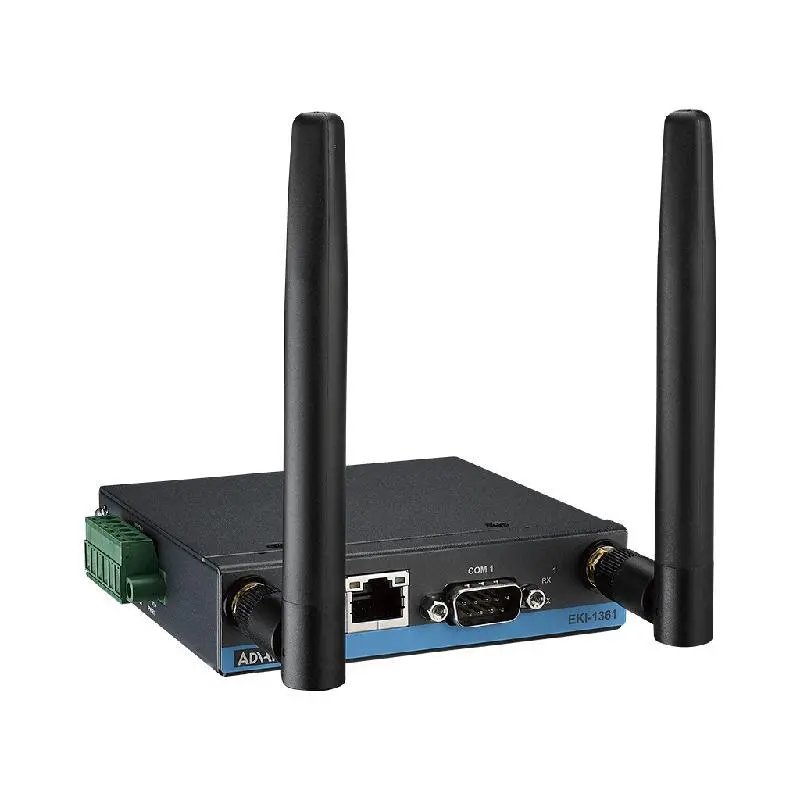

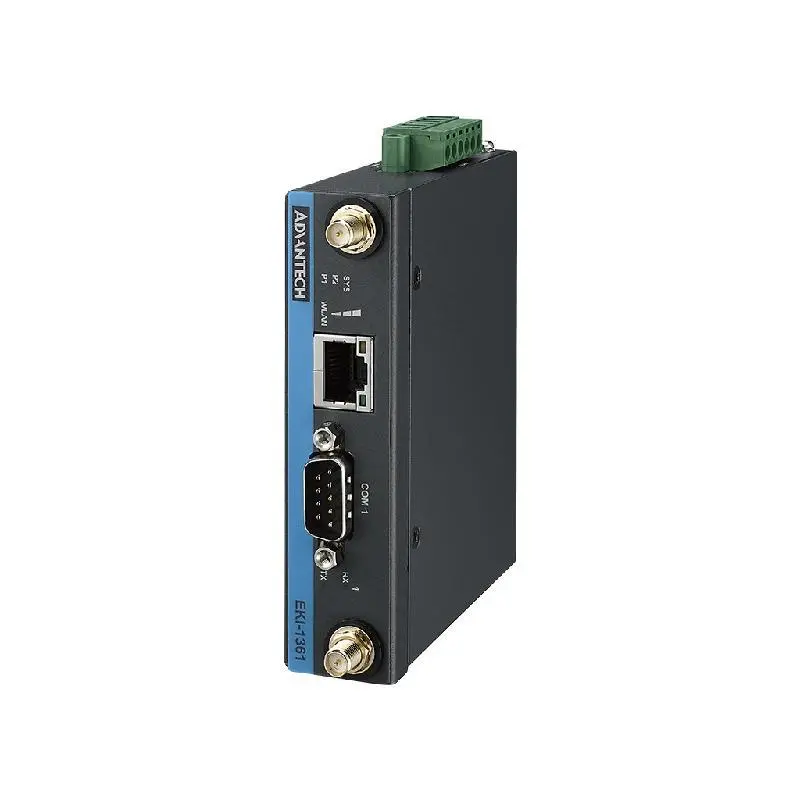

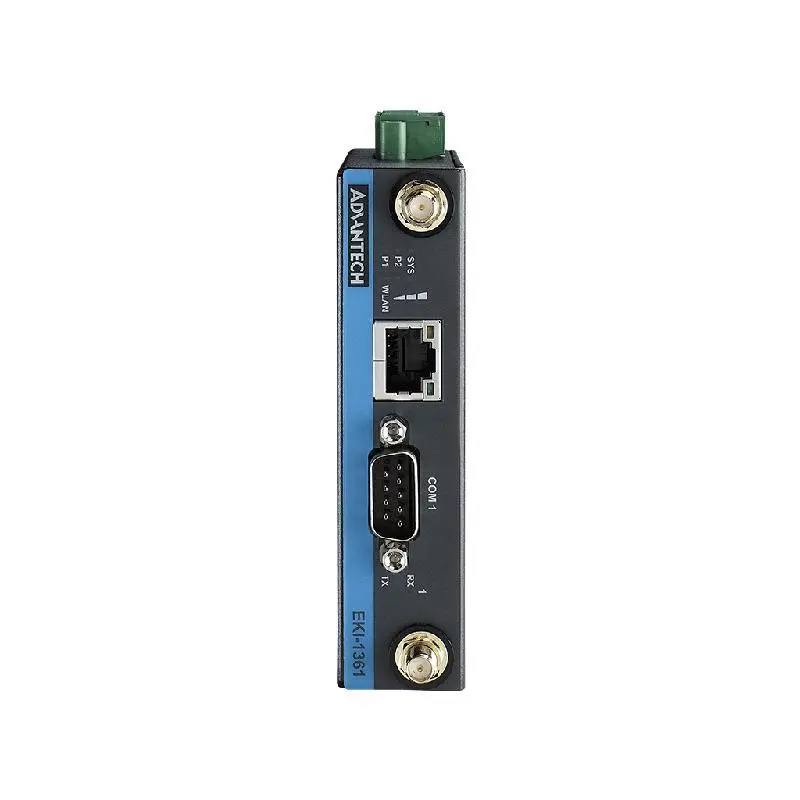

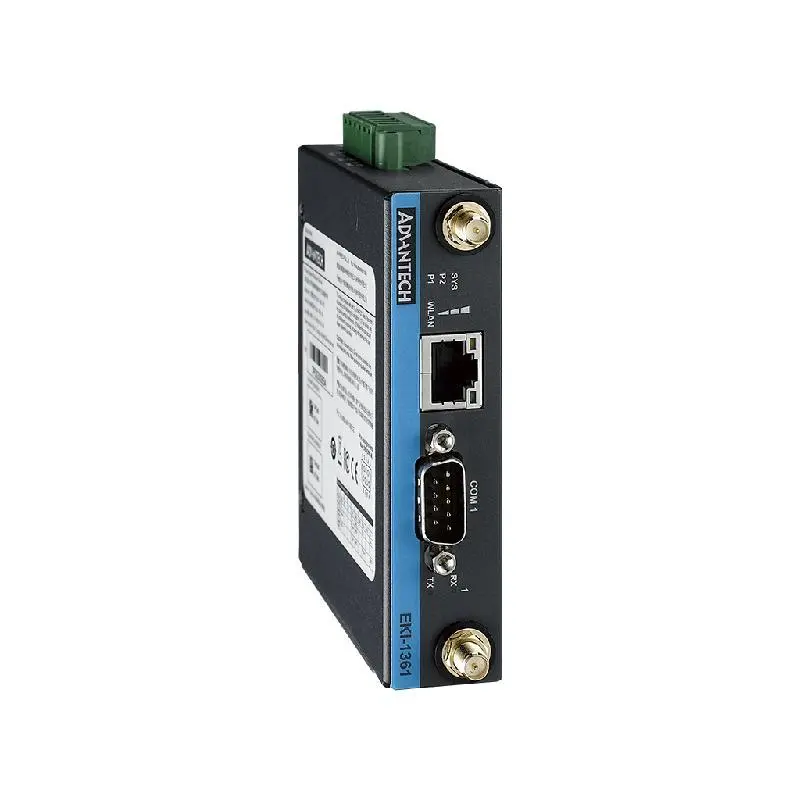

Advantech EKI-1361 1-port RS-232/422/485 to 802.11 a/b/g/n WLAN Serial Device Server
