| EKI-2525I-BE | EKI-2525I-BU | ||
| General | Ethernet Port Count | 5 | Taiwan |
| General | Mounting | DIN, Panel | |
| General | Power | 12-48VDC | |
| General | Technology | Ethernet | |
| General | Temperature | -40 to 75C | |
| General | Unmanaged | Yes | |
| Certification | EMI | CE, FCC Class A | |
| Certification | EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 | |
| Certification | Safety | UL/cUL 60950-1, Class I Division 2 | |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) | |
| Environment | Temperature (Max. Operating) | 75°C (167°F) | |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | |
| Ethernet Communication | RJ-45 Port Number | 5 | |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 | |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps | |
| Mechanism | Mounting (DIN-rail) | Yes | |
| Mechanism | Mounting (Wall) | Yes | |
| Mechanism | Dimensions (W x H x D) | 30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.) | |
| Mechanism | IP Rating | IP30 | |
| Mechanism | Weight | - | |
| PoE Information | Support PoE | No | |
| Power | Power Connector Type | 6-pin removable screw terminal | |
| Power | Power Consumption | 2.88W | |
| Power | Power Input (AC) | - | |
| Power | Power Input (DC) | 12 ~ 48 VDC | |
| Power | Redundant Dual Inputs | Yes | |
| Warranty | Warranty Period | 5 years | |
| Protection | Overload Current | Present | |
| Protection | Reverse Polarity | Present | |
| Place of Production | Place of production | China | |

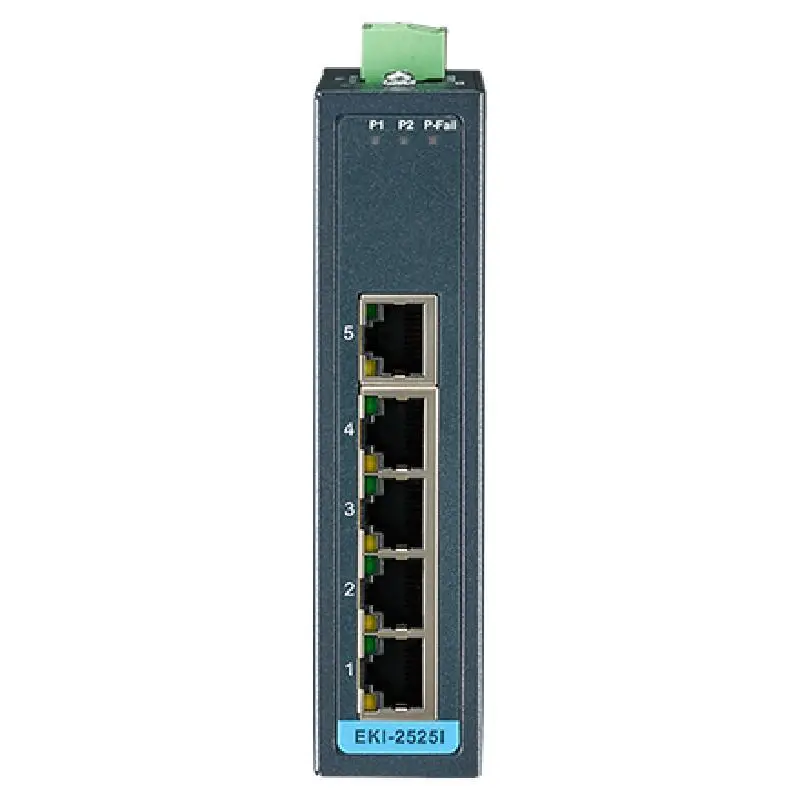

Advantech EKI-2525I 5FE Unmanaged Ethernet Switch, -40~75℃
