| EKI-2525I-LA-AE | ||
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | EN 60950, UL60950, Class 1 Division 2 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Dimensions (W x H x D) | 25 x 80 x 84 mm (0.98 x 3.15 x 3.31 in.) |
| Mechanism | IP Rating | IP40 |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 4-pin removable terminal (power) |
| Power | Power Consumption | 4.1W |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Redundant Dual Inputs | Yes |
| Place of Production | Place of production | Taiwan |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |
| Power | Power Input (AC) | 10~24 VAC |

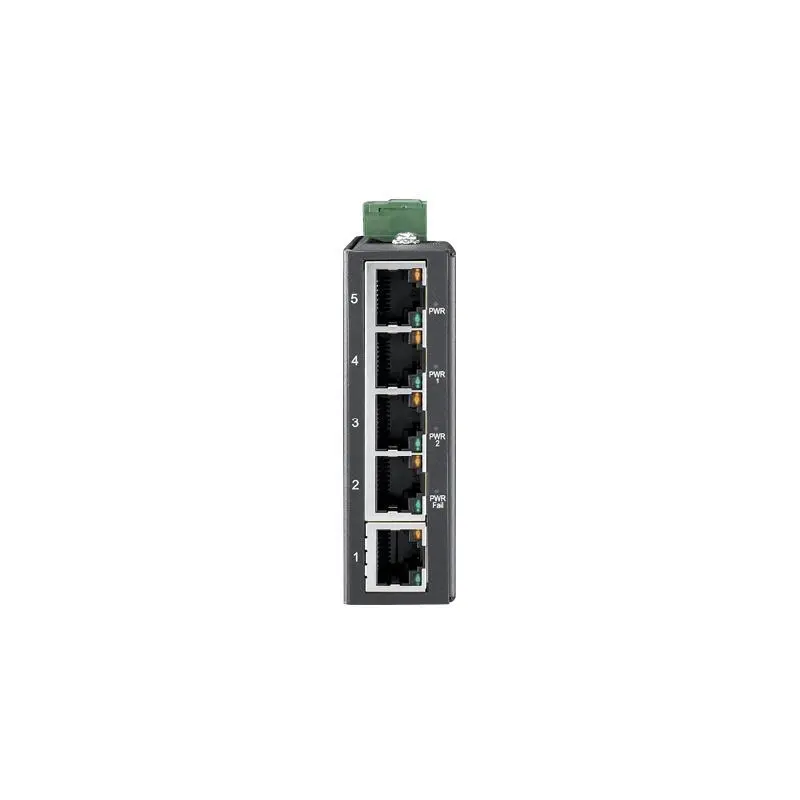

Advantech EKI-2525I-LA 5FE Slim-type Unmanaged Industrial Ethernet Switch with Low VAC Power Input, -40~75℃
