| EKI-2525LI-AE | ||
| Certification | EMI | EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | - |
| Ethernet Communication | Fiber Port Interface | - |
| Ethernet Communication | Fiber Port Connector Type | - |
| Ethernet Communication | Fiber Transmission Distance | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 25 x 80 x 84 mm (0.98 x 3.15 x 3.31 in.) |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP40 |
| Mechanism | Weight | 0.50 kg (1.1 lbs) |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 3.1W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Power Operating Current | 0.23A @ 24V |
| Power | Redundant Dual Inputs | Yes |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 2K |
| Switch Properties | Packet Buffer Size | 448Kbit (0.4375Mbits) |
| Switch Properties | Switch Fabric Speed | 1.0Gbps |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |

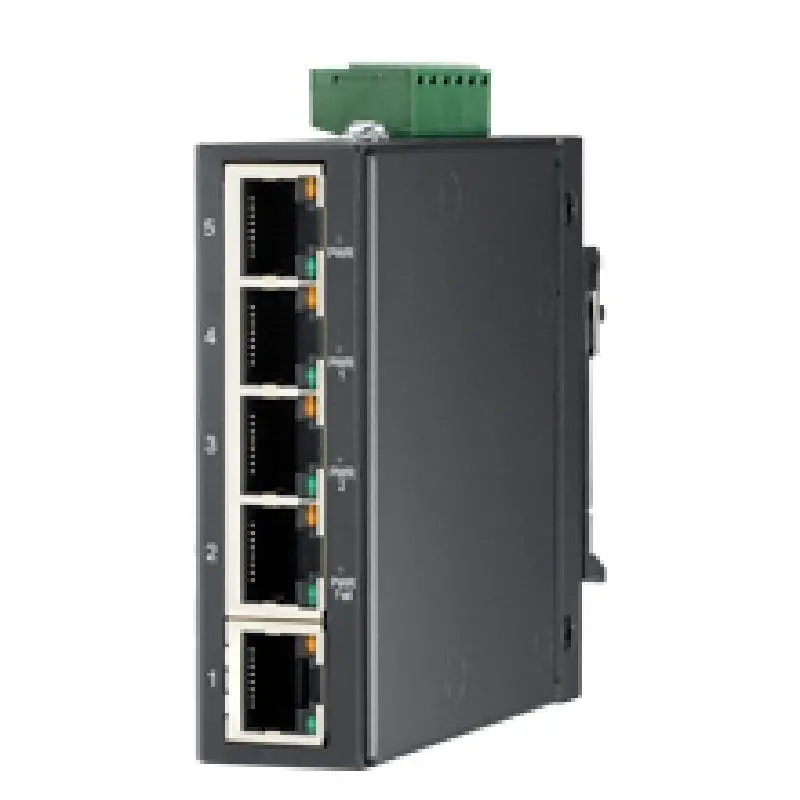

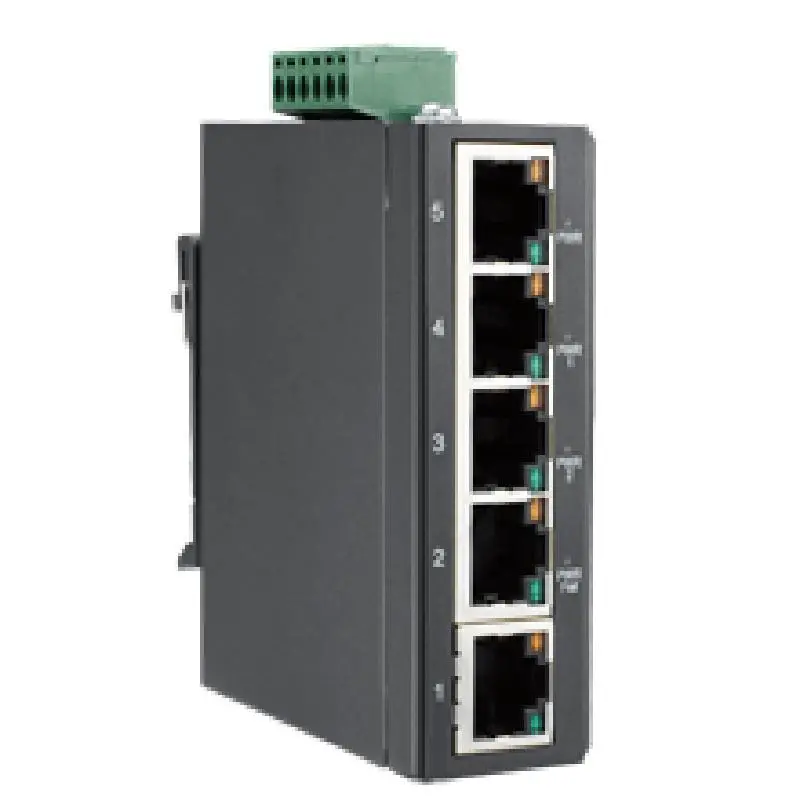

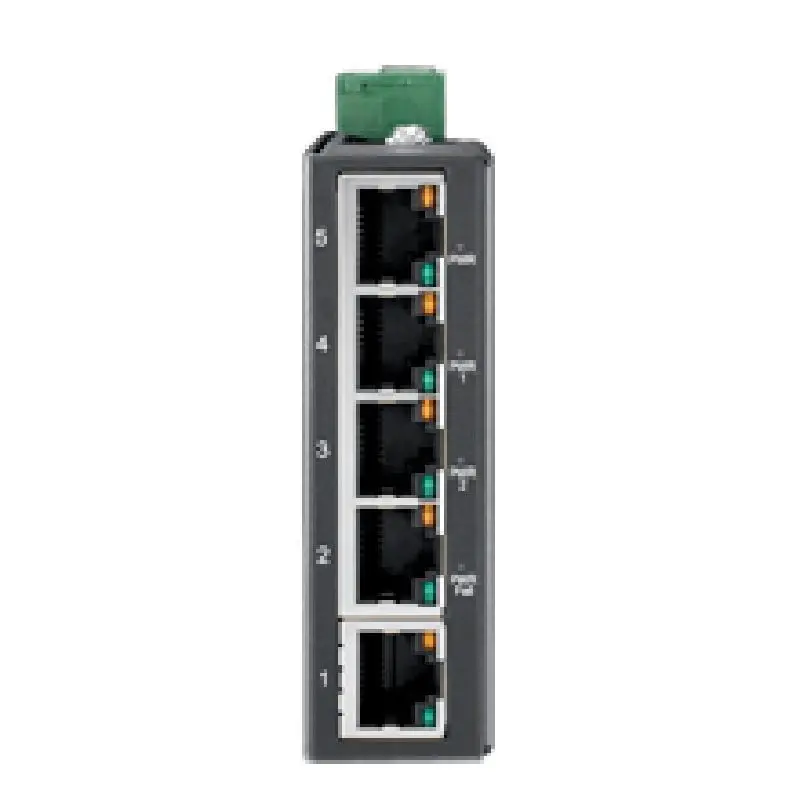

Advantech EKI-2525LI 5FE Slim type Unmanaged Industrial Ethernet Switch
