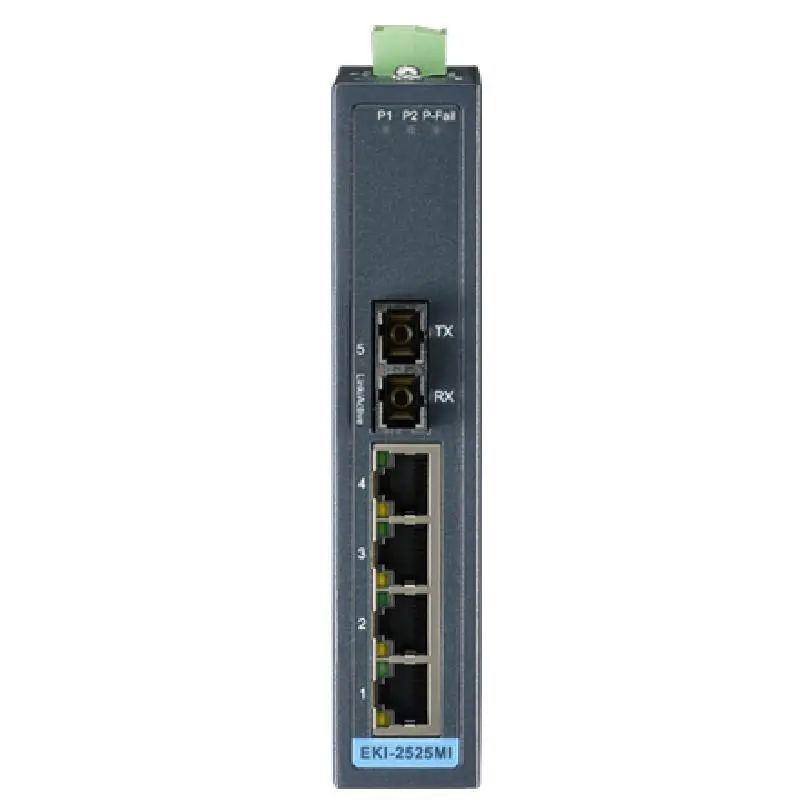

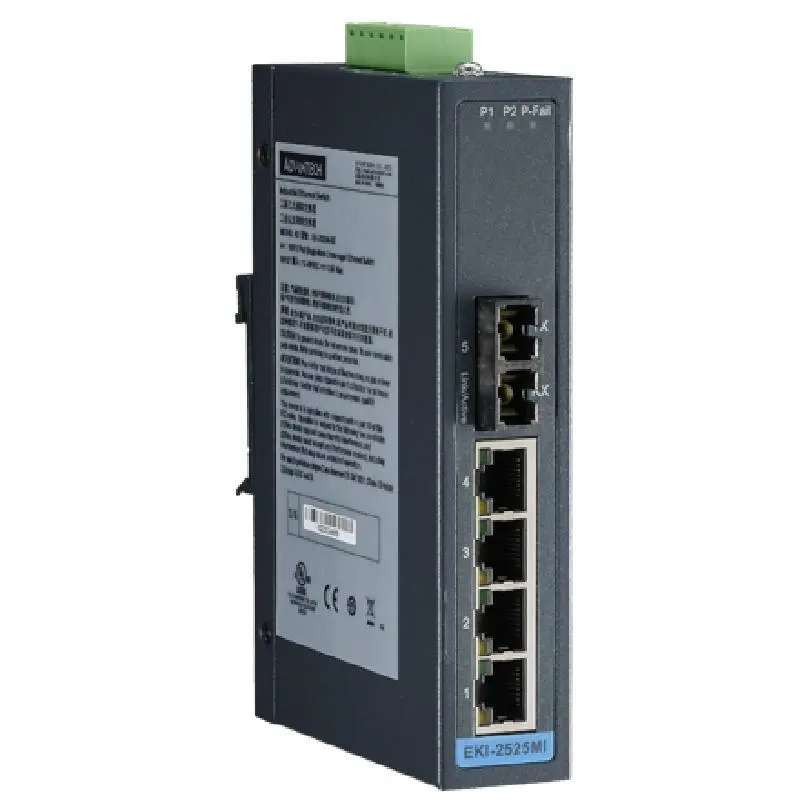

Advantech EKI-2525MI 4FE+1FE SC Multi-mode Unmanaged Ethernet Switch, -40~75℃

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector

Provides 1 x 100 Mbps Multi-mode SC type fiber optic port

Supports full/half duplex flow control

Supports MDI/MDI-X auto crossover

Provides redundant 12 ~ 48 VDC power input

Provides flexible mounting: DIN-rail and wall mount

		EKI-2525MI-BE
LAN Interface	Ethernet	10/100 Mbps
Ethernet Communication	RJ-45 Port Number	4
Ethernet Communication	Fiber Port Number	1
Ethernet Communication	Fiber Port Interface	Multi-Mode
Ethernet Communication	Fiber Transmission Distance	2 km
Environment	Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Interface	Port Number	5
Power	Power Consumption	5W
Power	Power Input (DC)	12 ~ 48 VDC
Certification	Safety	UL 60950-1
Certification	EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
Certification	EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Mechanism	Dimensions (W x H x D)	30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
Mechanism	Mounting	DIN-rail, Wall mount
