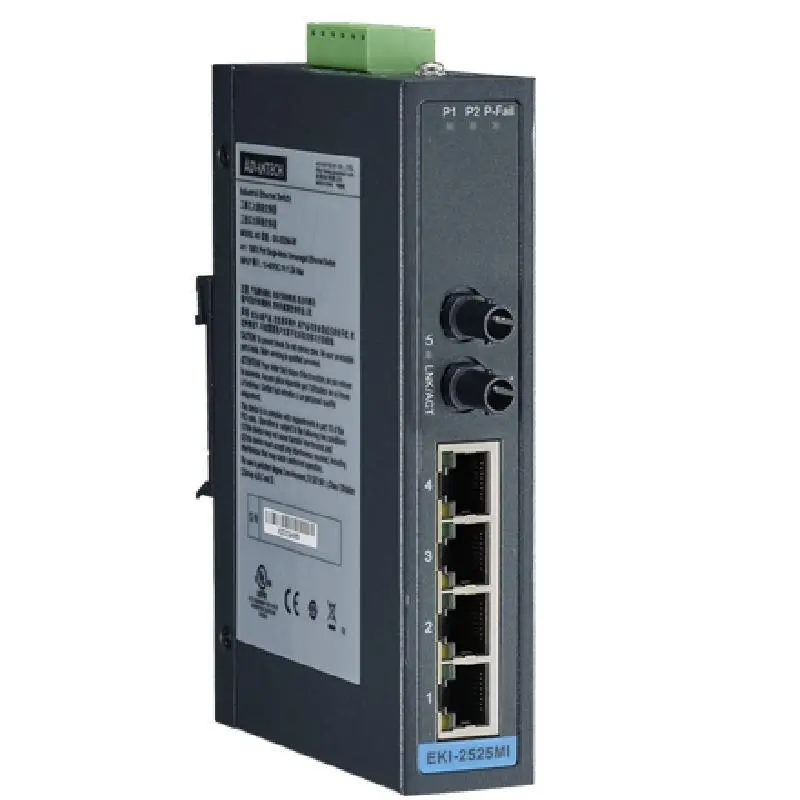

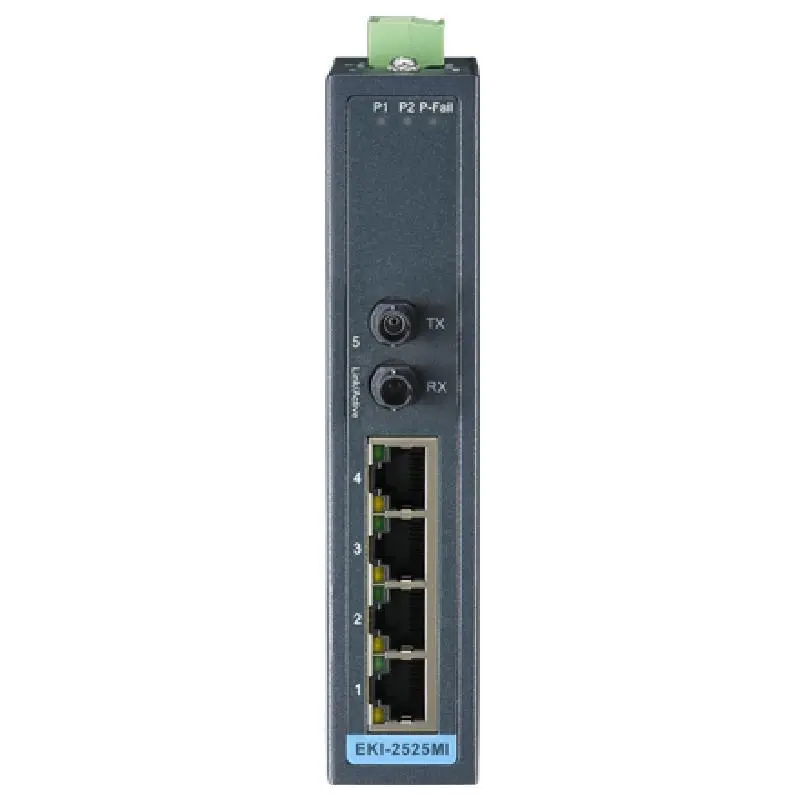

Advantech EKI-2525MI-ST 4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, -40~75℃

    Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector

    Provides 1 x 100 Mbps Multi-mode ST type fiber optic port

    Supports full/half duplex flow control

    Supports MDI/MDI-X auto crossover

    Provides redundant 12 ~ 48 VDC power input

    Provides flexible mounting: DIN-rail and wall mount

EKI-2525MI-ST-BE
Interface Port Number 5
LAN Interface Ethernet 10/100 Mbps
Ethernet Communication RJ-45 Port Number 4
Ethernet Communication Fiber Port Number 1
Ethernet Communication Fiber Port Interface Multi-Mode
Ethernet Communication Fiber Port Connector Type ST type
Ethernet Communication Fiber Transmission Distance 2 km
Ethernet Communication Ethernet Standard IEEE 802.3 , 802.3u , 802.3x
Ethernet Communication RJ-45 Transmission Speed 10/100 Mbps
Ethernet Communication Fiber Transmission Speed 100 Mbps
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Mechanism Dimensions (W x H x D) 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
