EKI-2528DI-AE | ||
General | Ethernet Port Count | 8 |
General | Mounting | DIN, Panel |
General | Power | 12-48VDC |
General | Technology | Ethernet |
General | Temperature | -40 to 75C |
General | Unmanaged | Yes |
Certification | EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A |
Certification | EMS | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4 |
Certification | Safety | DNVGL |
Environment | Temperature (Min. Operating) | -40°C (-40°F) |
Environment | Temperature (Max. Operating) | 75°C (167°F) |
Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
Ethernet Communication | Fiber Port Number | - |
Ethernet Communication | Fiber Port Interface | - |
Ethernet Communication | Fiber Port Connector Type | - |
Ethernet Communication | Fiber Transmission Distance | - |
Ethernet Communication | Fiber Transmission Speed | - |
Ethernet Communication | RJ-45 Port Number | 8 |
Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
Ethernet Communication | RJ-45 Transmission Distance | 100 m |
Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
Mechanism | Mounting (DIN-rail) | Yes |
Mechanism | Mounting (Stack) | - |
Mechanism | Mounting (Panel) | - |
Mechanism | Mounting (Wall) | Yes |
Mechanism | Mounting (Rack Mount) | - |
Mechanism | Mounting (Pole Mount) | - |
Mechanism | Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) |
Mechanism | Enclosure (Plastic) | - |
Mechanism | IP Rating | IP30 |
PoE Information | PoE Port Number | - |
PoE Information | PoE Budget | - |
PoE Information | PoE Output | - |
PoE Information | Support PoE | No |
Power | Power Connector Type | 6-pin removable screw terminal |
Power | Power Consumption | 3.93W |
Power | Power Input (AC) | - |
Power | Power Input (DC) | 12 ~ 48 VDC, Marine 24VDC |
Power | Power Input (PoE) | - |
Power | Power Input (Battery) | - |
Power | Redundant Dual Inputs | Yes |
Warranty | Warranty Period | 5 years |
Protection | Overload Current | Present |
Protection | Reverse Polarity | Present |

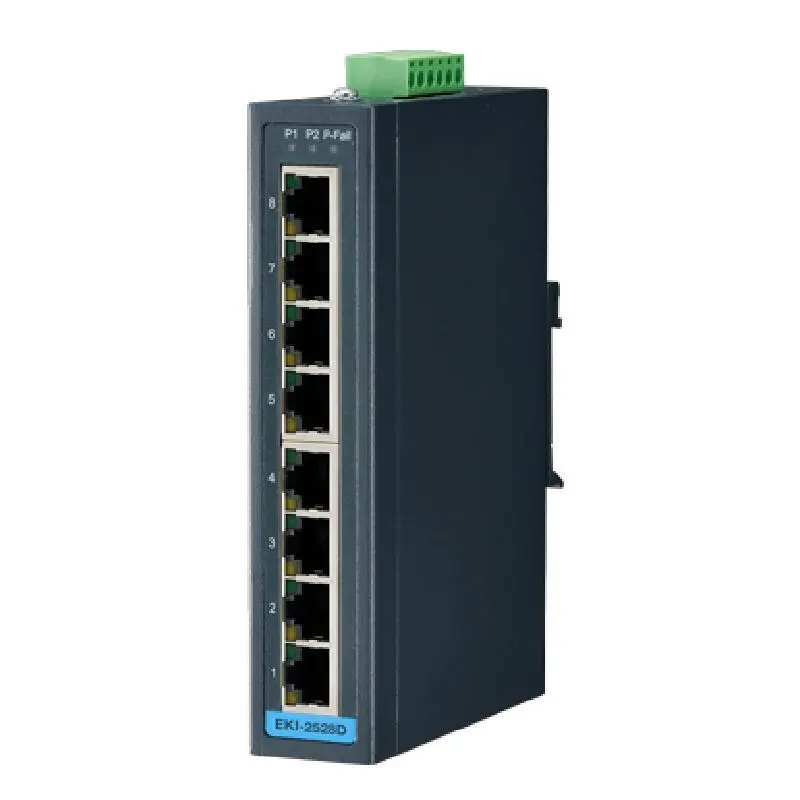

Advantech EKI-2528DI 8FE Unmanaged Ethernet Switch, -40~75℃
