| EKI-2710E-2CI-A | ||
| Certification | EMI | CE, FCC Class A, BSMI |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Certification | Safety | UL 62368 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -45 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | 2 (combo) |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | RJ-45 Port Number | 8 + 2 (combo) |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |

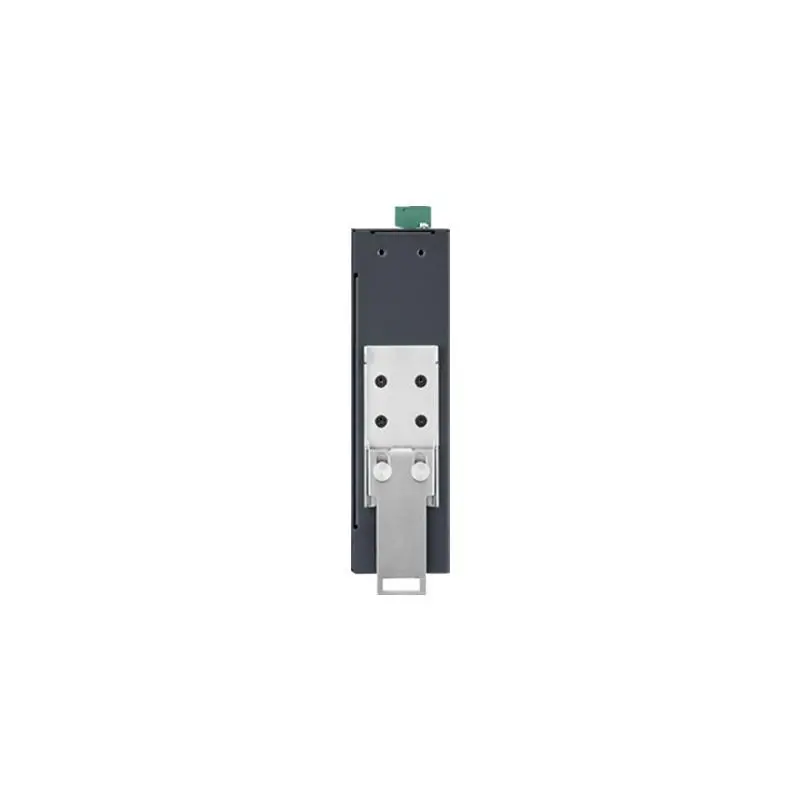

| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 40 X 140 X 105 mm |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | 0.58 kg (1.3 lb) |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |

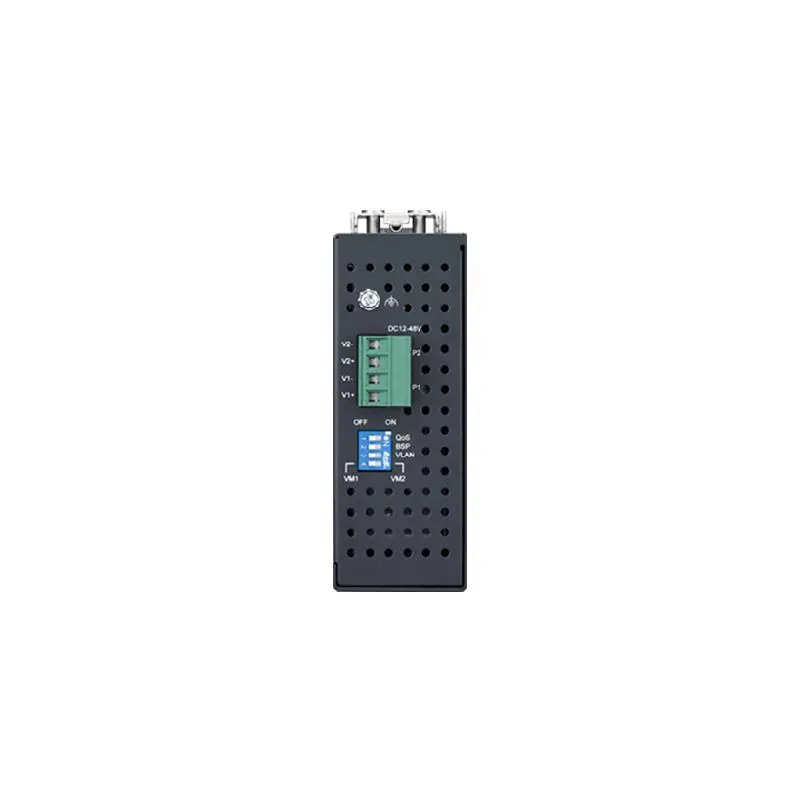

| Power | Power Connector Type | 4-pin removable terminal (power) |
| Power | Power Consumption | 5.8W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 12 ~ 48 VDC, redundant dual inputs |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Power Operating Current | 0.4A @ 12 V |
| Power | Redundant Dual Inputs | Yes |
| Switch Properties | Jumbo Frame | 16K byets |
| Switch Properties | MAC Table Size | 4096 |
| Switch Properties | Packet Buffer Size | 2M bit |
| Switch Properties | Switch Fabric Speed | 5.6Gbps |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |

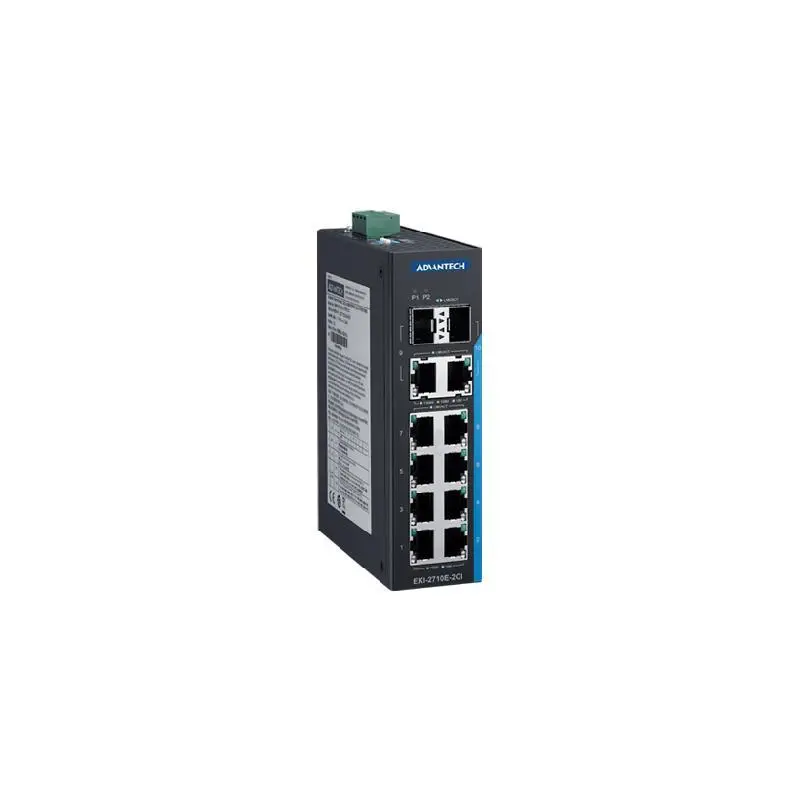

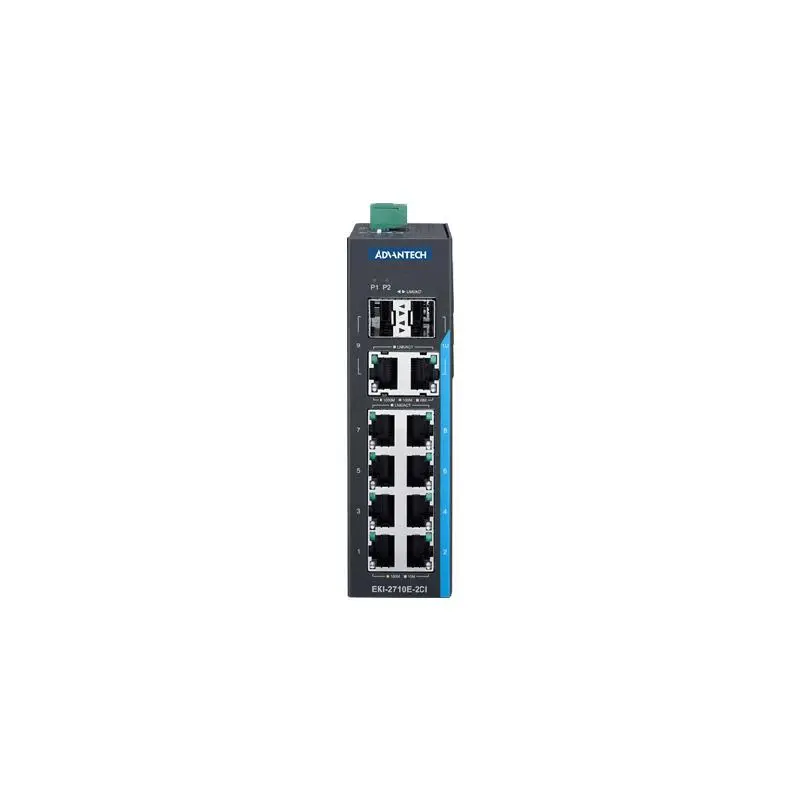

Advantech EKI-2710E-2CI 8FE + 2GE Combo Fast Ethernet Unmanaged Switch
