| EKI-2712G-4FPI-AE | ||
| General | Ethernet Port Count | 12 |
| General | Mounting | DIN |
| General | Power | 48VDC |
| Certification | EMI | CE, FCC Class A |
| General | Temperature | -40 to 75C |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN50121-4 |
| General | Unmanaged | Yes |
| Certification | Safety | UL 61010, NEMA TS2 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | Fiber Transmission Speed | 100/1000 Mbps |
| Ethernet Communication | RJ-45 Port Number | 8 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | - |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | 1.1 kg |
| PoE Information | PoE Port Number | 8 |
| PoE Information | PoE Budget | 240W |
| PoE Information | PoE Output | 30W/ port |
| PoE Information | Support PoE | Yes |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 12.1W (system) |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 46 ~ 57 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Power Operating Current | 0.25A @ 48VDC (system) |
| Power | Redundant Dual Inputs | Yes |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 24Gbps |
| Warranty | Warranty Period | 5 years |

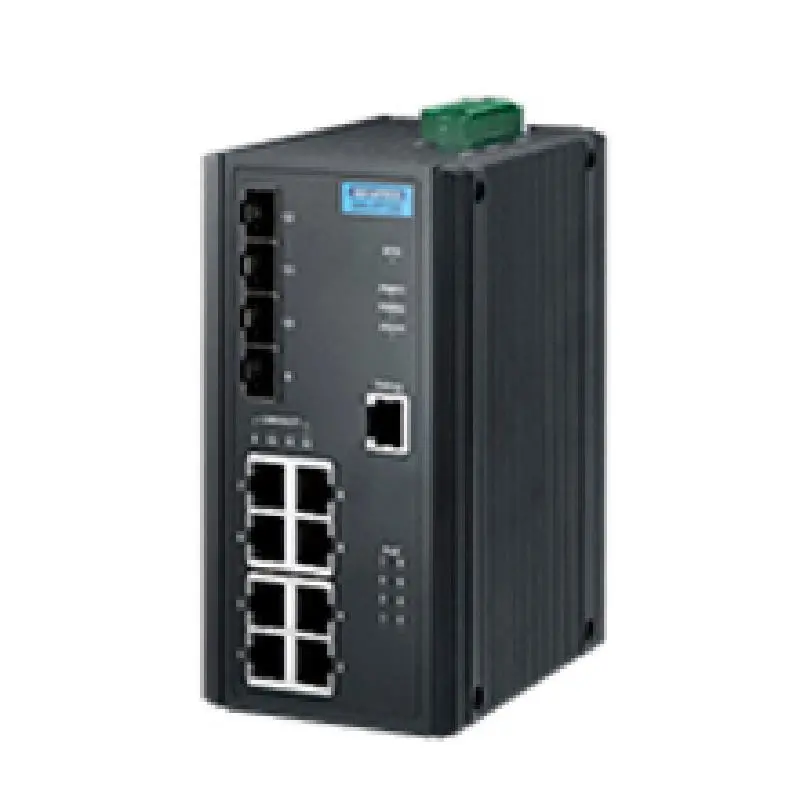

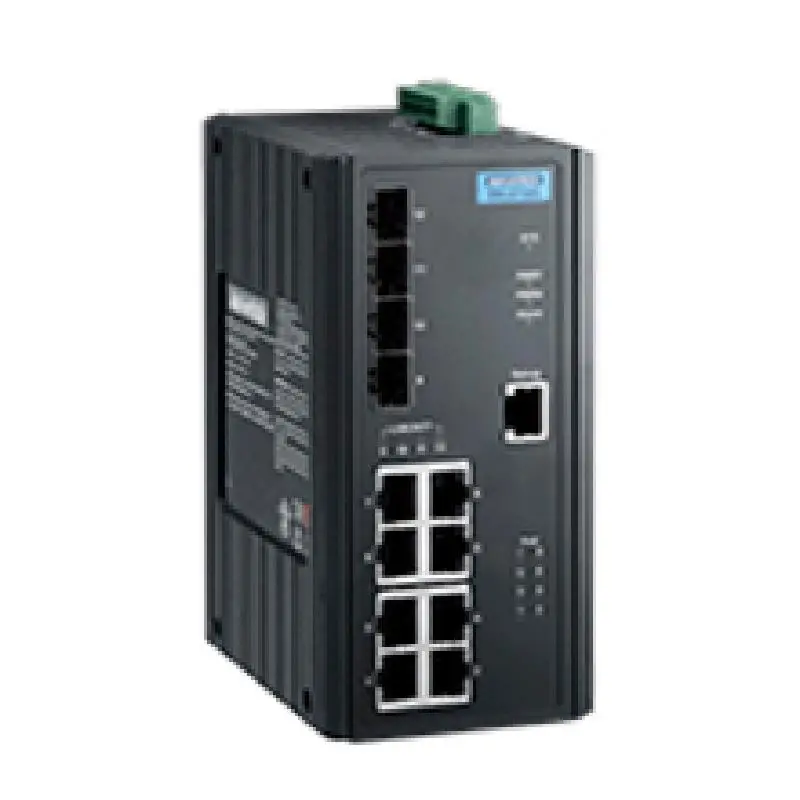

Advantech EKI-2712G-4FPI 8GE+4G SFP Port Gigabit Unmanaged PoE Switch
