| EKI-2720G-4F-AE | EKI-2720G-4FI-AE | ||
| Certification | EMI | CE, FCC Class A | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN50121-4 | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN50121-4 |
| Certification | Safety | UL 61010, NEMA TS2 | UL 61010, NEMA TS2 |
| Environment | Temperature (Min. Operating) | -10°C (14°F) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) | 75°C (167°F) |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | 4 | 4 |
| Ethernet Communication | Fiber Port Interface | SFP | SFP |
| Ethernet Communication | Fiber Port Connector Type | SFP cage | SFP cage |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km | Up to 110 km |
| Ethernet Communication | Fiber Transmission Speed | 100/1000 Mbps | 100/1000 Mbps |
| Ethernet Communication | RJ-45 Port Number | 16 | 16 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes | Yes |
| Mechanism | Mounting (Stack) | - | - |
| Mechanism | Mounting (Panel) | - | - |
| Mechanism | Mounting (Wall) | - | - |
| Mechanism | Mounting (Rack Mount) | - | - |
| Mechanism | Mounting (Pole Mount) | - | - |
| Mechanism | Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| Mechanism | Enclosure (Plastic) | - | - |
| Mechanism | IP Rating | IP30 | IP30 |
| Mechanism | Weight | 1.1 kg | 1.1 kg |
| PoE Information | PoE Port Number | - | - |
| PoE Information | PoE Budget | - | - |
| PoE Information | PoE Output | - | - |
| PoE Information | Support PoE | No | No |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 15W | 15W |
| Power | Power Input (AC) | - | - |
| Power | Power Input (DC) | 12 ~ 48 VDC | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - | - |
| Power | Power Input (Battery) | - | - |
| Power | Power Operating Current | 0.25A @ 48VDC (system) | 0.25A @ 48VDC (system) |
| Power | Redundant Dual Inputs | Yes | Yes |
| Switch Properties | Jumbo Frame | 9,216 bytes | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 40Gbps | 40Gbps |
| Warranty | Warranty Period | 5 years | 5 years |

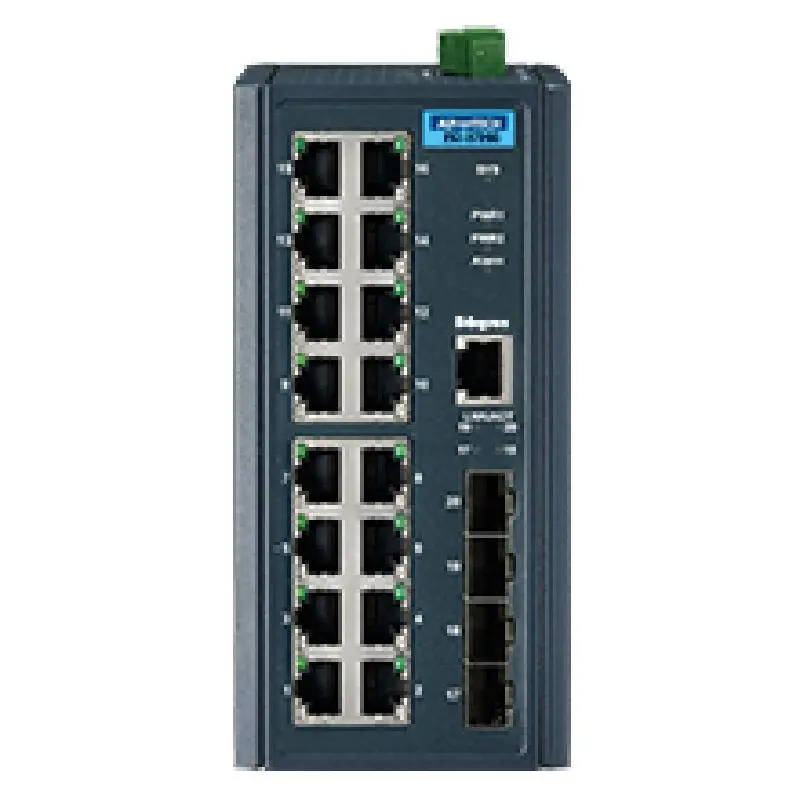

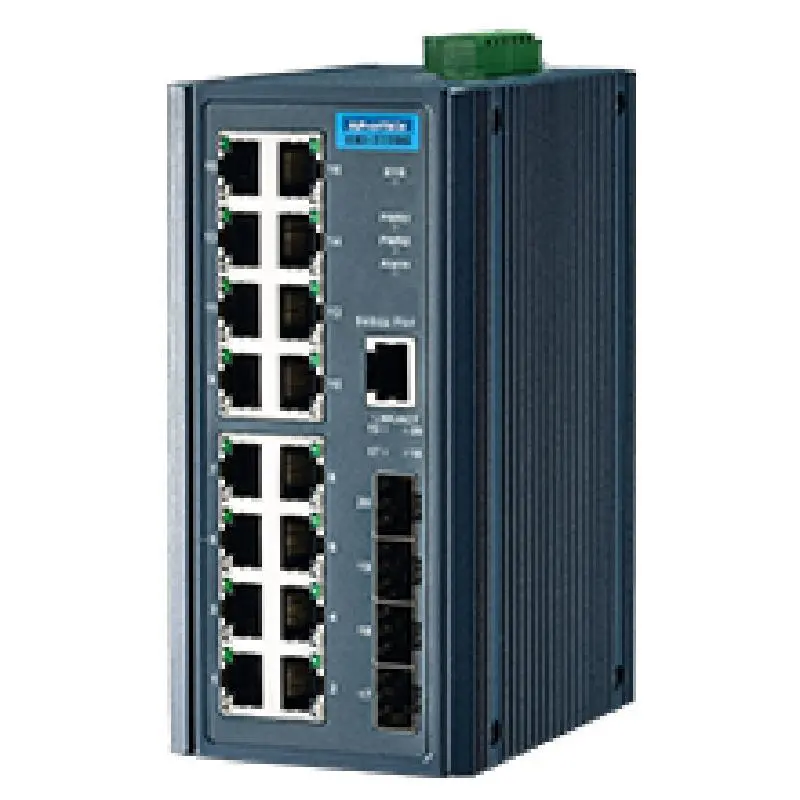

Advantech EKI-2720G 16GE+4SFP Port Gigabit Unmanaged Industrial Switch
