| EKI-2725I-CE | ||
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | UL 60950-1 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Number | - |
| Ethernet Communication | Fiber Port Interface | - |
| Ethernet Communication | Fiber Port Connector Type | - |
| Ethernet Communication | Fiber Transmission Distance | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power | Power Consumption | Max 2.5W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Redundant Dual Inputs | Yes |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |

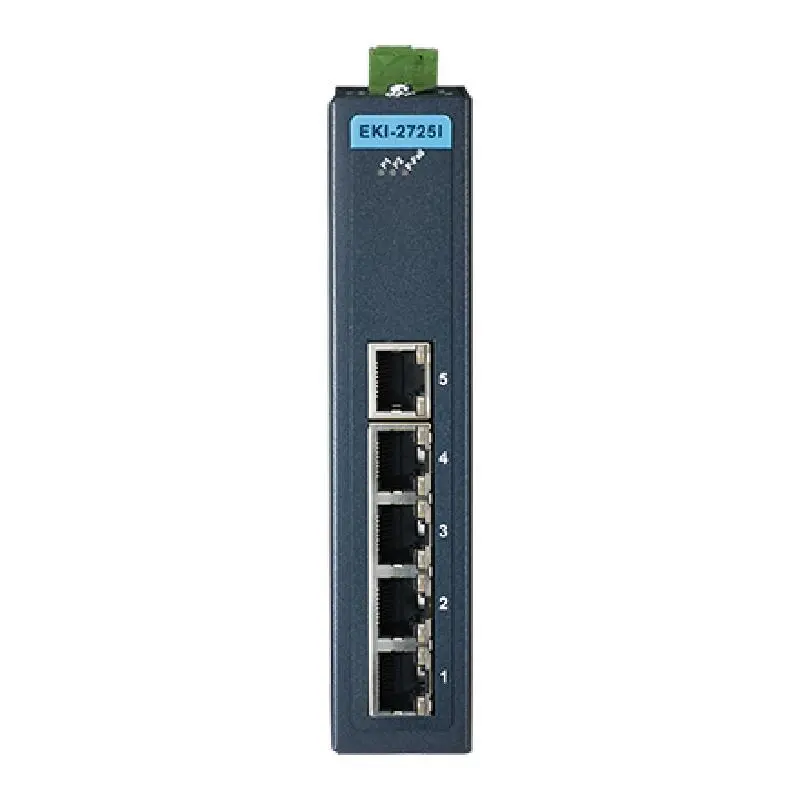

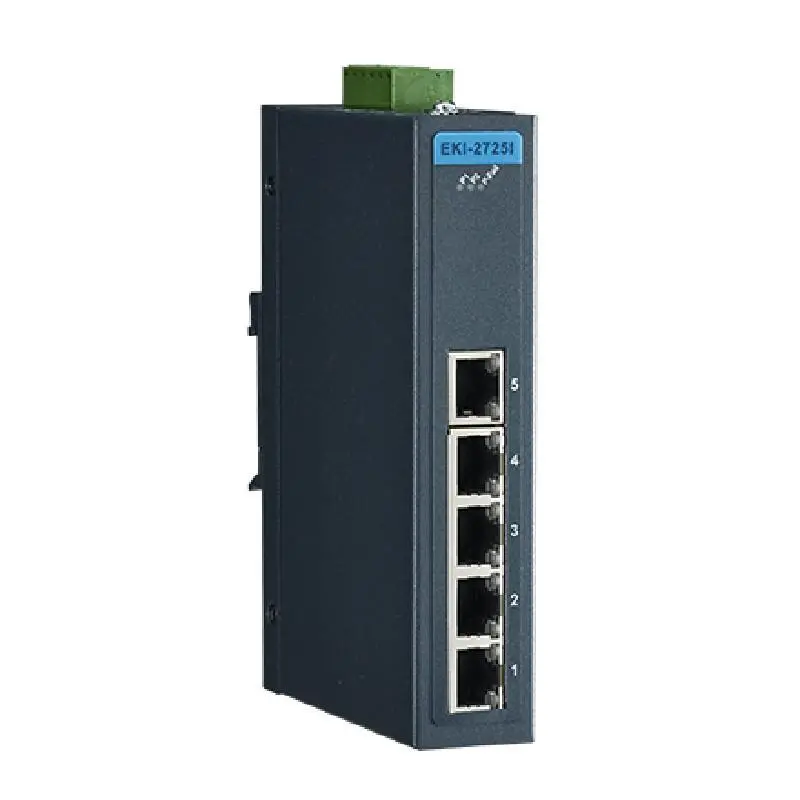

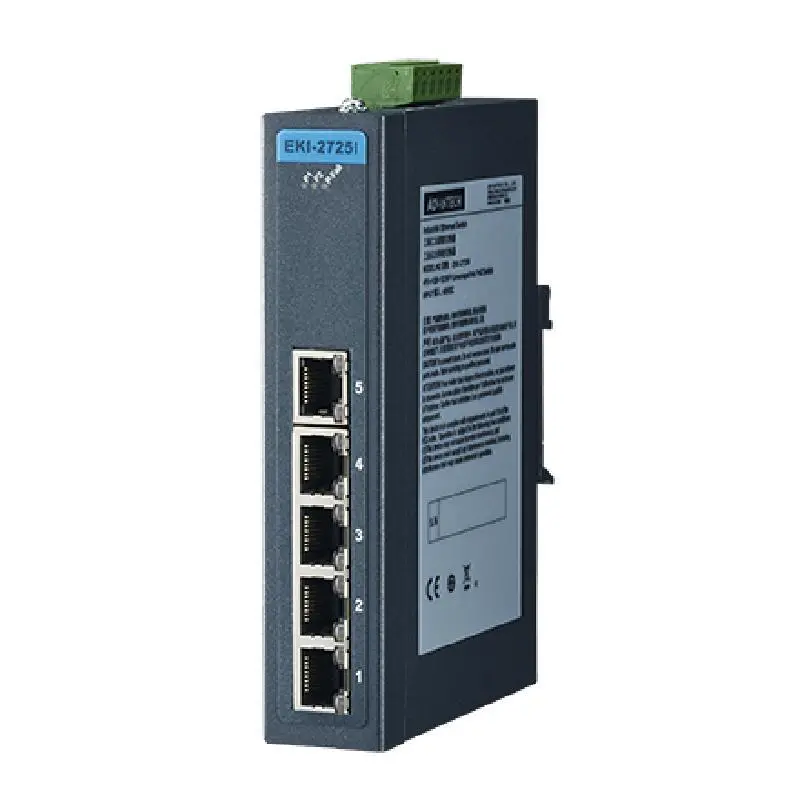

Advantech EKI-2725I 5GE Unmanaged Ethernet Switch, -40~75℃
