| EKI-2728-D | ||
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | UL 62368 |
| Environment | Temperature (Min. Operating) | -10°C (14°F) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45 Port Number | 8 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | IP Rating | IP30 |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power | Power Consumption | Max. 3.9W |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Redundant Dual Inputs | Yes |
| Warranty | Warranty Period | 5 years |
| Protection | Overload Current | Present |
| Protection | Reverse Polarity | Present |

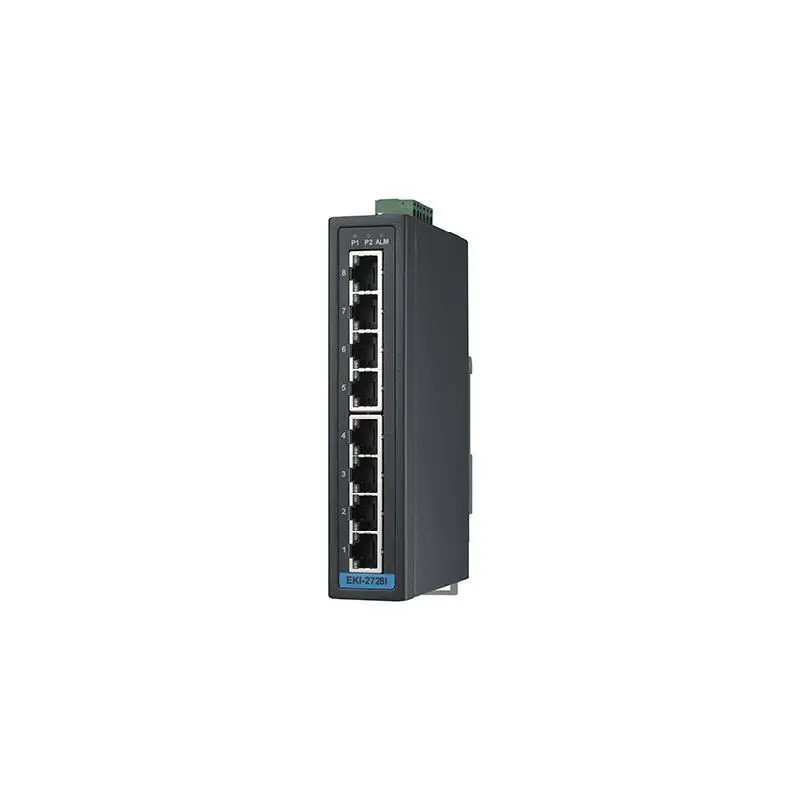

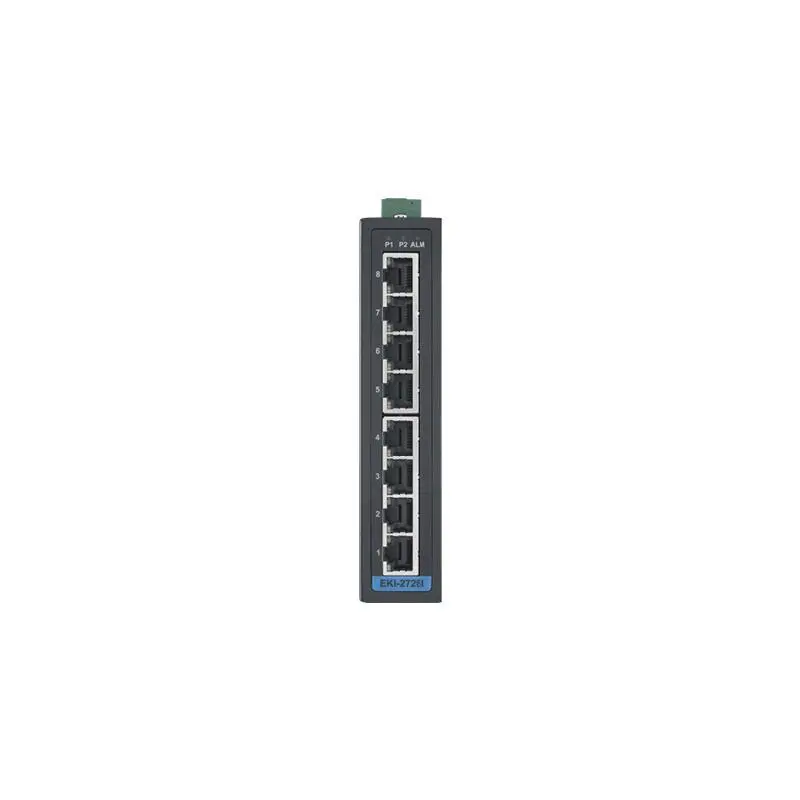

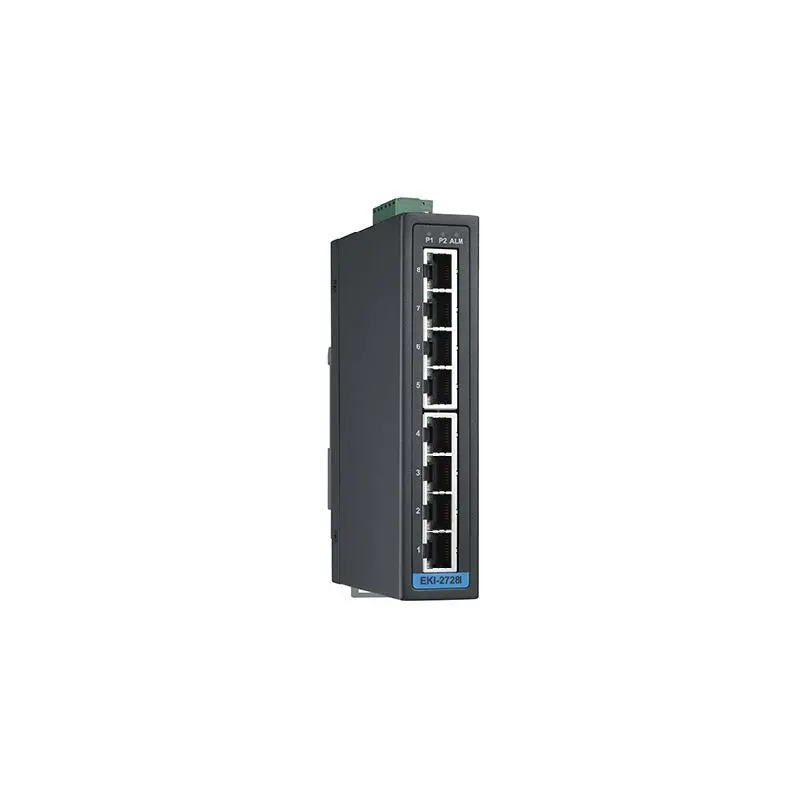

Advantech EKI-2728 8GE Unmanaged Ethernet Switch
