| EKI-5726I-AE | EKI-5726NI-A | ||
| Certification | EMI | CE, FCC | CE, FCC |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Certification | Safety | UL508, Class 1 Division 2, ATEX | LVD 62368-1 |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) | -40°C (-40°F) |
| Environment | Temperature (Max. Operating) | 75°C (167°F) | 75°C (167°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Interface | Port Number | 16 | 16 |
| Ethernet Communication | RJ-45 Port Connector Type | 16 x RJ-45 (Ethernet) | 16 x RJ-45 (Ethernet) |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Mechanism | Dimensions (W x H x D) | 74 x 120 x 84 mm | 74 x 120 x 84 mm |
| Mechanism | IP Rating | IP30 | IP30 |
| Mechanism | Weight | 1.2 kg | 0.86 kg (1.9 lbs) |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 8W | 8W |
| Power | Power Input (DC) | 12 ~ 48 VDC | 12 ~ 48 VDC |
| Power | Power Operating Current | 0.36A @ 24V | 0.36A @ 24V |
| Switch Properties | Jumbo Frame | 9,216 bytes | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 32Gbps | 32Gbps |
| Warranty | Warranty Period | 5 years | 5 years |
| Protection | Overload Current | Present | Present |
| Protection | Reverse Polarity | Present | Present |

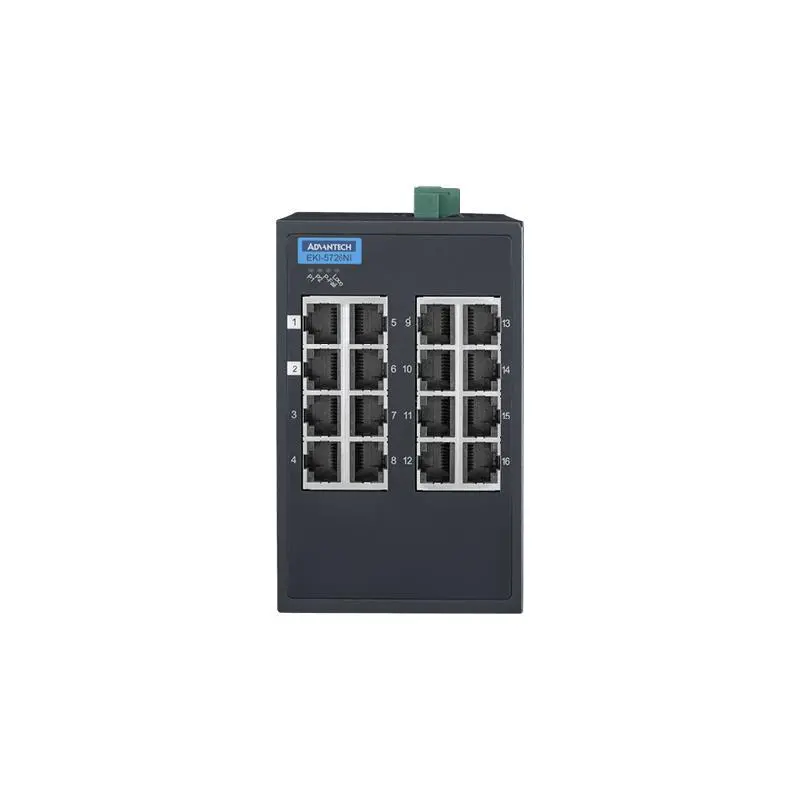

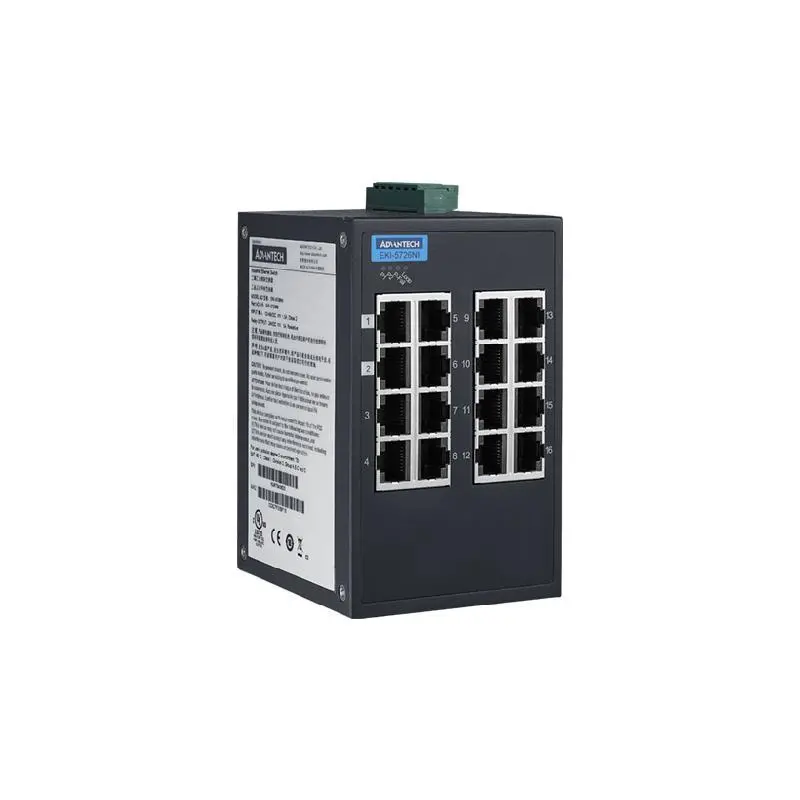

Advantech EKI-5726NI 16 port Gigabit Ethernet Switch
