| ADAM-6520L-AE | ||
| General | Ethernet Port Count | 5 |
| General | Mounting | DIN, Panel |
| General | Power | 10-30VDC |
| General | Technology | Ethernet |
| General | Temperature | 0 to 60C |
| General | Unmanaged | Yes |
| Certification | EMI | CE, FCC |
| Certification | EMS | - |
| Certification | Safety | UL/cUL 60950-1 |
| Environment | Temperature (Min. Operating) | 0°C (32°F) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Operating Temperature | 0 ~ 60°C (32 ~ 140°F), Stack: 0 ~ 50°C (32 ~ 122°F) |
| Environment | Storage Temperature | -10 ~ 70°C (-14 ~ 158°F) |
| Ethernet Communication | Fiber Port Number | - |
| Ethernet Communication | Fiber Port Interface | - |
| Ethernet Communication | Fiber Port Connector Type | - |
| Ethernet Communication | Fiber Transmission Distance | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | Yes |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 70 x 112 x 27 mm |
| Mechanism | Enclosure (Metal) | - |
| Mechanism | Enclosure (Plastic) | Yes |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | - |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 2-pin removable screw terminal |
| Power | Power Consumption | 3W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 1 x Unregulated 10 ~ 30 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Power Operating Current | - |
| Switch Properties | Jumbo Frame | - |
| Switch Properties | MAC Table Size | - |
| Switch Properties | Packet Buffer Size | - |
| Switch Properties | Switch Fabric Speed | - |
| Warranty | Warranty Period | 2 years |
| Protection | Overload Current | - |
| Protection | Reverse Polarity | - |

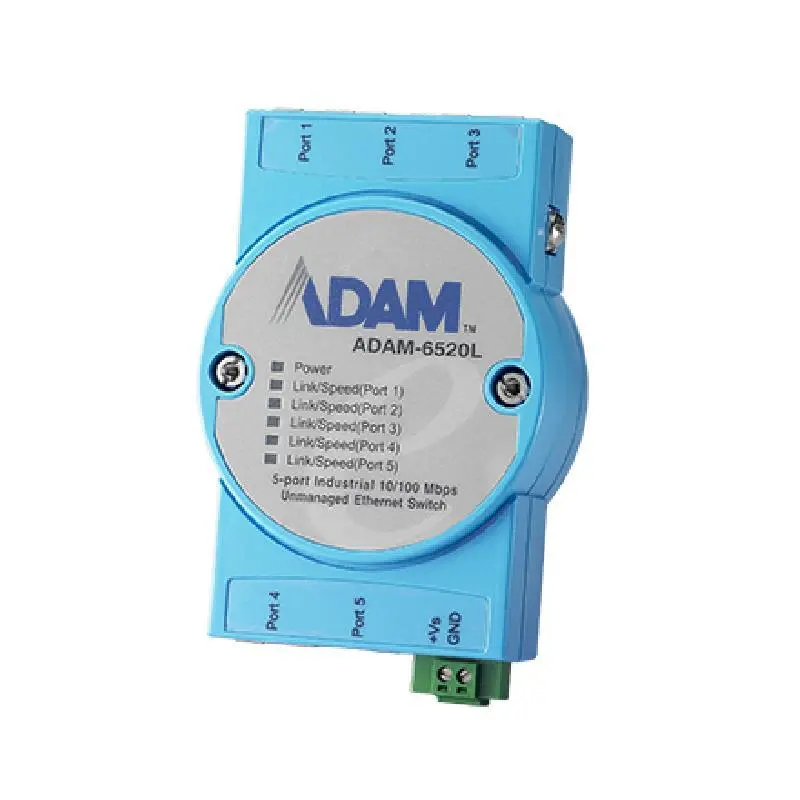

Advantech ADAM-6520L 5FE Unmanaged Ethernet Switch, Flexible mounting, 0~60℃
