| ADAM-6521-BE | ||
| Certification | EMI | CE, FCC |
| Certification | EMS | - |
| Certification | Safety | UL/cUL 60950-1 |
| Environment | Temperature (Min. Operating) | -10°C (14°F) |
| Environment | Temperature (Max. Operating) | 70°C (158°F) |
| Environment | Operating Temperature | -10 ~ 70°C (14 ~ 158°F), Stack: -10~ 60°C (-40 ~ 140°F) |
| Environment | Storage Temperature | -20 ~ 80°C (-4 ~ 176°F) |
| Ethernet Communication | Fiber Port Number | 1 |
| Ethernet Communication | Fiber Port Interface | Multi-Mode |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Ethernet Communication | Fiber Transmission Distance | 2 km |
| Ethernet Communication | Fiber Transmission Speed | 100 Mbps |
| Ethernet Communication | RJ-45 Port Number | 4 |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Stack) | Yes |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Dimensions (W x H x D) | 70 x 112 x 27 mm |
| Mechanism | Enclosure (Metal) | - |
| Mechanism | Enclosure (Plastic) | Yes |
| Mechanism | IP Rating | IP30 |
| Mechanism | Weight | - |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 2-pin removable screw terminal |
| Power | Power Consumption | 3W |
| Power | Power Input (AC) | - |
| Power | Power Input (DC) | 1 x Unregulated 10 ~ 30 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Input (Battery) | - |
| Power | Power Operating Current | - |
| Switch Properties | Jumbo Frame | - |
| Switch Properties | MAC Table Size | - |
| Switch Properties | Packet Buffer Size | - |
| Switch Properties | Switch Fabric Speed | - |
| Warranty | Warranty Period | 2 years |
| Protection | Overload Current | - |
| Protection | Reverse Polarity | - |

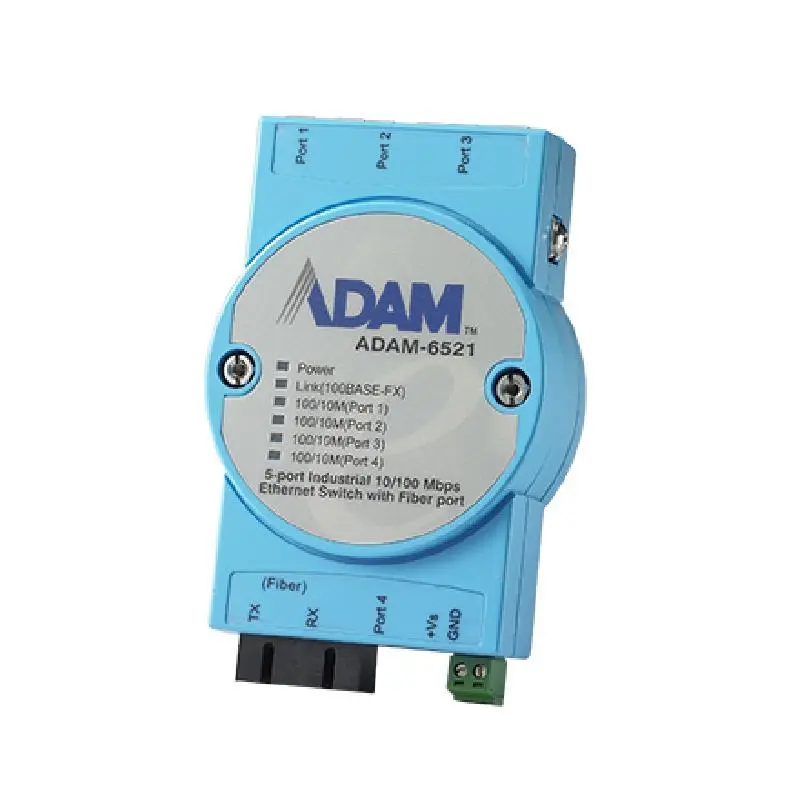

Advantech ADAM-6521 4FE+1FE SC Multi-mode Unmanaged Ethernet Switch, Flexible mounting
