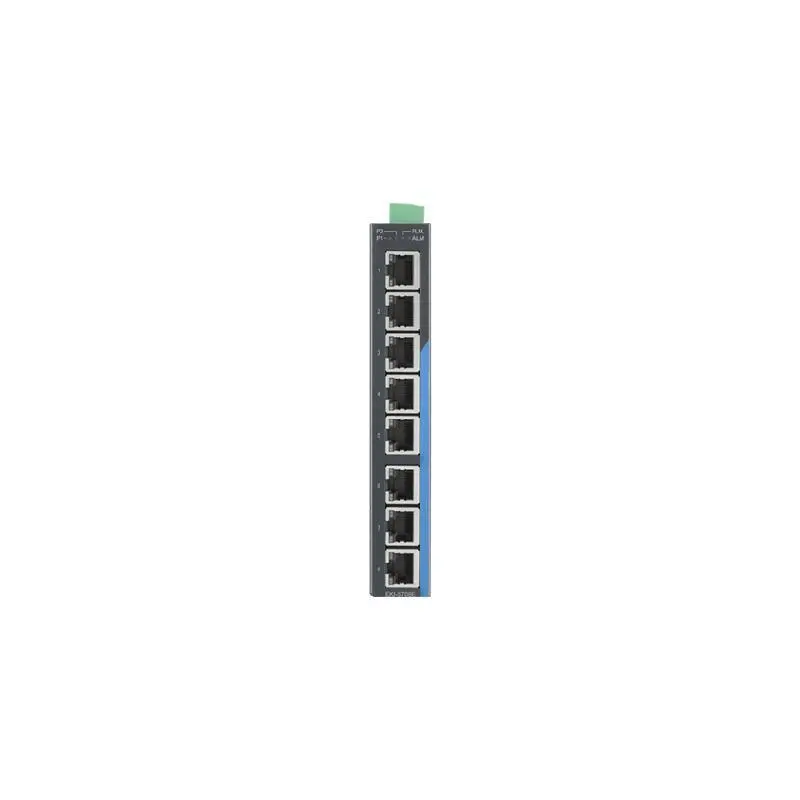

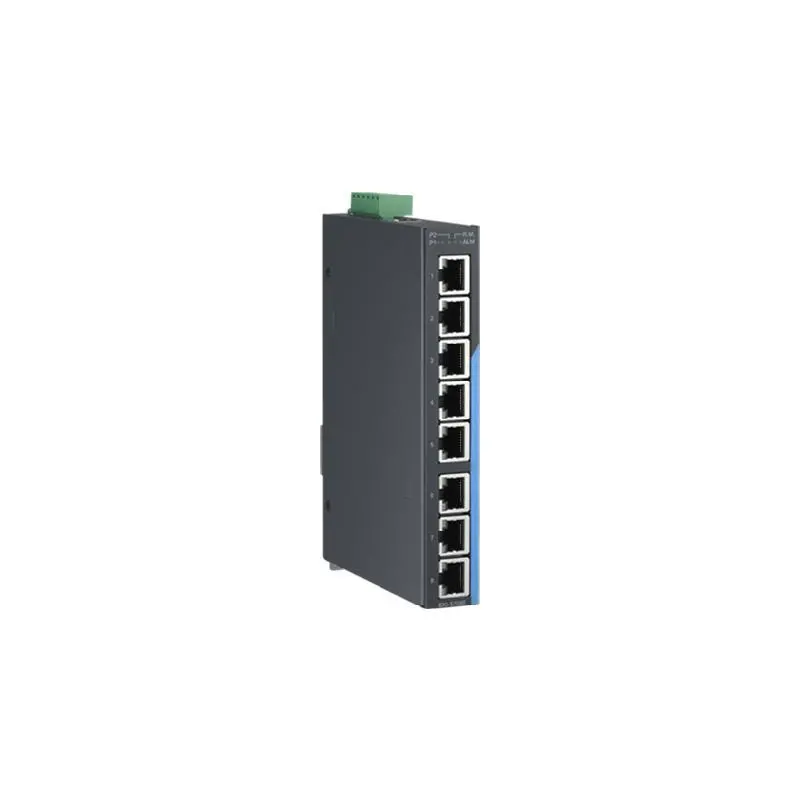

Advantech EKI-5708E-I 8 FE Port Managed Industrial Ethernet Switch

Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)

IXM function for fast deployment

Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP

Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB

Supports NMS for easy and visualized to monitor and manage network remotely

Compact size and easy installation

Dual 12 ~ 48 VDC power input and 1 x relay output

		EKI-5708E-I-A
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
Certification	Vibration	IEC 60068-2-6
Certification	Freefall	IEC 60068-2-32
Certification	Shock	IEC 60068-2-27
Certification	EMI	CE, FCC Class A
Certification	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Certification	Safety	EN 62368-1
Environment	Temperature (Max. Operating)	75°C (167°F)
Environment	Temperature (Min. Operating)	-40°C (-40°F)
Environment	Relative Humidity	10~95%
Environment	Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication	RJ-45 Port Number	8
Ethernet Communication	RJ-45 Transmission Distance	100 m
Ethernet Communication	RJ-45 Port Connector Type	RJ-45
Ethernet Communication	RJ-45 Transmission Speed	10/100 Mbps
Mechanism	Mounting (Wall)	Yes
Mechanism	Mounting (DIN-rail)	Yes
Mechanism	Weight	1.1 kg
Mechanism	IP Rating	IP30
Mechanism	Dimensions (W x H x D)	74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
Power	Power Operating Current	0.25A @ 48VDC (system)
Power	Power Input (DC)	12 ~ 48 VDC
Power	Power Consumption	6W
Protection	Reverse Polarity	Present
Switch Properties	Switch Fabric Speed	1.6Gbps
Switch Properties	Packet Buffer Size	4.1M bit
Switch Properties	MAC Table Size	8K
Warranty	Warranty Period	5 years
