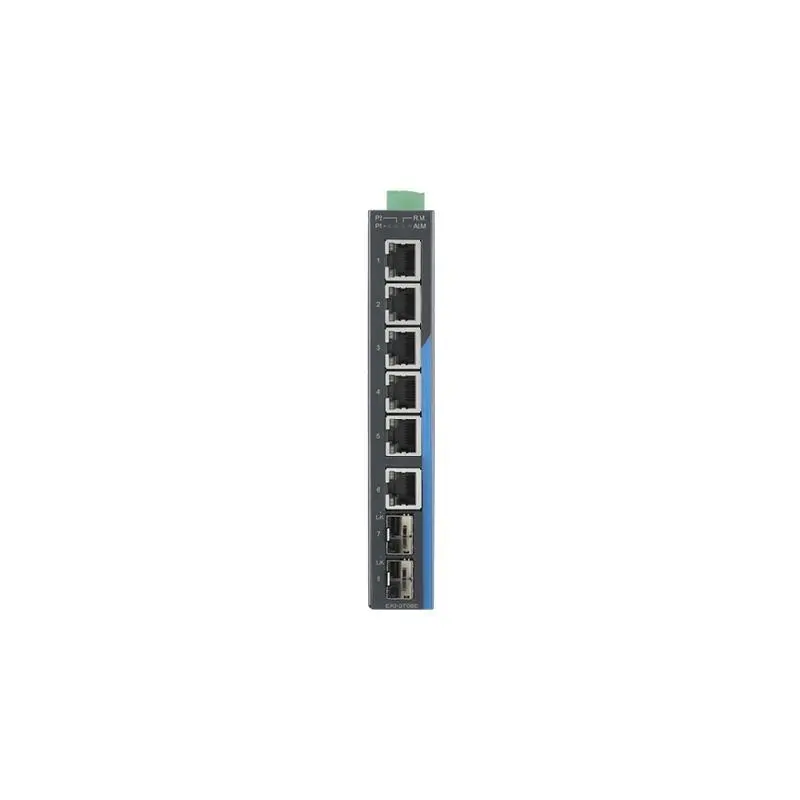

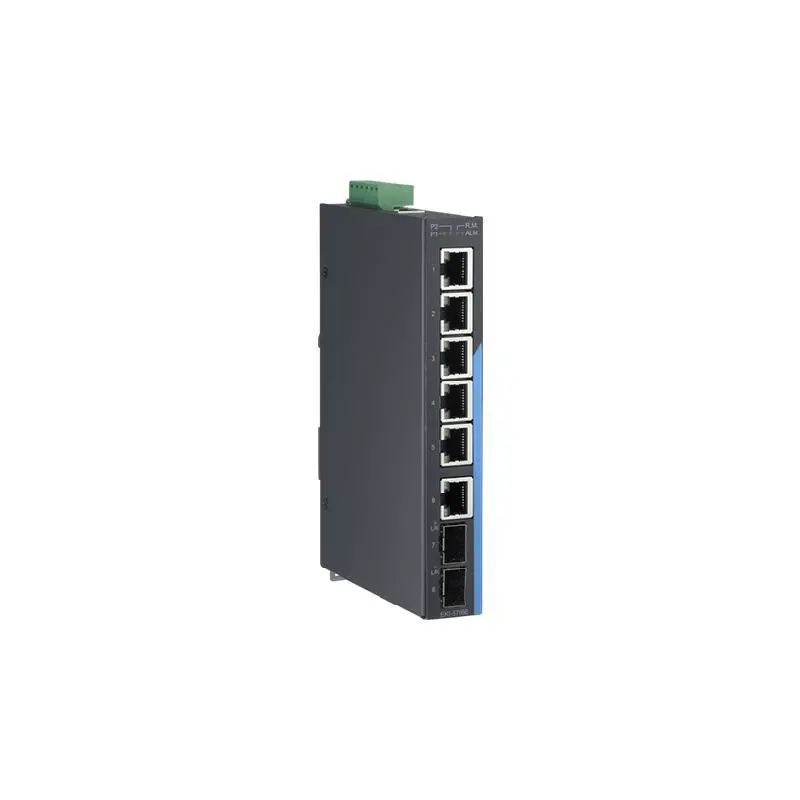

Advantech EKI-5708E-2FI 6FE + 2FE/GE SFP Port Managed Industrial Ethernet Switch

Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)

IXM function for fast deployment

Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP

Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB

Supports NMS for easy and visualized to monitor and manage network remotely

Compact size and easy installation

Dual 12 ~ 48 VDC power input and 1 x relay output

		EKI-5708E-2FI-A
Certification	Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
Certification	Vibration	IEC 60068-2-6
Certification	Freefall	IEC 60068-2-32
Certification	Shock	IEC 60068-2-27
Certification	EMI	CE, FCC Class A
Certification	EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
Certification	Safety	EN 62368-1
Environment	Temperature (Max. Operating)	75°C (167°F)
Environment	Temperature (Min. Operating)	-40°C (-40°F)
Environment	Relative Humidity	10~95%
Environment	Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication	RJ-45 Port Number	6
Ethernet Communication	RJ-45 Transmission Distance	100 m
Ethernet Communication	RJ-45 Port Connector Type	RJ-45
Ethernet Communication	RJ-45 Transmission Speed	10/100 Mbps
Mechanism	Mounting (Wall)	Yes
Mechanism	Mounting (DIN-rail)	Yes
Mechanism	IP Rating	IP30
Power	Power Input (DC)	12 ~ 48 VDC
Power	Power Consumption	6W
Protection	Reverse Polarity	Present
Switch Properties	MAC Table Size	8K
Warranty	Warranty Period	5 years
Ethernet Communication	Fiber Port Interface	SFP
Ethernet Communication	Fiber Port Number	2
Ethernet Communication	Fiber Transmission Speed	100/1000 Mbps
