| EKI-7428G-4X-AE | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3ae |
| Certification | Vibration | - |
| Certification | Freefall | - |
| Certification | Shock | - |
| Certification | EMS | - |
| Certification | EMI | - |
| Certification | EMC | EN 55032:2015+AC:2016 ClassAEN 61000-3-2:2014 Class AEN 61000-3-3:2013EN 55035:2017FCC Part 15, Subpart B |
| Certification | Safety | LVD 62368-1 |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Temperature (Min. Operating) | 0°C (32°F) |
| Environment | Relative Humidity | - |
| Environment | Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Environment | Operating Humidity | 10~95% |
| Environment | Storage Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Transmission Speed | 1G/2.5G/5G/10G |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | RJ-45 Port Number | 28 |
| Ethernet Communication | Fiber Transmission Distance | Up to 100 km |
| Ethernet Communication | Fiber Port Connector Type | SFP+ cage |
| Ethernet Communication | Fiber Port Interface | SFP+ |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | - |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | - |
| Mechanism | Mounting (Rack Mount) | Yes |
| Mechanism | Mounting (DIN-rail) | - |
| Mechanism | Weight | - |
| Mechanism | IP Rating | - |
| Mechanism | Dimensions (W x H x D) | 441 x 44 x 196 mm |
| MTBF | Method | - |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Port Number | - |
| Power | Redundant Dual Inputs | - |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Input (AC) | 100 ~ 240 VAC |
| Power | Power Operating Current | - |
| Power | Power Connector Type | - |
| Power | Power Input (DC) | - |
| Power | Power Consumption | - |
| Protection | Reverse Polarity | - |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | - |
| Switch Properties | Switch Fabric Speed | - |
| Switch Properties | Packet Buffer Size | - |
| Switch Properties | MAC Table Size | - |
| Warranty | Warranty Period | - |

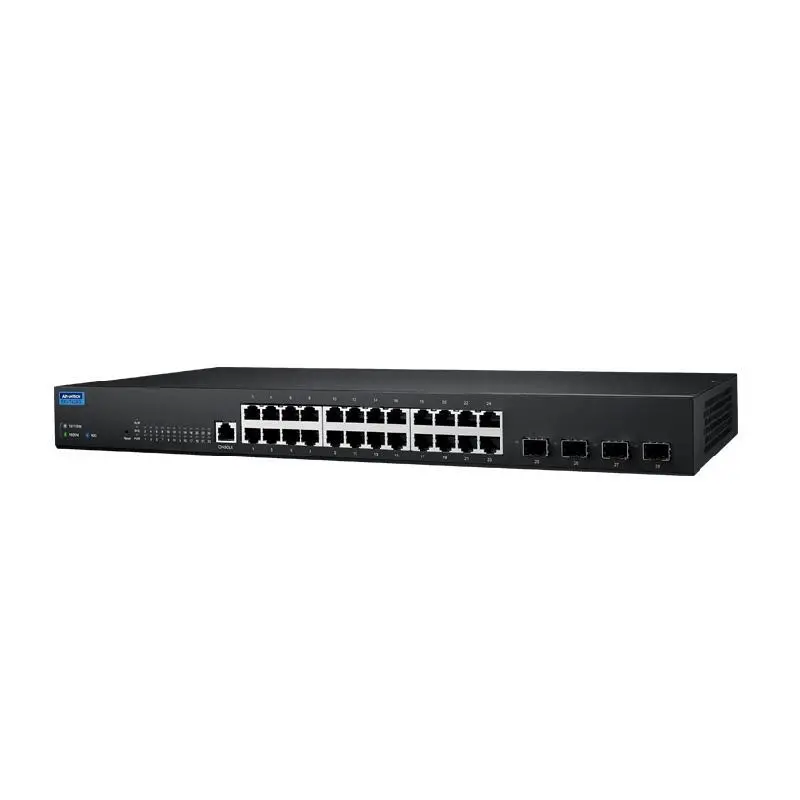

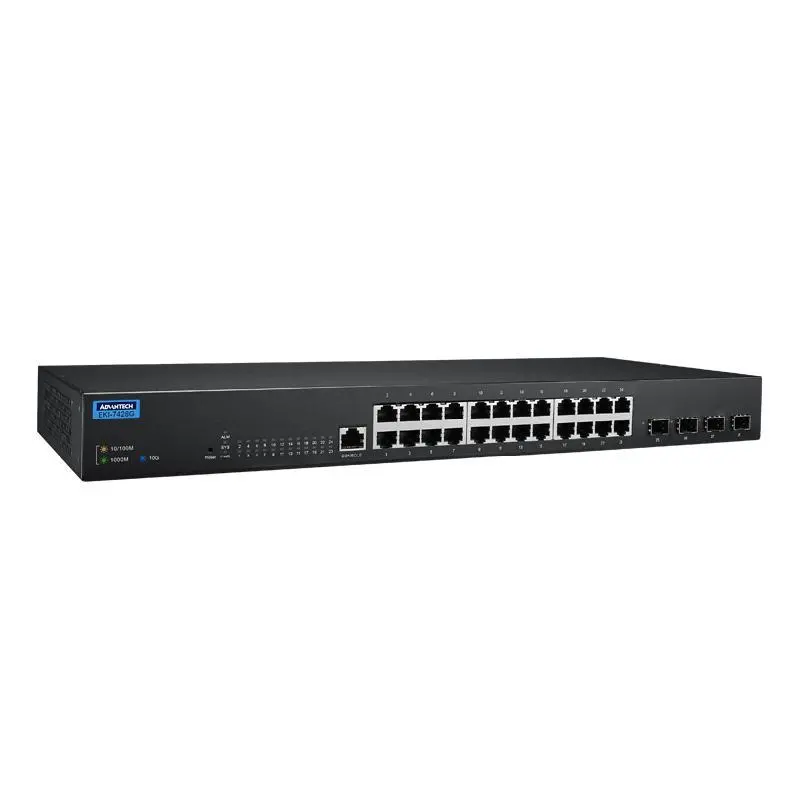

Advantech EKI-7428G-4X 24GE+4 10G SFP L2 Managed Switch
