| EKI-7428G-4CA-AE | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az |
| Certification | Vibration | - |
| Certification | Freefall | - |
| Certification | Shock | - |
| Certification | EMS | - |
| Certification | EMI | - |
| Certification | EMC | FCC Part 15,Subpart B:ANSI C63.4-2014 CE EN55032: 2010+AC:2011 EN55024: 2010+A1:2015 |
| Certification | Safety | LVD IEC/EN 62368-1 |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Temperature (Min. Operating) | 0°C (32°F) |
| Environment | Relative Humidity | - |
| Environment | Operating Temperature | 0 ~ 60°C (32 ~ 140°F) |
| Environment | Operating Humidity | 5~90% |
| Environment | Storage Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | RJ-45 Port Number | 28 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | IEEE 802.1p , 802.1s , 802.1w , 802.1x , 802.3ad |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | Yes |
| Mechanism | Mounting (DIN-rail) | - |
| Mechanism | Weight | 3 kg |
| Mechanism | IP Rating | - |
| Mechanism | Dimensions (W x H x D) | 441 x 44 x 196 mm |
| MTBF | Method | - |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Port Number | - |
| Power | Redundant Dual Inputs | - |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Input (AC) | 100 ~ 240 VAC |
| Power | Power Operating Current | 0.19A @ 240VAC |
| Power | Power Connector Type | 3-pin Power Connector |
| Power | Power Input (DC) | - |
| Power | Power Consumption | 18W |
| Protection | Reverse Polarity | - |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | Switch Fabric Speed | 56Gbps |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | MAC Table Size | 8K |
| Warranty | Warranty Period | 2 years |

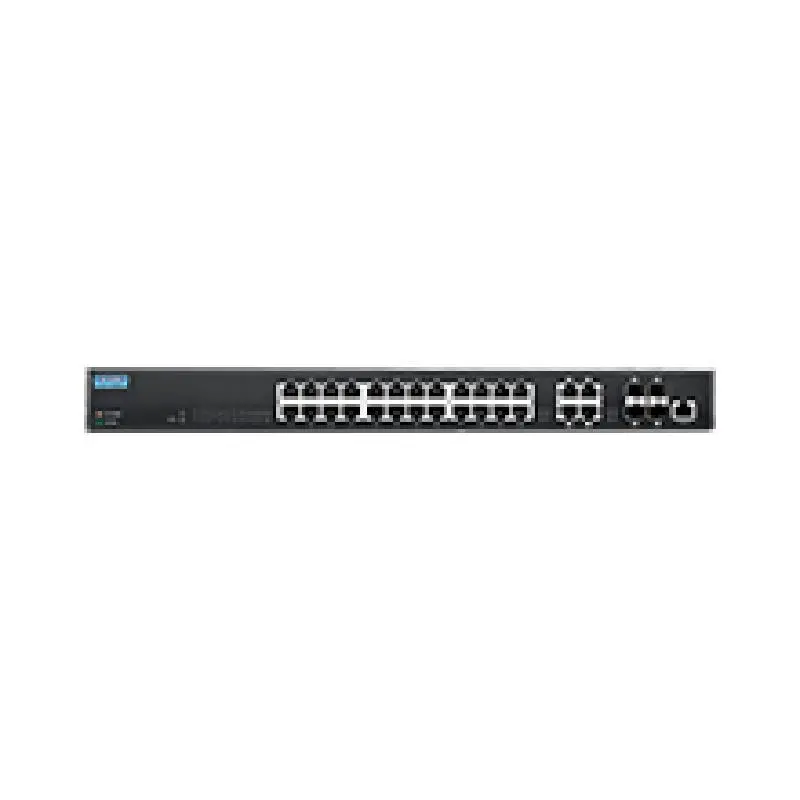

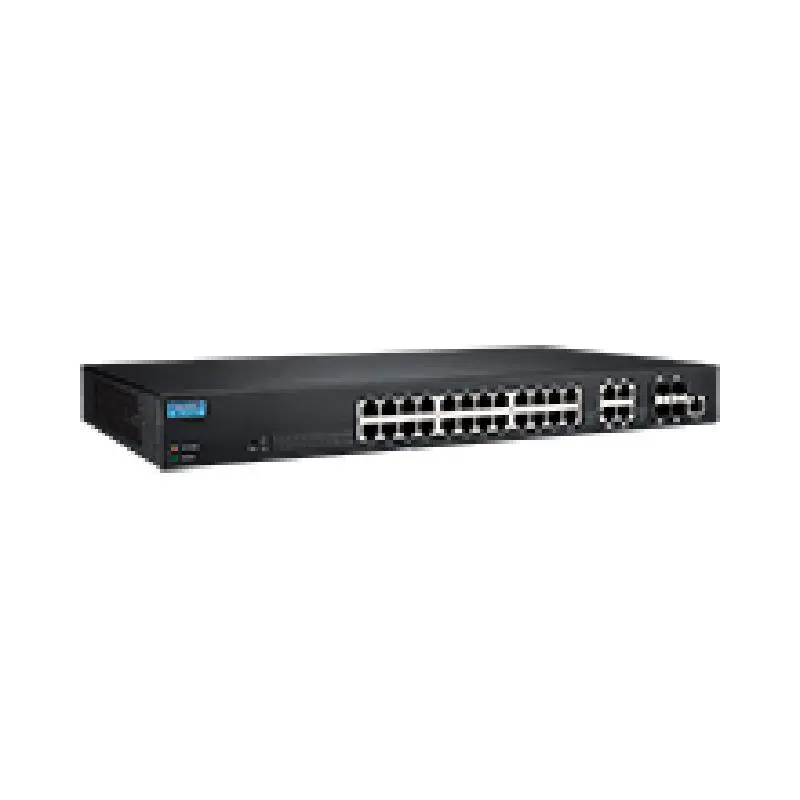

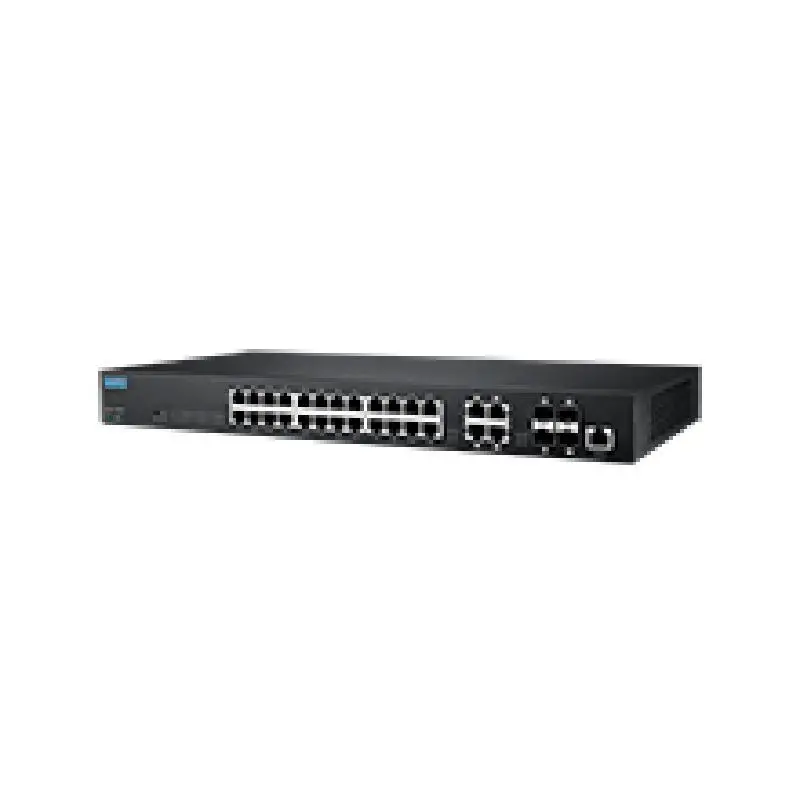

Advantech EKI-7428G-4CA 24G+4G Combo Port L2 Managed Switch
