| EKI-7554SI-AE | ||
| Certification | Ethernet Standard | - |
| Certification | Vibration | - |
| Certification | Freefall | - |
| Certification | Shock | - |
| Certification | EMS | - |
| Certification | EMI | - |
| Certification | EMC | - |
| Certification | Safety | CE, FCC, UL/cUL 60950-1, Class I, Division 2 |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Relative Humidity | - |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Operating Humidity | - |
| Environment | Storage Temperature | - |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | Fiber Port Optical Mode | Single-Mode |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | Fiber Port Number | 2 |
| Ethernet Communication | RJ-45 Port Number | 4 |
| Ethernet Communication | Fiber Transmission Distance | Up to 30 km |
| Ethernet Communication | Fiber Port Connector Type | SC Type |
| Ethernet Communication | Fiber Port Interface | Fiber |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | - |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Weight | - |
| Mechanism | IP Rating | - |
| Mechanism | Dimensions (W x H x D) | - |
| Mechanism | Enclosure (Metal) | - |
| MTBF | Method | - |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Port Number | - |
| Power | Redundant Dual Inputs | Yes |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Input (AC) | - |
| Power | Power Operating Current | - |
| Power | Power Connector Type | 6-pin removable screw terminal |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Consumption | Max. 7.7W |
| Protection | Reverse Polarity | - |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | - |
| Switch Properties | Switch Fabric Speed | - |
| Switch Properties | Packet Buffer Size | - |
| Switch Properties | MAC Table Size | - |
| Warranty | Warranty Period | - |

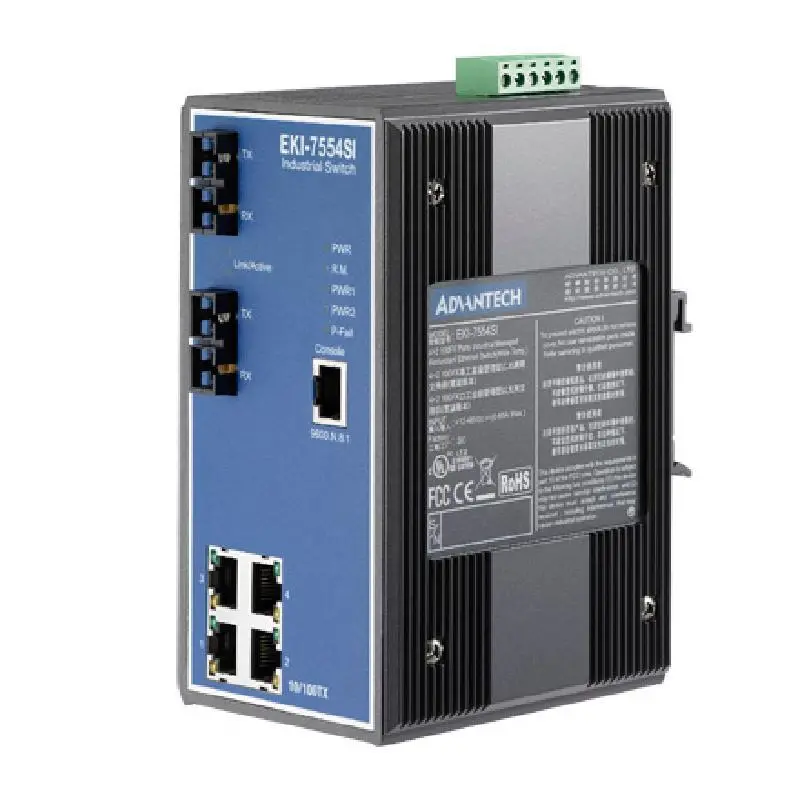

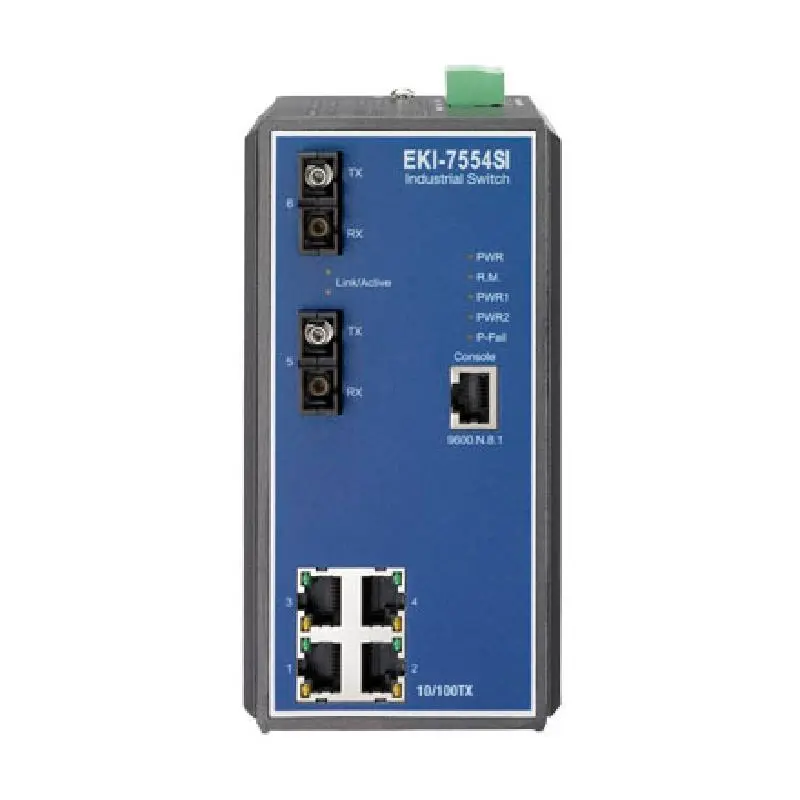

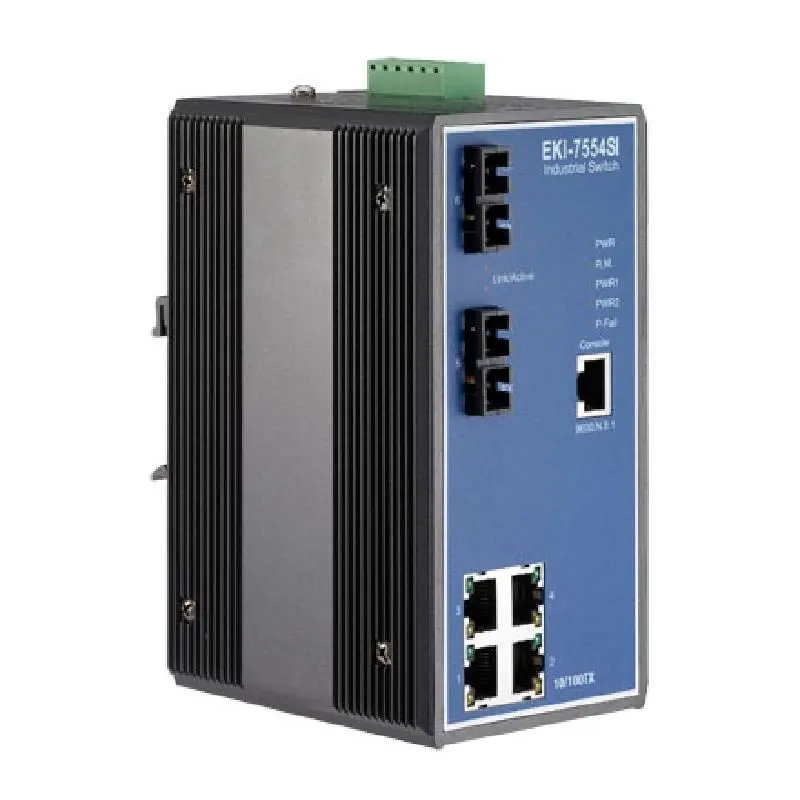

Advantech EKI-7554SI 4FE+2FE SC Single-mode Managed Ethernet Switch, -40~75℃
