| EKI-7706G-2F-AE | ||
| Certification | Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w |
| Certification | Vibration | IEC 60068-2-6 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | EMS | - |
| Certification | EMI | CE, FCC Class A |
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| Environment | Temperature (Max. Operating) | 60°C (140°F) |
| Environment | Temperature (Min. Operating) | -10°C (14°F) |
| Environment | Relative Humidity | 10~95% |
| Environment | Operating Temperature | -10 ~ 60°C (14 ~ 140°F) |
| Environment | Operating Humidity | - |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | Fiber Port Number | 2 |
| Ethernet Communication | RJ-45 Port Number | 4 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | - |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Weight | 0.45 kg (1.0 lb) |
| Mechanism | IP Rating | IP30 |
| Mechanism | Dimensions (W x H x D) | 43 x 120 x 84 mm |
| MTBF | Method | Telcordia, GB |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Port Number | - |
| Power | Redundant Dual Inputs | - |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Operating Current | 0.11A @ 48Vdc |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Consumption | 5.28W |
| Protection | Reverse Polarity | Present |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | - |
| Switch Properties | Switch Fabric Speed | 12Gbbps x |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | MAC Table Size | 8K |
| Warranty | Warranty Period | 5 years |

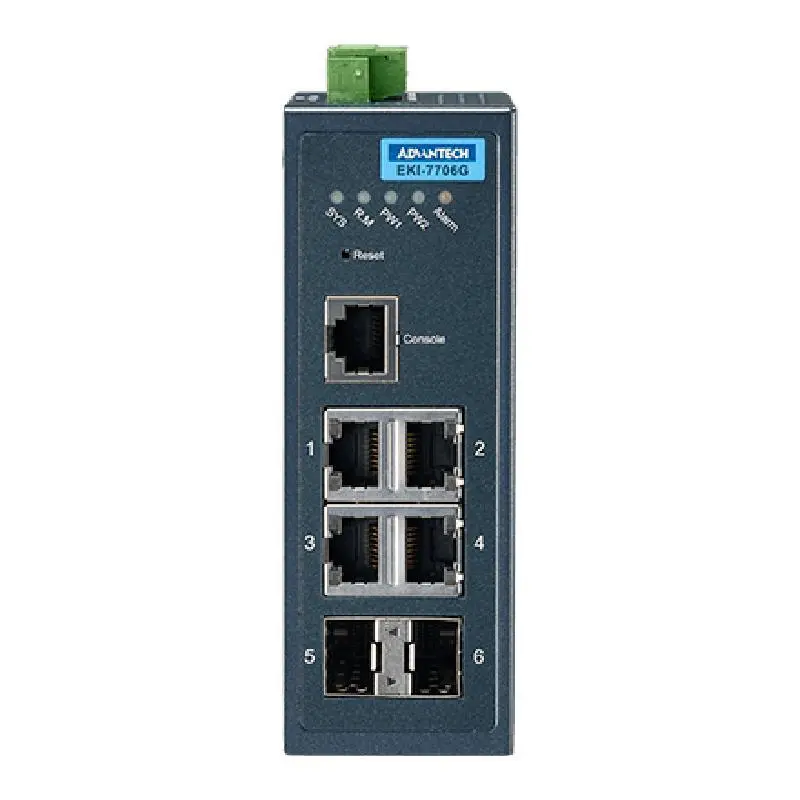

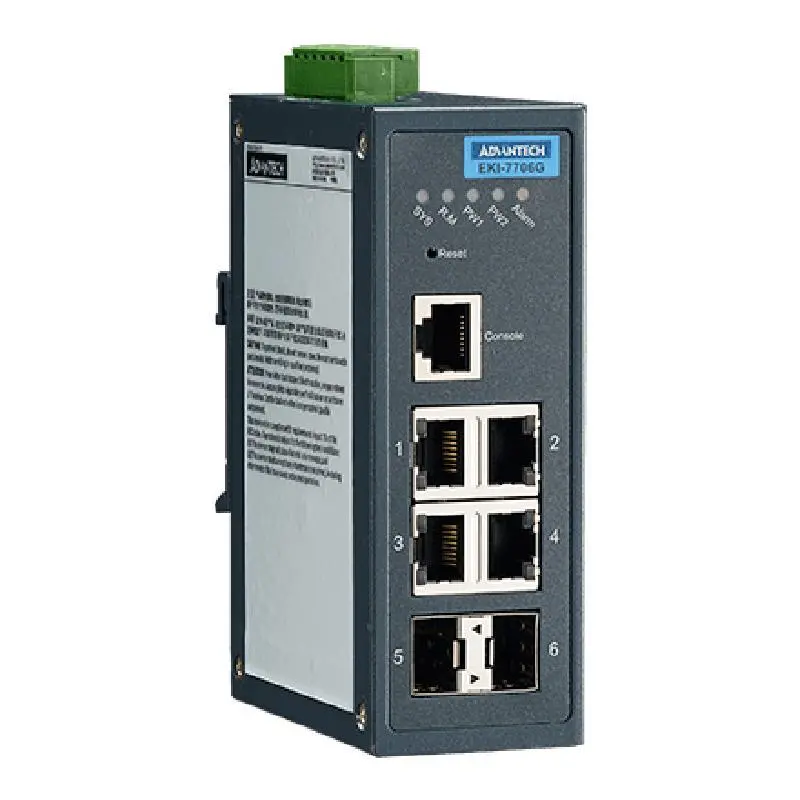

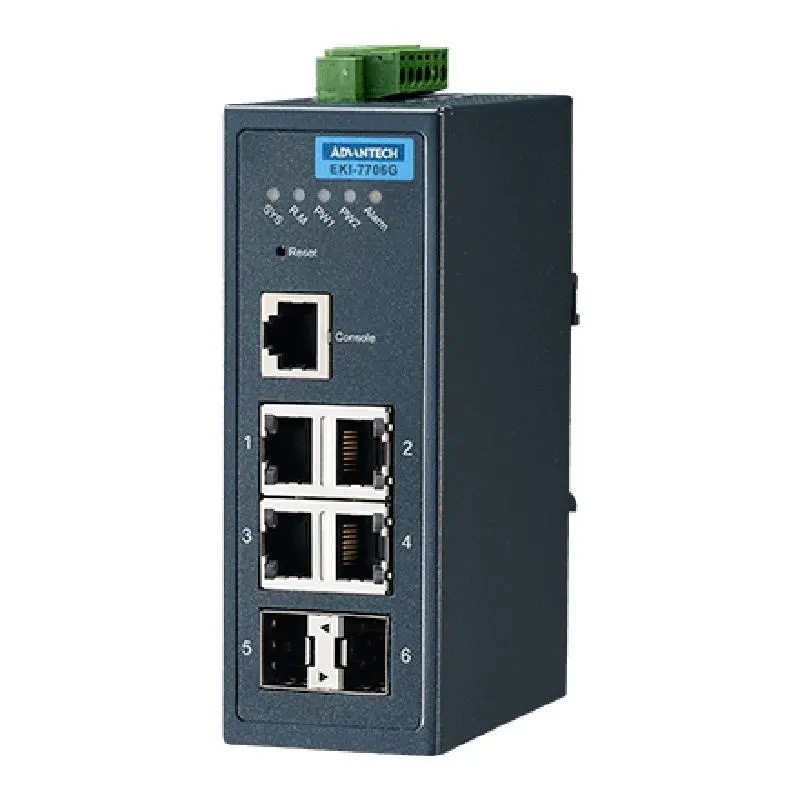

Advantech EKI-7706G-2F 4GE+2G SFP Managed Ethernet Switch
