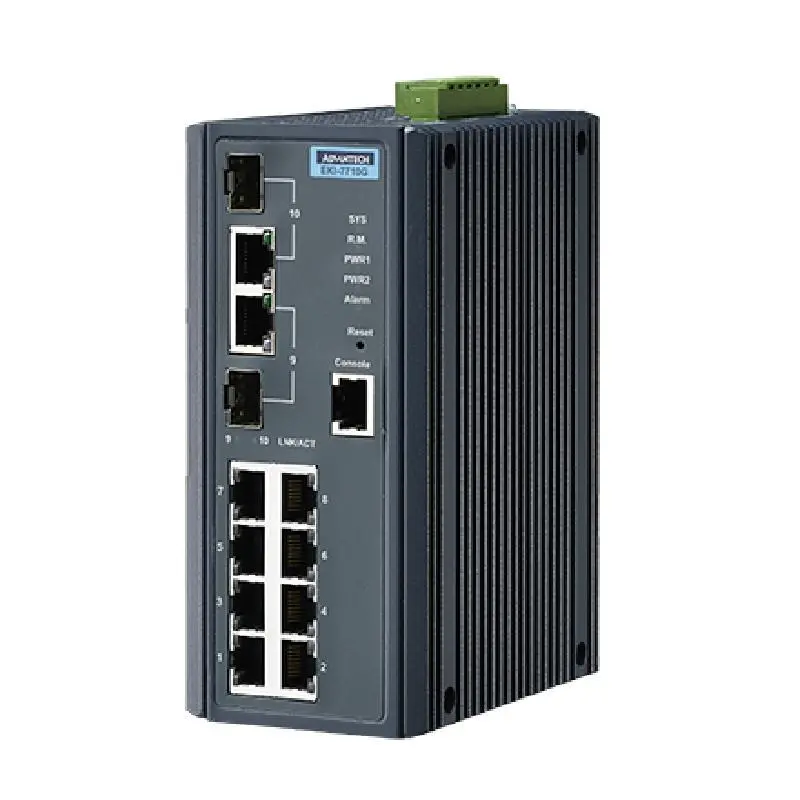

Advantech EKI-7710G-2CI 8GE+2G Combo Managed Ethernet Switch, -40~75℃

    8 Gigabit ports + 2 Gigabit Copper/SFP combo ports

    SFP socket for Easy and Flexible Fiber Expansion

    Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)

    IXM function enables fast deployment

    Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS

    Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB

    -40 ~ 75°C wide-range operating temperature (EKI-7710G-2CI)

    Dual 12~48 V DC power input and 1 relay output

EKI-7710G-2CI-AE
Certification Ethernet Standard IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w
Certification Vibration IEC 60068-2-6
Certification Freefall IEC 60068-2-32
Certification Shock IEC 60068-2-27
Certification EMS -
Certification EMI CE, FCC Class A
Certification EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification Safety LVD IEC/EN 62368-1
Environment Temperature (Max. Operating) 75°C (167°F)
Environment Temperature (Min. Operating) -40°C (-40°F)
Environment Relative Humidity 10~95%
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
Environment Operating Humidity -
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Ethernet Communication RJ-45/SFP Combo Port Speed -
Ethernet Communication RJ-45/SFP Combo Port Number 2
Ethernet Communication Fiber Port Optical Mode -
Ethernet Communication Fiber Transmission Speed -
Ethernet Communication Fiber Port Number 2
Ethernet Communication RJ-45 Port Number 10
Ethernet Communication Fiber Transmission Distance Up to 110 km
Ethernet Communication Fiber Port Connector Type SFP cage
Ethernet Communication Fiber Port Interface SFP
Ethernet Communication RJ-45 Transmission Distance 100 m
Ethernet Communication Ethernet Standard -
Ethernet Communication RJ-45 Port Connector Type RJ-45
Ethernet Communication RJ-45 Transmission Speed 10/100/1000 Mbps
Mechanism Mounting (Panel) -
Mechanism Enclosure (Plastic) -
Mechanism Mounting (Pole Mount) -
Mechanism Mounting (Stack) -
Mechanism Mounting (Wall) Yes
Mechanism Mounting (Rack Mount) -
Mechanism Mounting (DIN-rail) Yes
Mechanism Weight 1.1 kg
Mechanism IP Rating IP30
Mechanism Dimensions (W x H x D) 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
MTBF Method Telcordia(Relax), GB
MTBF Time 858,835 hours
PoE Information Support PoE -
PoE Information PoE Output -
PoE Information PoE Budget -
PoE Information PoE Port Number -
Power Redundant Dual Inputs -
Power Power Input (Battery) -
Power Power Input (PoE) -
Power Power Input (AC) -
Power Power Operating Current 0.25A @ 48VDC (system)
Power Power Connector Type 6-pin removable screw terminal (power & relay)
Power Power Input (DC) 12 ~ 48 VDC
Power Power Consumption 12.1W (system)
Protection Reverse Polarity Present
Protection Overload Current -
Switch Properties Jumbo Frame 9,216 bytes
Switch Properties Switch Fabric Speed 20Gbps
Switch Properties Packet Buffer Size 4.1M bit
Switch Properties MAC Table Size 8K
Warranty Warranty Period 5 years
