| EKI-7712G-4FMPI-AE | ||
| Certification | Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w |
| Certification | Vibration | IEC 60068-2-6 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | EMS | - |
| Certification | EMI | CE, FCC Class A |
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | UL 62368 |
| Environment | Temperature (Max. Operating) | 70°C (158°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Relative Humidity | 10~95% |
| Environment | Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Environment | Operating Humidity | - |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | RJ-45 Port Number | 8 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | - |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Weight | 1.1 kg |
| Mechanism | IP Rating | IP30 |
| Mechanism | Dimensions (W x H x D) | 97 x 152 x 105 mm |
| MTBF | Method | - |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | 370W |
| PoE Information | PoE Port Number | 6 x 802.3at + 2 x 802.3bt |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Input (AC) | - |
| Power | Power Operating Current | 0.12A @ 55VDC |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Input (DC) | 55 ~ 57 VDC |
| Power | Power Consumption | 12W |
| Protection | Reverse Polarity | Present |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | Switch Fabric Speed | 24Gbps |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | MAC Table Size | 8K |
| Warranty | Warranty Period | 5 years |

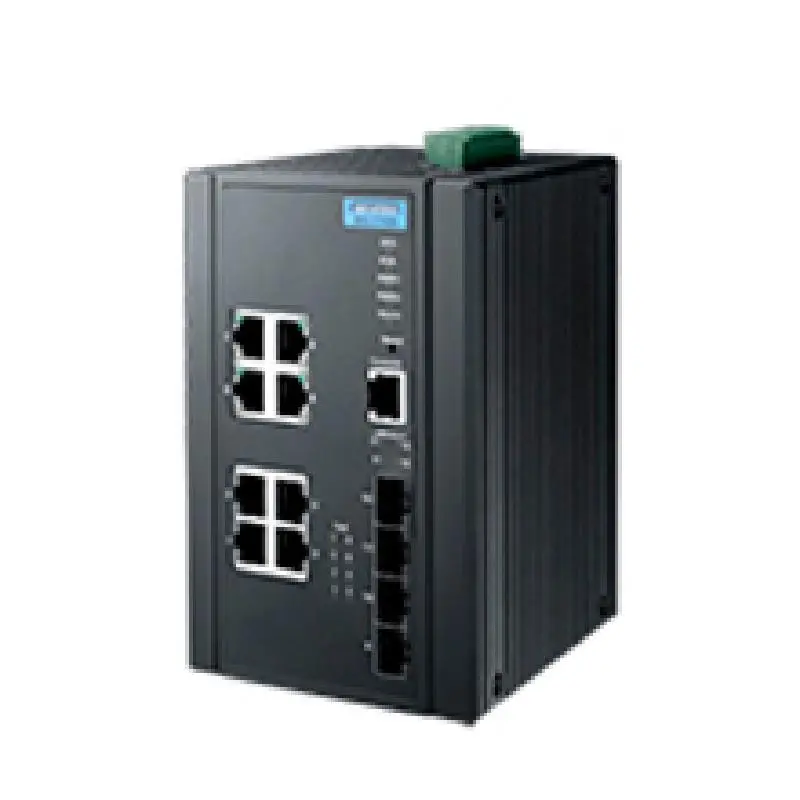

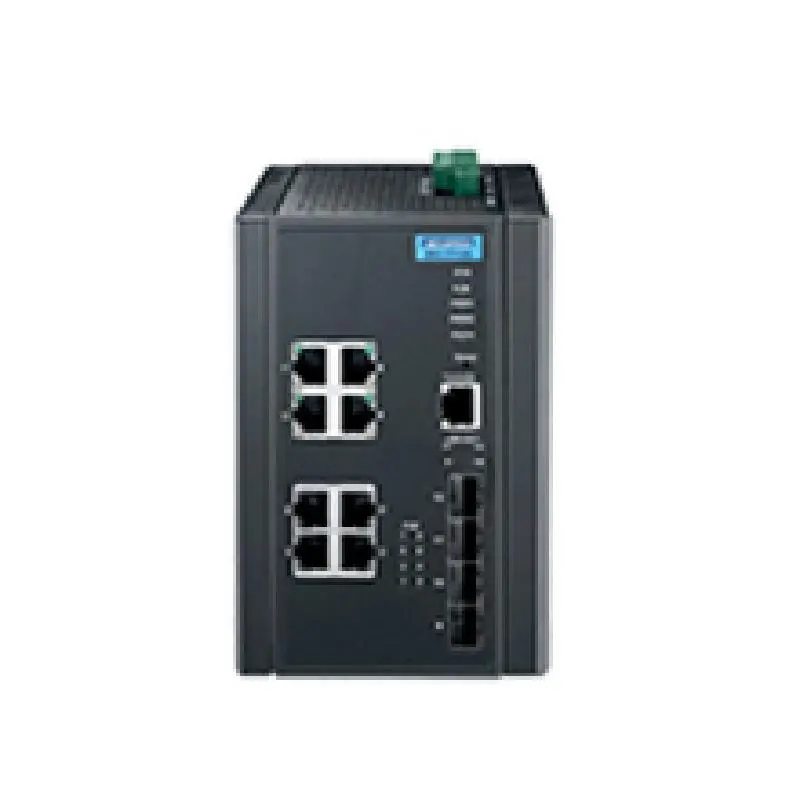

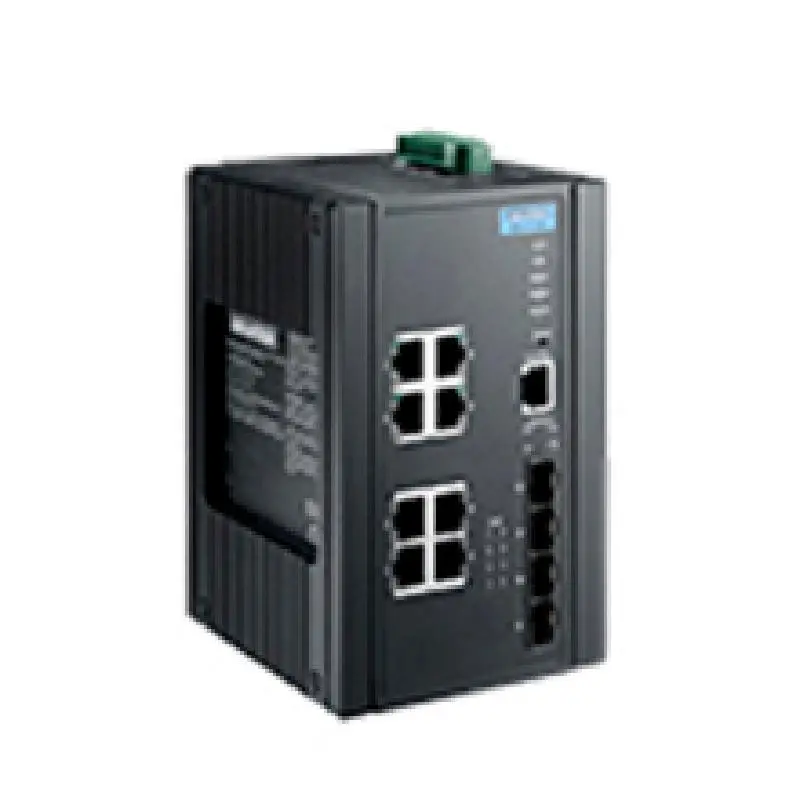

Advantech EKI-7712G-4FMPI 8GE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at/bt, 53~57VDC, -40~70℃
