| EKI-7720E-4FI-AE | EKI-7720E-4FI-AU | ||
| Certification | Ethernet Standard | IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w | IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w |
| Certification | Vibration | IEC 60068-2-6 | IEC 60068-2-6 |
| Certification | Freefall | IEC 60068-2-32 | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 | IEC 60068-2-27 |
| Certification | EMS | - | CE, FCC Class A |
| Certification | EMI | CE, FCC Class A | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | UL 61010-2-201, EN 62368-1 (LVD) |
| Certification | Safety | UL 61010-2-201, EN 62368-1 (LVD) | 10~95% |
| Environment | Temperature (Max. Operating) | 75°C (167°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% | Up to 110 km |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | 100 m |
| Environment | Operating Humidity | - | 16 x RJ-45 + 4 x SFP ports |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | 10/100 Mbps ; 10/100/1000 Mbps |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - | 1.1 kg |
| Ethernet Communication | RJ-45/SFP Combo Port Number | - | IP30 |
| Ethernet Communication | Fiber Port Optical Mode | - | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| Ethernet Communication | Fiber Transmission Speed | - | Telcordia(Relax), GB |
| Ethernet Communication | Fiber Port Number | 4 | TBD |
| Ethernet Communication | RJ-45 Port Number | - | - |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km | 0.25A @ 48VDC (system) |
| Ethernet Communication | Fiber Port Connector Type | SFP cage | 6-pin removable screw terminal (power & relay) |
| Ethernet Communication | Fiber Port Interface | SFP | 12 ~ 48 VDC |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | 12.1W (system) |
| Ethernet Communication | Ethernet Standard | - | 9,216 bytes |
| Ethernet Communication | RJ-45 Port Connector Type | 16 x RJ-45 + 4 x SFP ports | 11.2Gbps |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps | 4.1M bit |
| Mechanism | Mounting (Panel) | - | 8K |
| Mechanism | Enclosure (Plastic) | - | 5 years |
| Mechanism | Mounting (Pole Mount) | - | |
| Mechanism | Mounting (Stack) | - | |
| Mechanism | Mounting (Wall) | Yes | |
| Mechanism | Mounting (Rack Mount) | - | |
| Mechanism | Mounting (DIN-rail) | Yes | |
| Mechanism | Weight | 1.1 kg | |
| Mechanism | IP Rating | IP30 | |
| Mechanism | Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) | |
| MTBF | Method | Telcordia(Relax), GB | |
| MTBF | Time | - | |
| PoE Information | Support PoE | - | |
| PoE Information | PoE Output | - | |
| PoE Information | PoE Budget | - | |
| PoE Information | PoE Port Number | - | |
| Power | Redundant Dual Inputs | - | |
| Power | Power Input (Battery) | - | |
| Power | Power Input (PoE) | - | |
| Power | Power Input (AC) | - | |
| Power | Power Operating Current | 0.25A @ 48VDC (system) | |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) | |
| Power | Power Input (DC) | 12 ~ 48 VDC | |
| Power | Power Consumption | 12.1W (system) | |
| Protection | Reverse Polarity | Present | |
| Protection | Overload Current | - | |
| Switch Properties | Jumbo Frame | 9,216 bytes | |
| Switch Properties | Switch Fabric Speed | 11.2Gbps | |
| Switch Properties | Packet Buffer Size | 4.1M bit | |
| Switch Properties | MAC Table Size | 8K | |
| Warranty | Warranty Period | 5 years | |

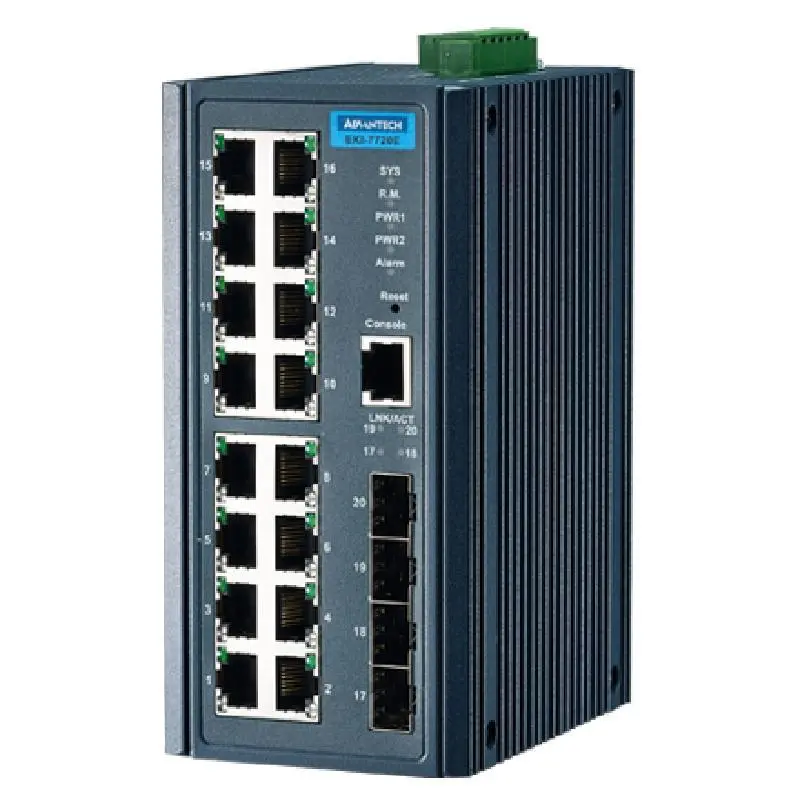

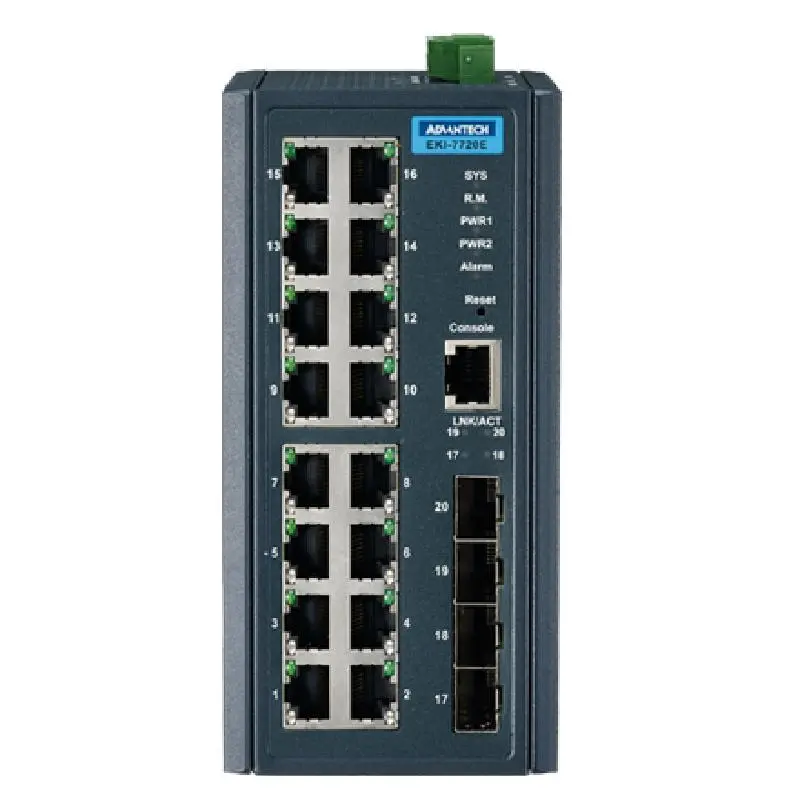

Advantech EKI-7720E-4FI 16FE+4G SFP Managed Ethernet Switch, -40~75℃
