| EKI-7720G-4FPI-AE | ||
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | EMI | CE, FCC Class A |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Safety | - |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Ethernet Communication | Ethernet Standard | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad |
| Ethernet Communication | RJ-45 Port Connector Type | 16 x RJ-45 (Ethernet) |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | Fiber Transmission Speed | 100/1000 Mbps |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Environment | Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Operating Humidity | 10~95% |
| Mechanism | Dimensions (W x H x D) | 97 x 152 x 105 mm |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 1.2 kg |
| PoE Information | PoE Output | 25.5W |
| PoE Information | PoE Port Number | 16 |
| PoE Information | PoE Budget | 420W |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 16W (system) |
| Power | Power Input (DC) | 48 ~ 57 VDC |
| Power | Power Operating Current | 0.3A @ 48 VDC (system) |
| Warranty | Warranty Period | 5 years |

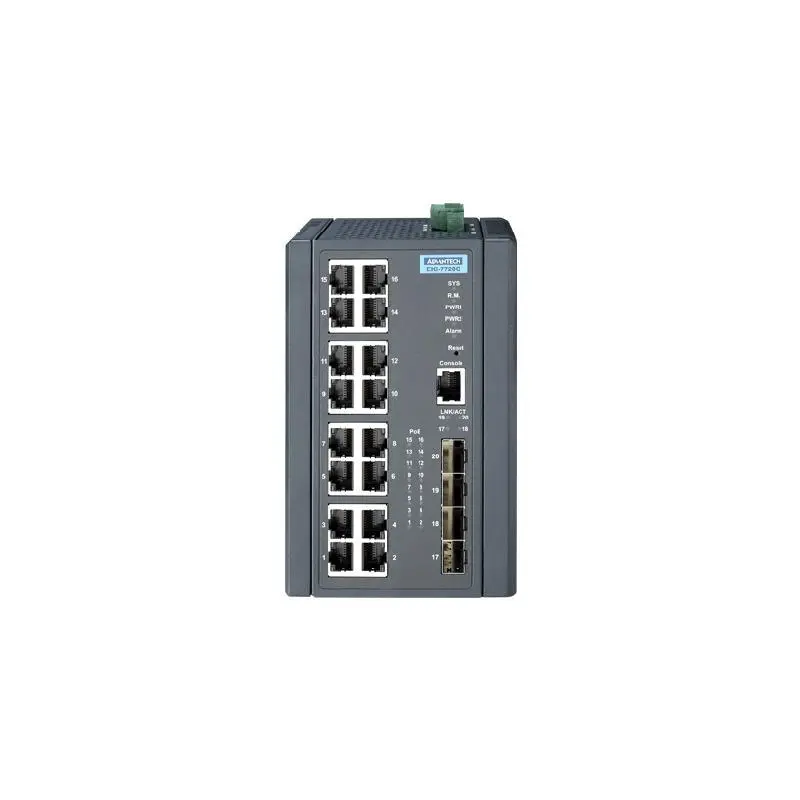

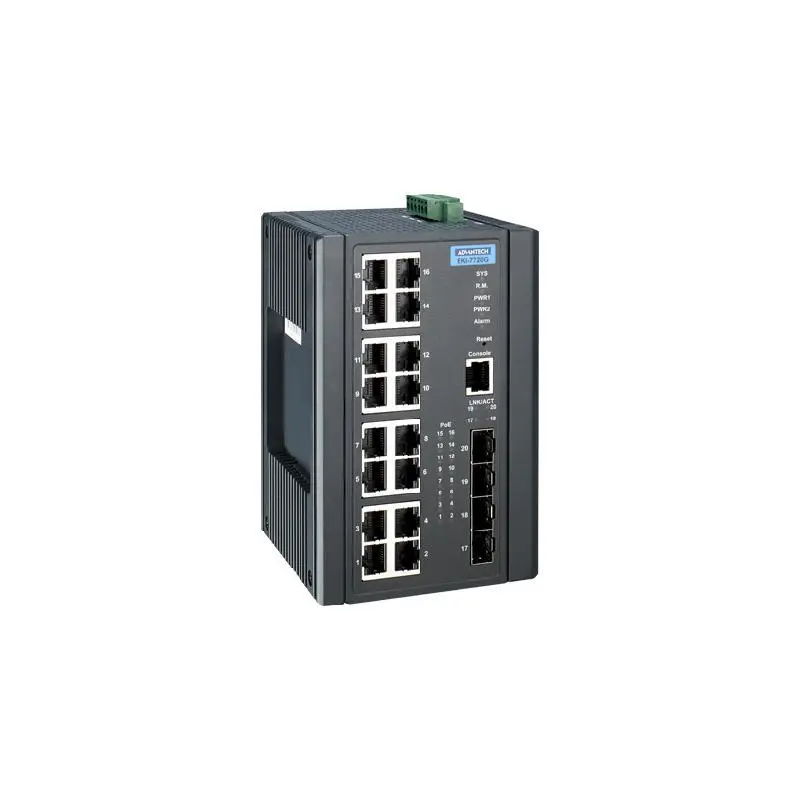

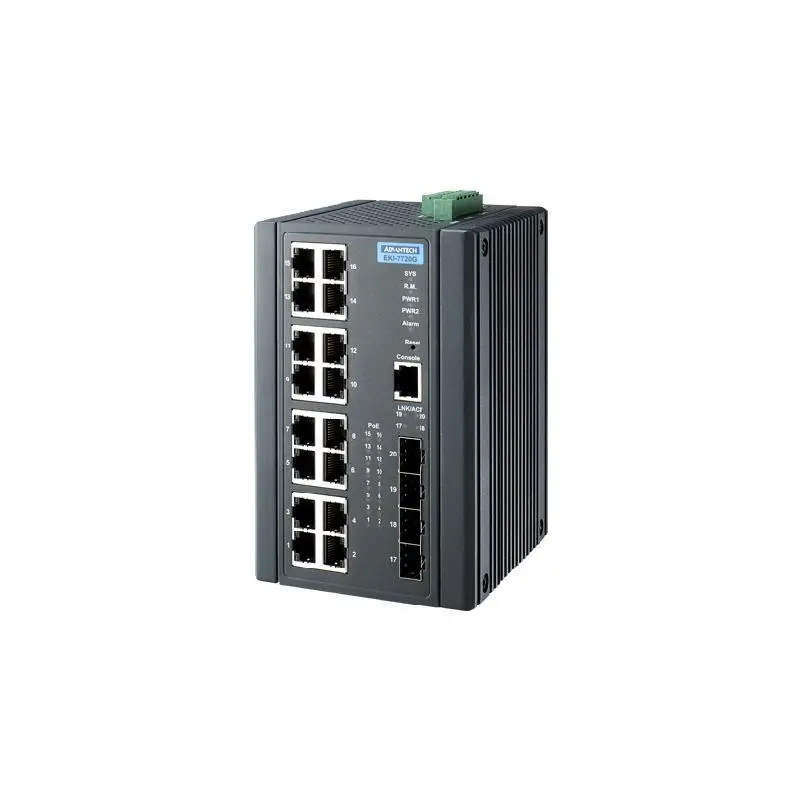

Advantech EKI-7720G-4FPI 16GE PoE + 4G SFP Ports Managed Industrial PoE Switch
