| EKI-9728G-4X8CI-AE | ||
| Certification | Ethernet Standard | IEEE 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1X, 802.1D, 802.1s, 802.1w, 802.1Q, 802.1ab |
| Certification | Vibration | IEC 60068-2-6 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | EMS | - |
| Certification | EMI | CE, FCC Class A |
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Safety | EN 62368-1 |
| Environment | Temperature (Max. Operating) | 85°C (185°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Relative Humidity | 10~95% |
| Environment | Operating Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Operating Humidity | - |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | - |
| Ethernet Communication | RJ-45/SFP Combo Port Number | 8 |
| Ethernet Communication | Fiber Port Optical Mode | - |
| Ethernet Communication | Fiber Transmission Speed | - |
| Ethernet Communication | Fiber Port Number | 4 |
| Ethernet Communication | RJ-45 Port Number | - |
| Ethernet Communication | Fiber Transmission Distance | Depends on fiber module |
| Ethernet Communication | Fiber Port Connector Type | SFP+ cage |
| Ethernet Communication | Fiber Port Interface | SFP+ |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | Ethernet Standard | - |
| Ethernet Communication | RJ-45 Port Connector Type | 4 x SFP + 16 x RJ-45 + 8 x RJ45/SFP Combo ports |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps ; 10 Gbpx |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | - |
| Mechanism | Mounting (Rack Mount) | Yes |
| Mechanism | Mounting (DIN-rail) | - |
| Mechanism | Weight | 6.3 kg |
| Mechanism | IP Rating | IP30 |
| Mechanism | Dimensions (W x H x D) | 442 x 44 x 352 mm |
| MTBF | Method | - |
| MTBF | Time | - |
| PoE Information | Support PoE | - |
| PoE Information | PoE Output | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Port Number | - |
| Power | Redundant Dual Inputs | - |
| Power | Power Input (Battery) | - |
| Power | Power Input (PoE) | - |
| Power | Power Input (AC) | 90 ~ 264 VAC |
| Power | Power Operating Current | 0.17A @ 110VAC (system) |
| Power | Power Connector Type | 2 x 3-pin removable screw terminal (power); 1 x 4-pin removable screw terminal (relay) |
| Power | Power Input (DC) | 88 ~ 370 VDC |
| Power | Power Consumption | 19.24W (system) |
| Protection | Reverse Polarity | Present |
| Protection | Overload Current | - |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | Switch Fabric Speed | 128Gbps |
| Switch Properties | Packet Buffer Size | 1.5M bit |
| Switch Properties | MAC Table Size | 16K |
| Warranty | Warranty Period | 5 years |

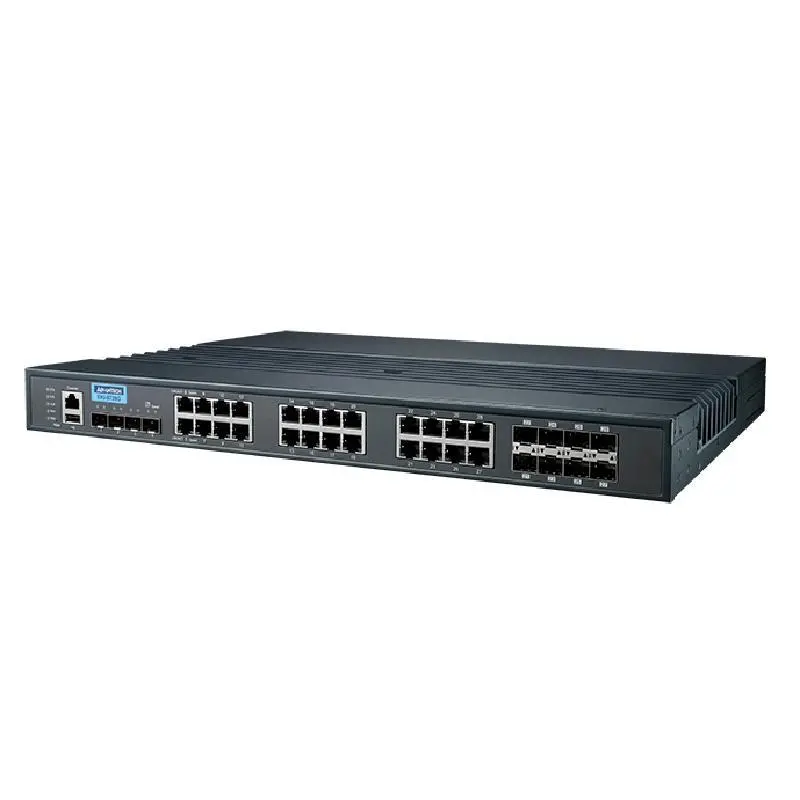

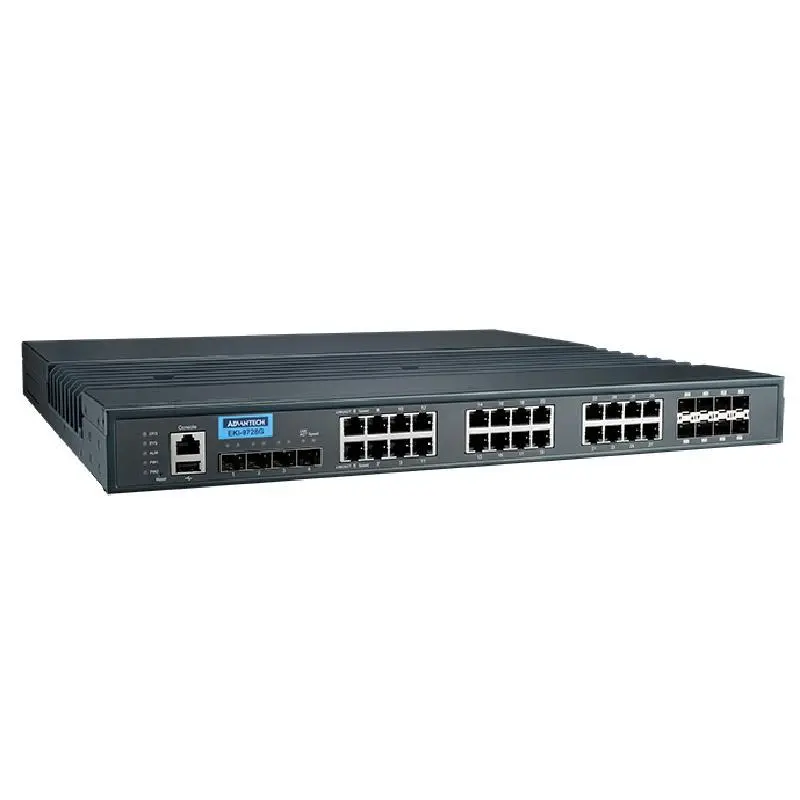

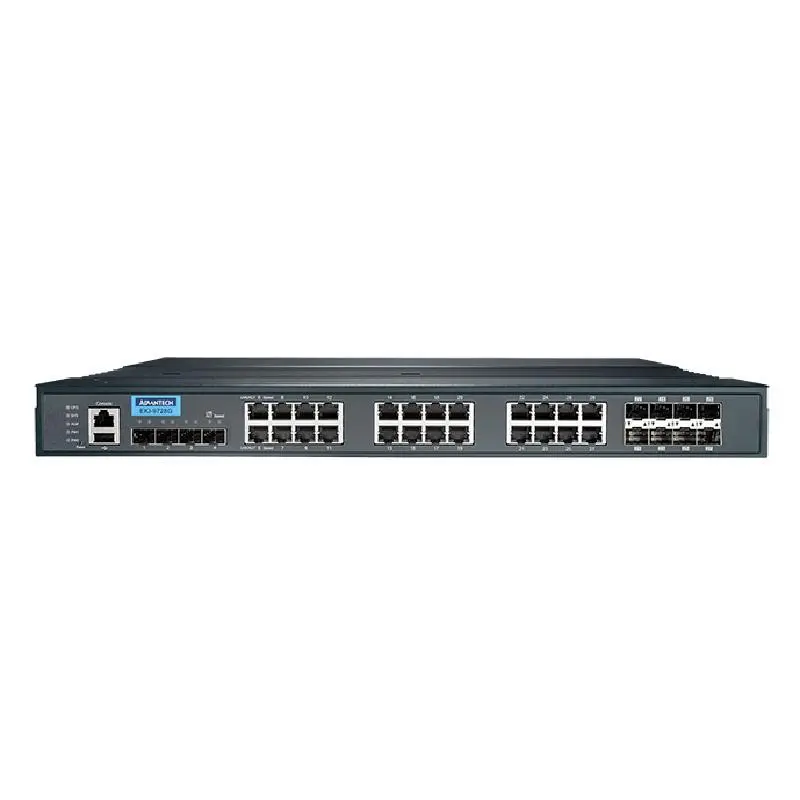

Advantech EKI-9728G-4X8CI 4 x 10GbE + 16GE + 8GE Combo L3 Managed Ethernet Switch, -40~85℃
