| EKI-2705E-1GPI-A | EKI-2705E-1GPI-AU | ||
| Interface | Port Number | 5 | 5 |
| Ethernet Communication | RJ-45 Port Connector Type | 5 x RJ-45 | 5 x RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps ; 10/100/1000 Mbps | 10/100 Mbps ; 10/100/1000 Mbps |
| Power | Power Input (DC) | 24 ~ 48 VDC | 24 ~ 48 VDC |
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m | 100 m |
| PoE Information | PoE Port Number | 4 | 4 |
| Switch Properties | MAC Table Size | 2K | 2K |
| Switch Properties | Packet Buffer Size | 1M bit | 1M bit |
| Switch Properties | Jumbo Frame | 9,216 bytes | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) | 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) |
| Mechanism | IP Rating | IP30 | IP30 |
| Mechanism | Enclosure (Metal) | Metal | Metal |
| Mechanism | Weight | 0.45 kg (1.0 lb) | 0.45 kg (1.0 lb) |
| Mechanism | Mounting | DIN-rail, Wall | DIN-rail, Wall |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% | 10~95% |
| MTBF | Time | 1,697,086 hours | 1,697,086 hours |
| MTBF | Method | Telcordia(Relax), GB | Telcordia(Relax), GB |
| Power | Power Operating Current | 1A @ 24 VDC | 1A @ 24 VDC |
| Power | Power Consumption | Max 2W | Max 2W |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) | 6-pin removable screw terminal (power & relay) |
| Certification | EMI | CE, FCC Class A | CE, FCC Class A |
| Certification | Safety | UL 62368 | UL 62368 |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Shock | IEC 60068-2-27 | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 | IEC 60068-2-32 |
| Certification | Vibration | IEC 60068-2-6 | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years | 5 years |

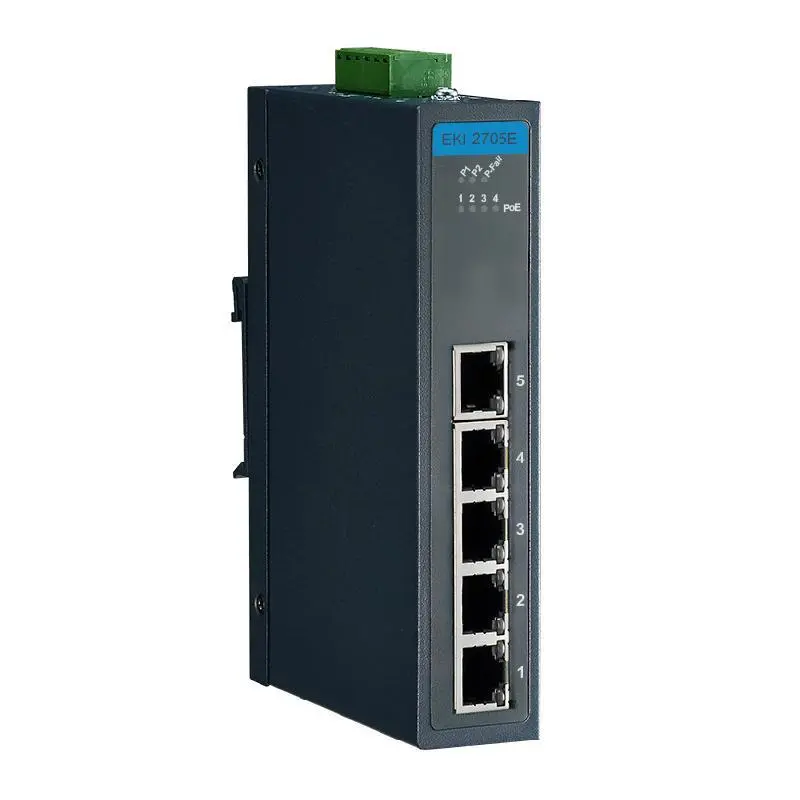

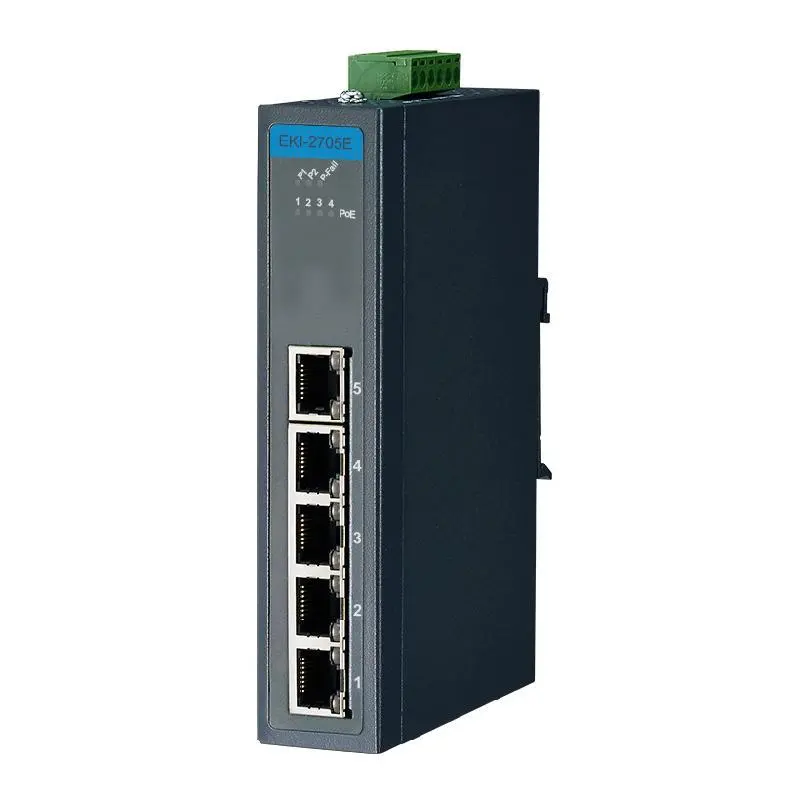

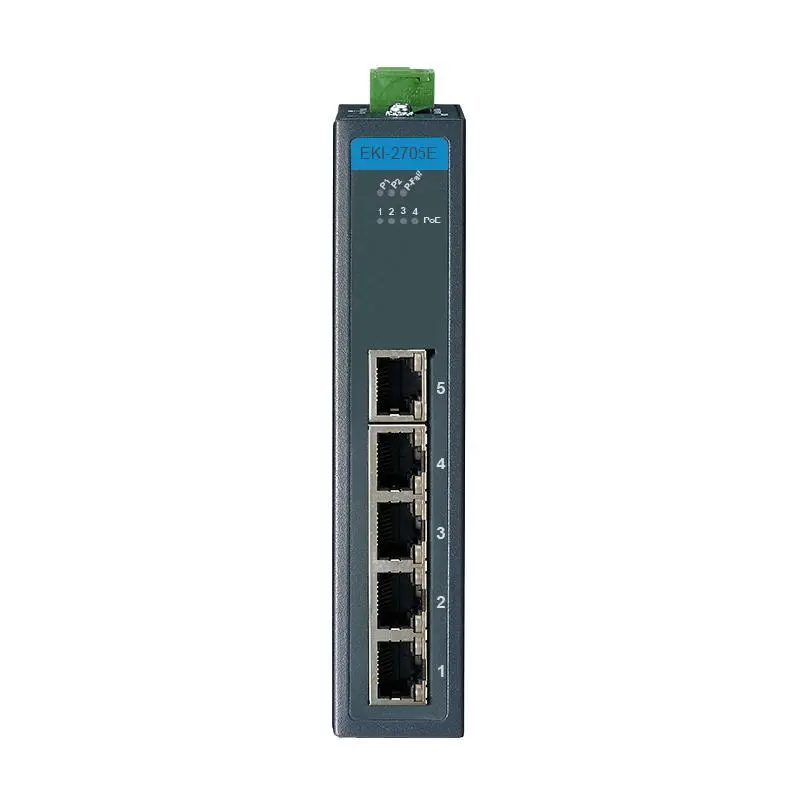

Advantech EKI-2705E-1GPI 4FE PoE+1GE, Unmanaged Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃
