| EKI-2708G-PI-A | ||
| Interface | Port Number | 8 |
| Ethernet Communication | RJ-45 Port Connector Type | 8 x RJ-45 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Power | Power Input (DC) | 12 ~ 48 VDC, redundant dual inputs |
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3af/at |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| PoE Information | PoE Port Number | 8 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Switch Properties | MAC Table Size | 4096 |
| Switch Properties | Packet Buffer Size | 1.5M bit |
| Switch Properties | Switch Fabric Speed | 8Gbps |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 56 x 140 x 130 mm (2.20 x 5.51 x 5.11 in.) |
| Mechanism | IP Rating | IP30 |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | Weight | 1.1 kg |

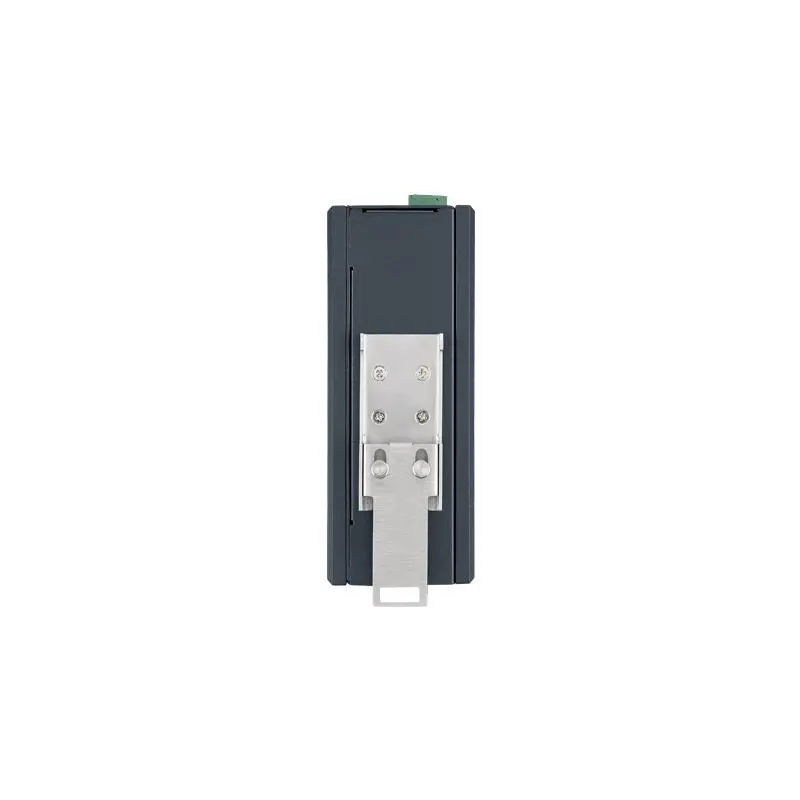

| Mechanism | Mounting | DIN-rail, Wall |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 5~95% (non-condensing) |
| MTBF | Time | 1,074,022 hours |
| MTBF | Method | Telcordia(Relax), GB |
| Power | Power Operating Current | 1A @ 24 VDC |
| Power | Power Consumption | Max. 5.28W (system) |

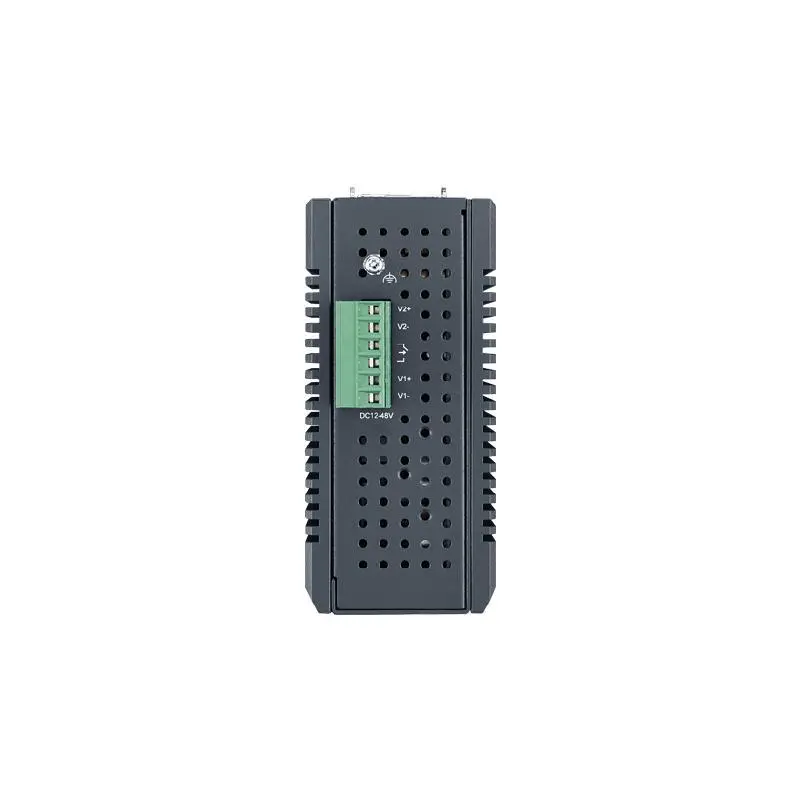

| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Certification | EMI | CE, FCC Class A |
| Certification | Safety | LVD IEC/EN 62368-1 |
| Certification | EMC | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Vibration | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years |
| Place of Production | Place of production | Taiwan |

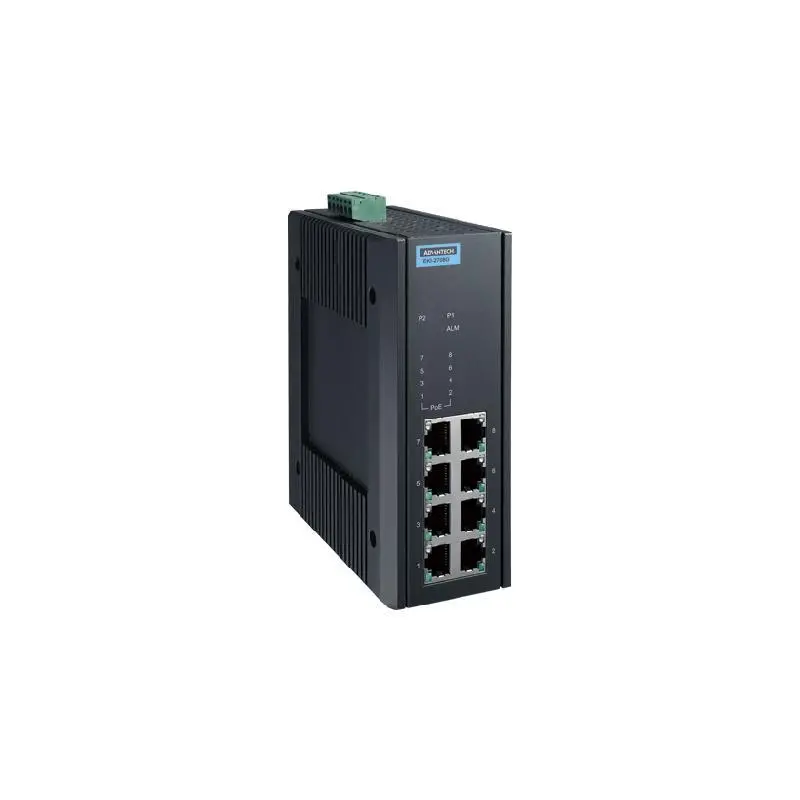

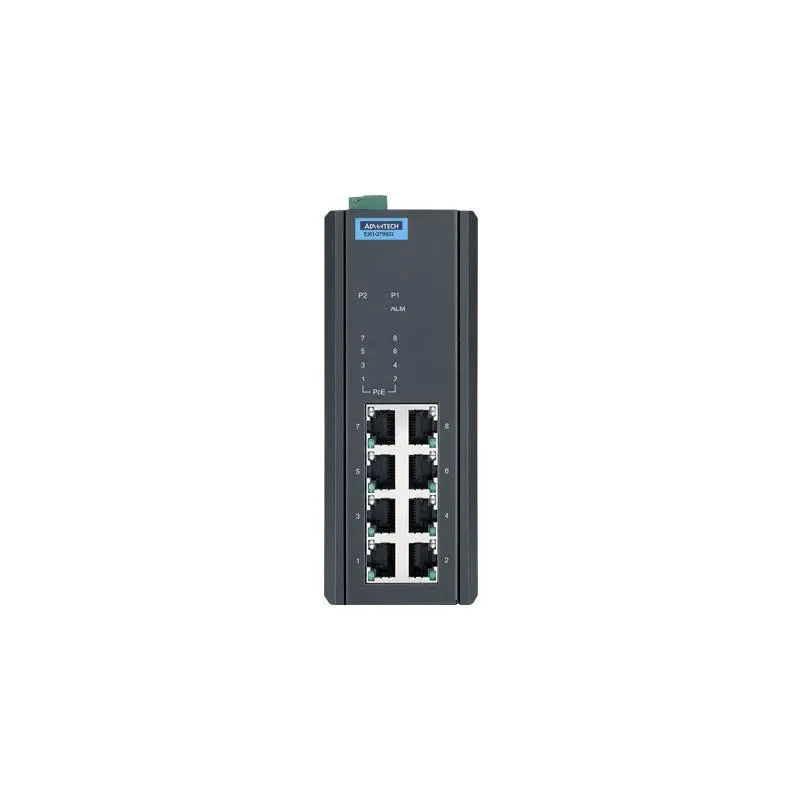

Advantech EKI-2708G-PI 8GE Port Gigabit Unmanaged Industrial PoE Ethernet Switch
