| EKI-5729PI-AE | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| PoE Information | PoE Port Number | 8 |
| Ethernet Communication | Fiber Transmission Distance | - |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 20Gbps |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) |
| Mechanism | IP Rating | IP30 |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | Weight | 0.7 kg |
| Mechanism | Mounting | DIN-rail, Wall |
| Environment | Operating Temperature | -40 ~ 65°C (-40 ~ 149°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% |
| MTBF | Time | 3,858,286 hours |
| MTBF | Method | Telcordia(Relax), GB |
| Power | Power Operating Current | 0.23A @ 24V |
| Power | Power Consumption | Max. 6.8W |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Certification | Safety | IEC/EN 60950-1, UL 61010-2-201 |
| Certification | EMC | CE, FCC, e-Mark |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Vibration | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years |
| Power | Power Input (DC) | 12 ~ 24 VDC |
| Interface | Port Number | 10 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |

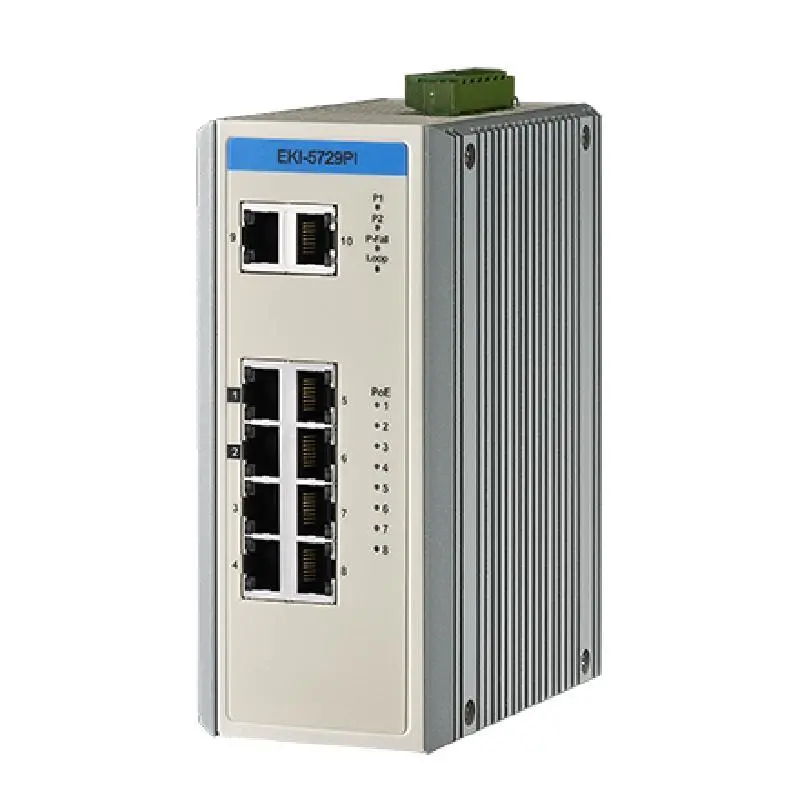

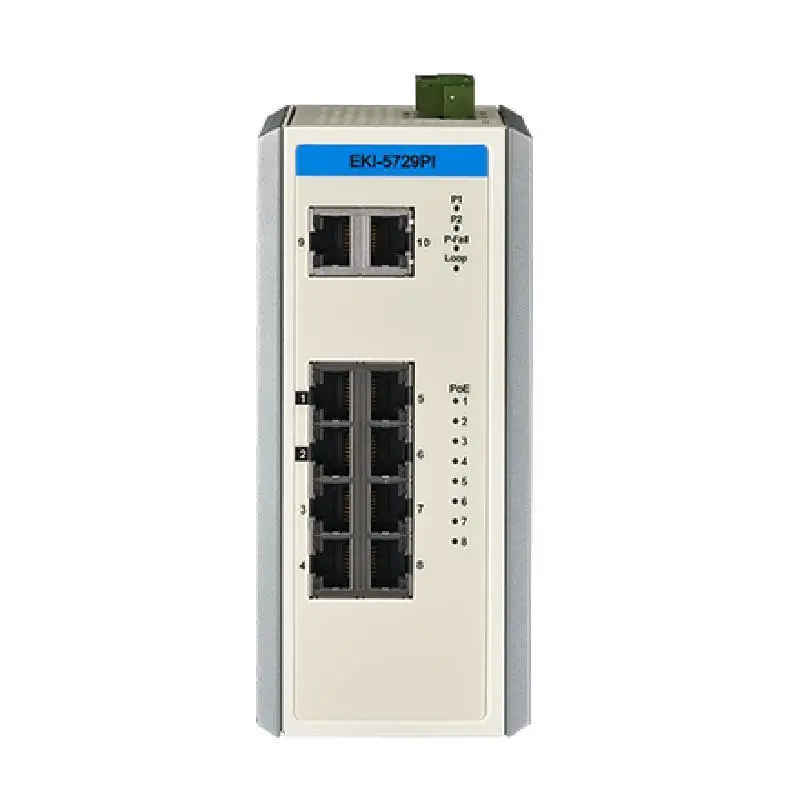

Advantech EKI-5729PI 8GE PoE and 2G Unmanaged Ethernet Switch, IEEE802.3af/at, E-Mark, 12V~24VDC, -40~75℃
