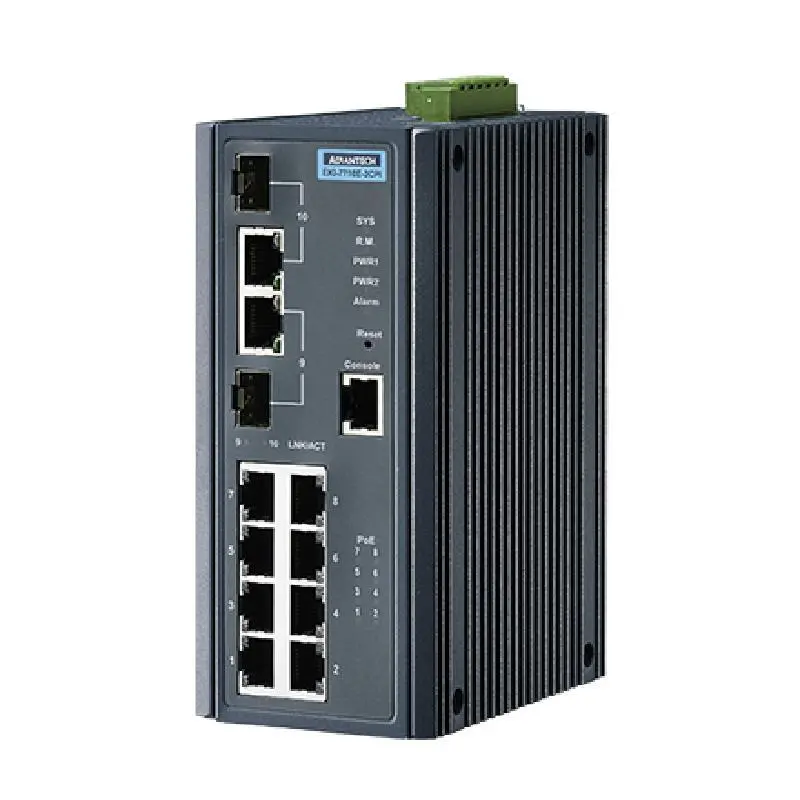

Advantech EKI-7710E-2CPI 8FE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

    8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports

    SFP socket for Easy and Flexible Fiber Expansion

    Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)

    IXM function enables fast deployment

    Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS

    Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB

    -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)

    Dual 24~48 V DC power input and 1 relay output

EKI-7710E-2CPI-AE EKI-7710E-2CPI-AU
Interface Port Number 10 10
Ethernet Communication RJ-45 Port Connector Type 8 x RJ-45 + 2 x RJ-45/SFP combo ports 8 x RJ-45 + 2 x RJ-45/SFP combo ports
Ethernet Communication RJ-45 Transmission Speed 10/100 Mbps ; 10/100/1000 Mbps 10/100 Mbps ; 10/100/1000 Mbps
Power Power Input (DC) 24 ~ 48 VDC 24 ~ 48 VDC
Certification Ethernet Standard IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
Ethernet Communication RJ-45 Transmission Distance 100 m 100 m
PoE Information PoE Port Number 8 8
Ethernet Communication Fiber Transmission Distance Up to 110 km Up to 110 km
Switch Properties MAC Table Size 8K 8K
Switch Properties Packet Buffer Size 4.1M bit 4.1M bit
Switch Properties Switch Fabric Speed 5.6Gbps 5.6Gbps
Switch Properties Jumbo Frame 9,216 bytes 9,216 bytes
Mechanism Dimensions (W x H x D) 74 x 152 x 105 mm (2.91 x 5.98 x 4.13) 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
Mechanism IP Rating IP30 IP30
Mechanism Enclosure (Metal) Metal Metal
Mechanism Weight 1.2 kg 1.2 kg
Mechanism Mounting DIN-rail, Wall DIN-rail, Wall
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F) -40 ~ 75°C (-40 ~ 167°F)
Environment Relative Humidity 10~95% 10~95%
MTBF Time 858,835 hours 858,835 hours
MTBF Method Telcordia(Relax), GB Telcordia(Relax), GB
Power Power Operating Current 0.25A @ 48VDC (system) 0.25A @ 48VDC (system)
Power Power Consumption 12.1W (system) 12.1W (system)
Power Power Connector Type 6-pin removable screw terminal (power & relay) 6-pin removable screw terminal (power & relay)
Certification Safety UL60950, UL 508 UL60950, UL 508
Certification EMI CE, FCC Class A CE, FCC Class A
Certification EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification Shock IEC 60068-2-27 IEC 60068-2-27
Certification Freefall IEC 60068-2-32 IEC 60068-2-32
Certification Vibration IEC 60068-2-6 IEC 60068-2-6
Warranty Warranty Period 5 years 5 years
Place of Production Place of production China Taiwan
