| EKI-7428G-4CPI-AE | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3z, 802.3af/at |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| PoE Information | Support PoE | Yes |
| PoE Information | PoE Port Number | 24 |
| PoE Information | PoE Budget | 685W |
| PoE Information | PoE Output | 25.5W |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 56Gbps |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) |
| Mechanism | IP Rating | IP30 |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | Weight | 3.8 kg |
| Mechanism | Mounting | 1U 19" Rack mount |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% |
| MTBF | Time | 424,517 hours |
| MTBF | Method | Telcordia(Relax), GB |
| Power | Power Operating Current | 0.4A @ 48V |
| Power | Power Consumption | 20W (system) |
| Power | Power Connector Type | 4-pin removable screw terminal (power & relay) |
| Certification | Safety | UL 61010-2-201 |
| Certification | EMC | CE, FCC |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Vibration | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years |

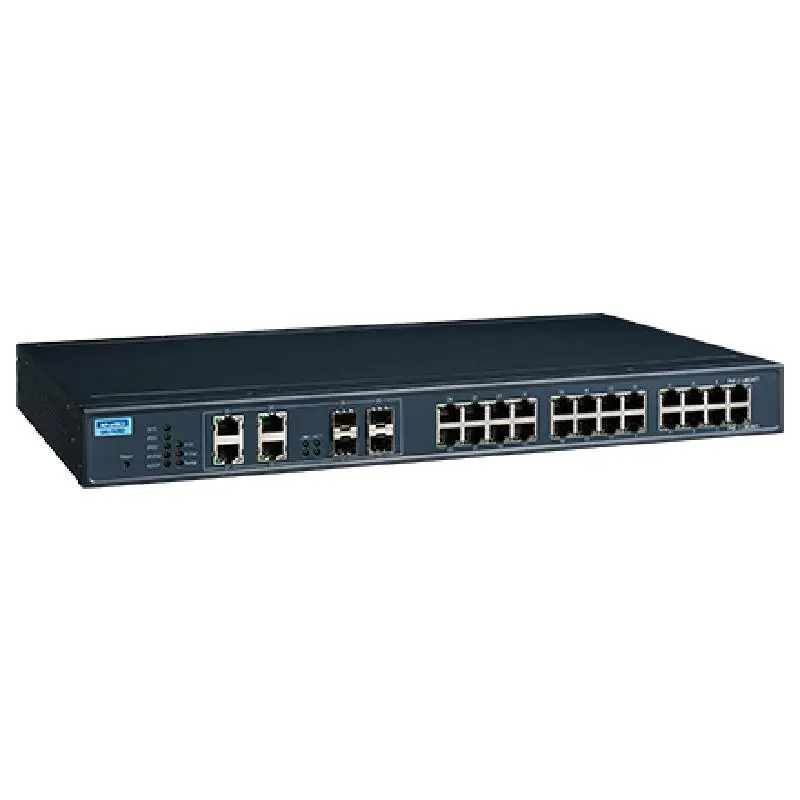

Advantech EKI-7428G-4CPI 24GE PoE and 4G Combo Managed Ethernet Switch, IEEE802.3af/at, 19" Rackmount, -40~75℃, 46~57VDC
