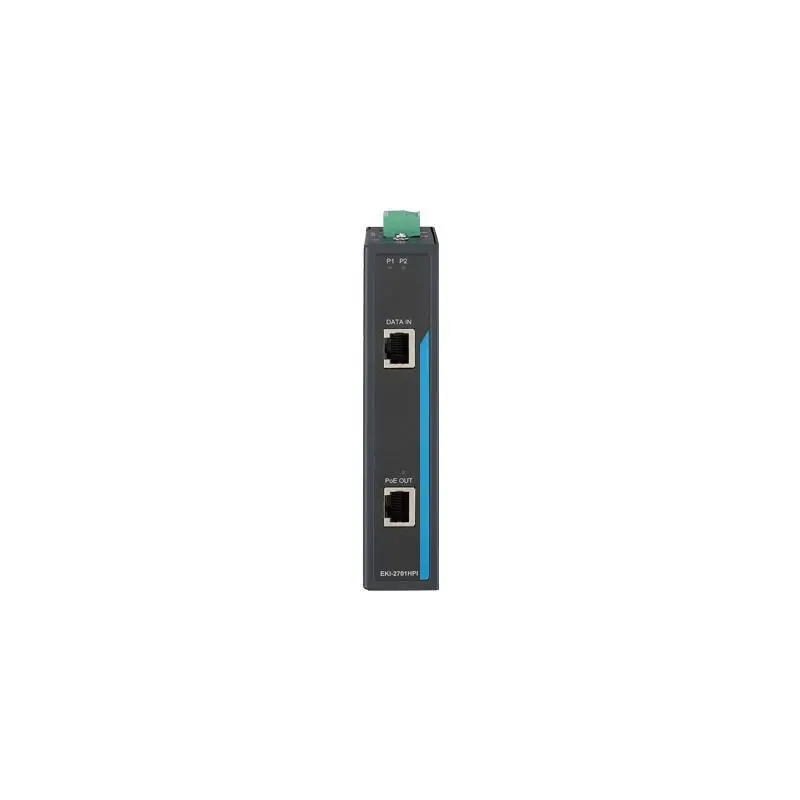

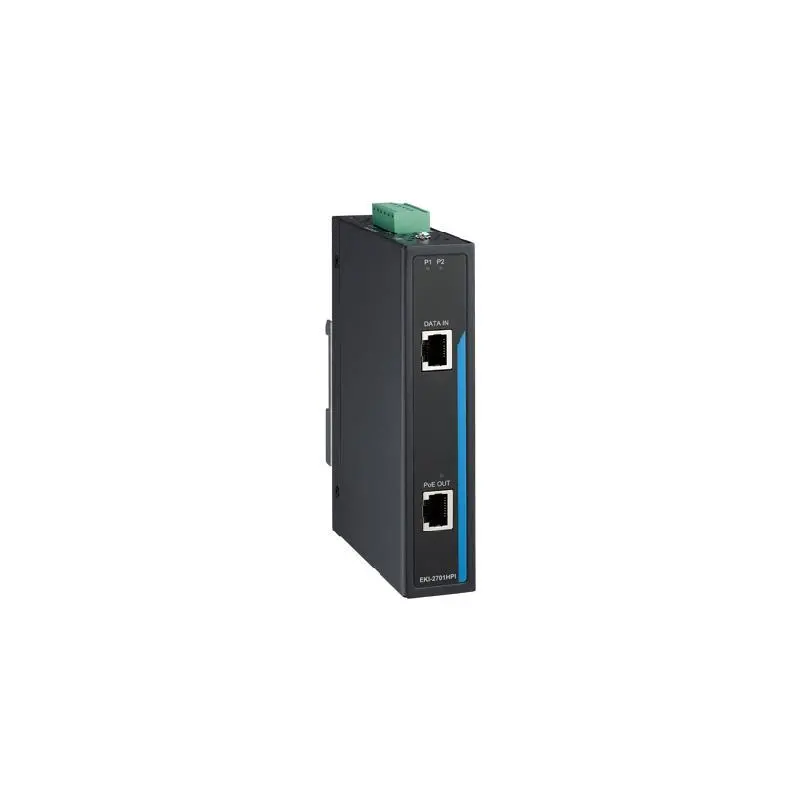

Advantech EKI-2701HPI 1GE PoE Injector, IEEE802.3af/at, 24~48VDC, -40~75℃

Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

IEEE 802.3af/at compliant, supports a full 30 watt output

Power input (24 ~ 48 VDC), inject 30 W for each port

Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism

Supports operating temperatures from -40 to 75°C

		EKI-2701HPI-AE
Interface	Port Number	2
Ethernet Communication	Ethernet Standard	IEEE 802.3 , 802.3ab , 802.3af , 802.3at , 802.3u , 802.3x
Ethernet Communication	RJ-45 Transmission Speed	10/100/1000 Mbps
Ethernet Communication	RJ-45 Transmission Distance	100 m
Power	Power Consumption	Max. 35W (Full load PoE)
Power	Power Input (DC)	24 ~ 48 VDC, redundant dual power inputs
Mechanism	Dimensions (W x H x D)	27 x 120 x 85 mm (1.06 x 4.72 x 3.34 in.)
Mechanism	Enclosure (Metal)	Metal shell with solid mounting kits
Mechanism	Mounting (Wall)	Yes

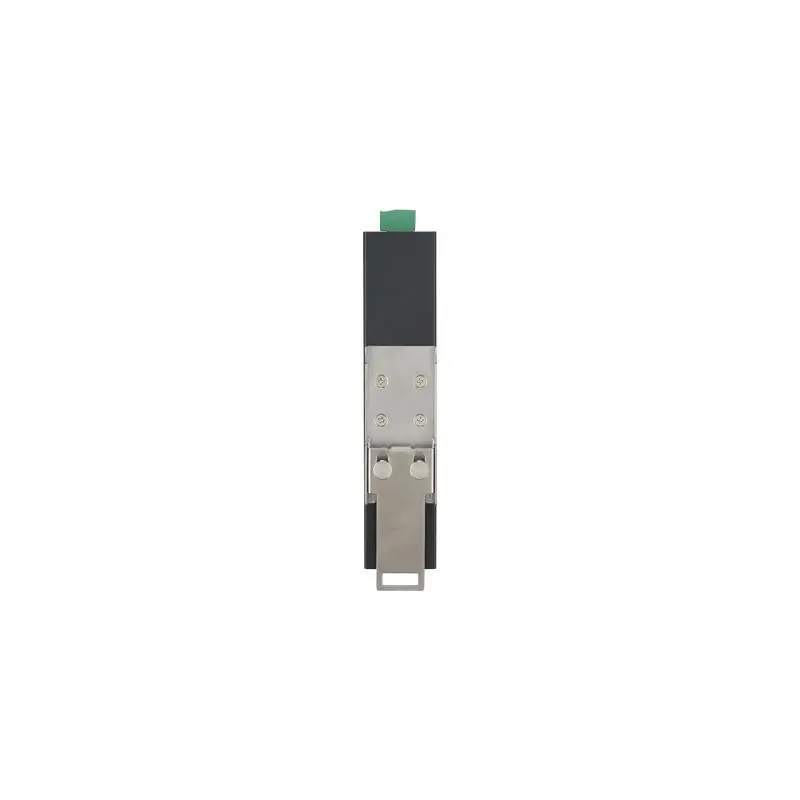

Mechanism	Mounting (DIN-rail)	Yes
Protection	Reverse Polarity	Present
Protection	Overload Current	Present
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Environment	Operating Humidity	5~95% (non-condensing)
Environment	Storage Humidity	0~95% (non-condensing)
Mechanism	IP Rating	IP30
