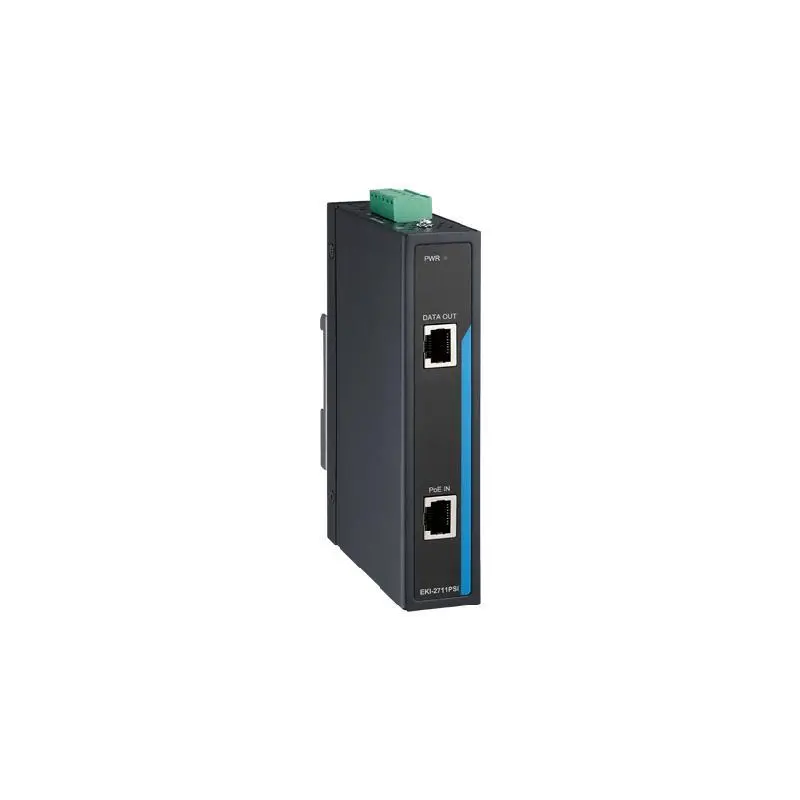

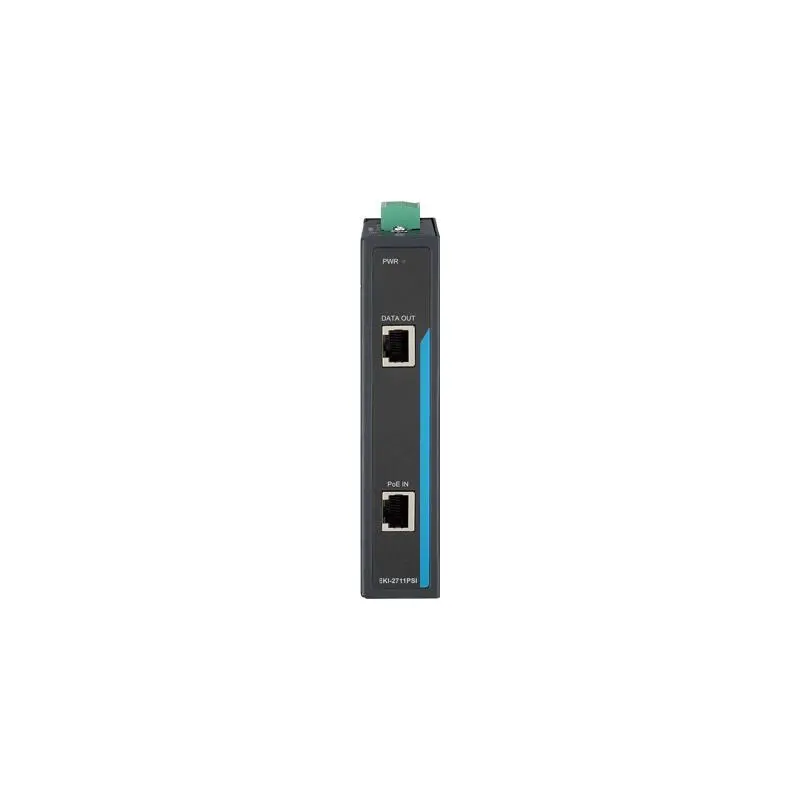

Advantech EKI-2711PSI 1GE PoE Splitter, IEEE 802.3af/at, -40~75℃

    Supports 10/100/1000Base-T(X) for Power over Ethernet (PoE) input and data output.

    Delivers up to 25 watts of power while separating power and data from PoE sources.

    Features power isolation and short-circuit protection for enhanced power output safety.

    Wide operating temperature range: -40°C to 75°C, suitable for harsh environments

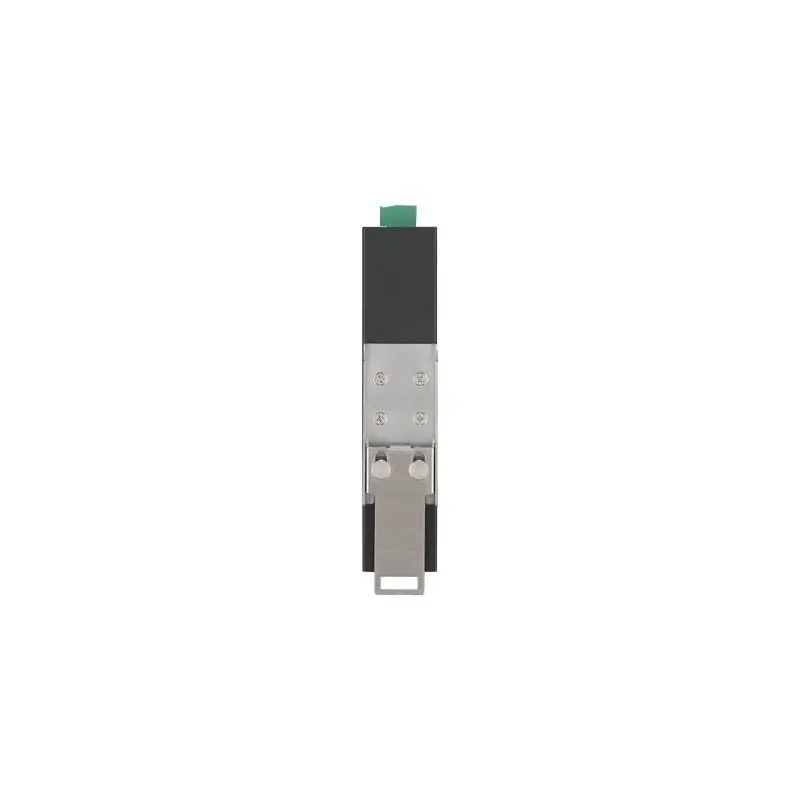

    Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions

EKI-2711PSI-A
Ethernet Communication RJ-45 Transmission Distance Up to 100 m
Ethernet Communication RJ-45 Transmission Speed 10/100/1000 Mbps
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
Power Power Consumption Max. 30W
Ethernet Communication RJ-45 Port Connector Type PoE IN: RJ-45, DATA OUT: RJ-45 10/100/1000 Ethernet
Power Power Output Max. 25W @ 24VDC
Interface Port Number 2
