| EKI-2742FPI-B | ||
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.3af/at |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| PoE Information | PoE Port Number | 2 |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Switch Properties | Switch Fabric Speed | 1.0Gbps |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Mechanism | Dimensions (W x H x D) | 36.7 x 108.4 x 103.5 mm |
| Mechanism | IP Rating | IP31 |
| Mechanism | Enclosure (Metal) | Metal |
| Mechanism | Weight | 0.45 kg (1.0 lb) |
| Mechanism | Mounting | DIN-rail, Wall mount |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Relative Humidity | 10~95% |
| Power | Power Consumption | Max. 64.5W |
| Power | Power Connector Type | 2-pin removable screw terminal |
| Certification | Safety | LVD 62368-1 |
| Certification | EMC | CE, FCC |
| Certification | EMI | EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Vibration | IEC 60068-2-6 |
| Warranty | Warranty Period | 5 years |

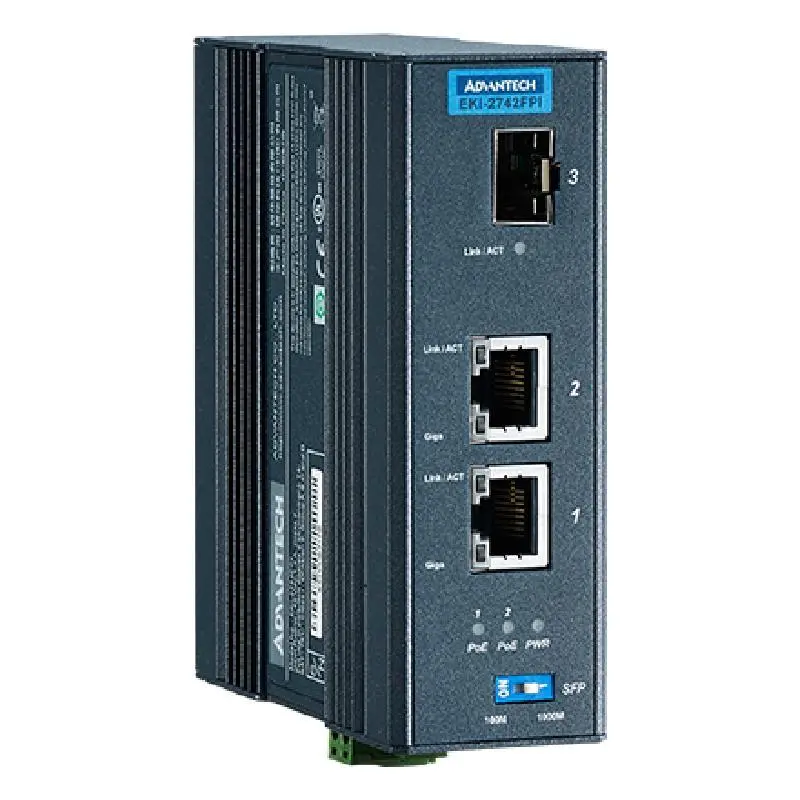

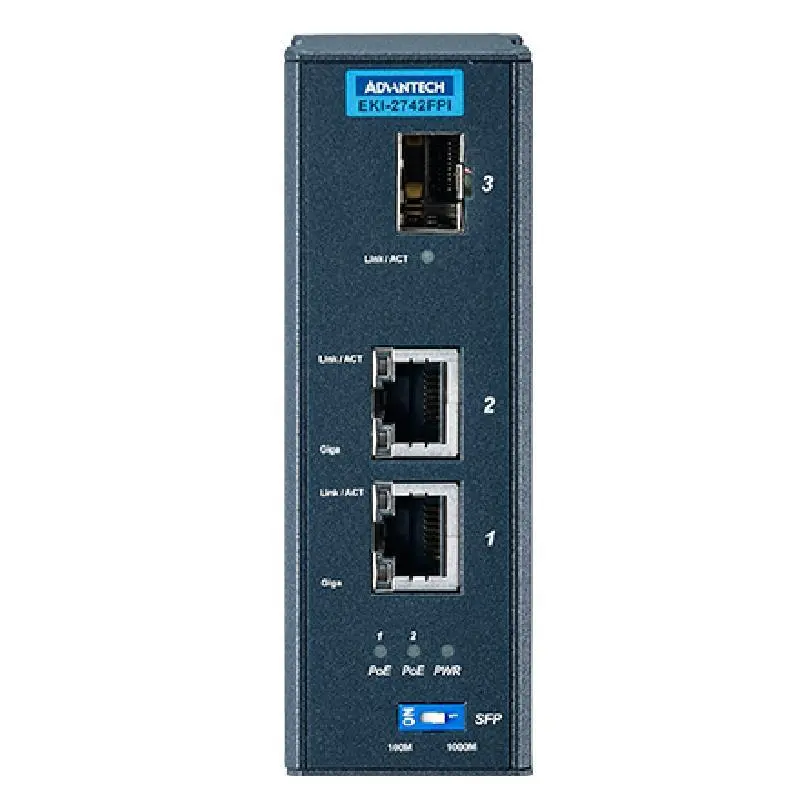

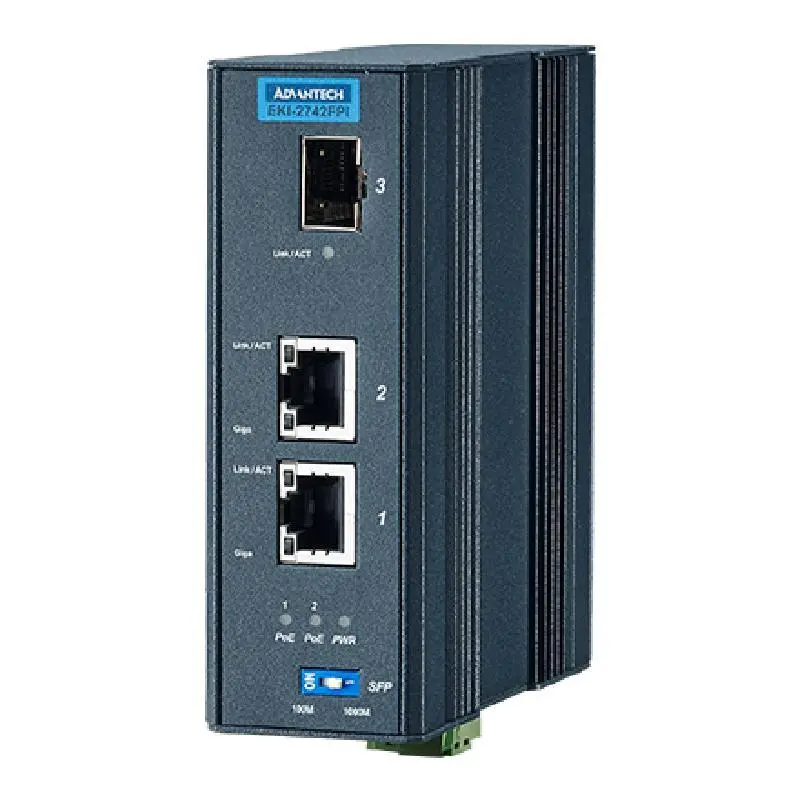

Advantech EKI-2742FPI 2GE PoE, SFP Injector, IEEE802.3af/at, 24~48VDC, -40~75℃
