| EKI-5726I-MB-AE | ||
| Certification | EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) |
| Certification | EMI | CE, FCC Class A |
| Certification | EMS | - |
| Certification | Ethernet Standard | IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az |
| Certification | Freefall | IEC 60068-2-32 |
| Certification | Safety | UL 508 |
| Certification | Shock | IEC 60068-2-27 |
| Certification | Vibration | IEC 60068-2-6 |
| Environment | Relative Humidity | 10~95% |
| Environment | Temperature (Max. Operating) | 75°C (167°F) |
| Environment | Temperature (Min. Operating) | -40°C (-40°F) |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 16 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Protocol Support | Modbus TCP | Yes |
| Protocol Support | PROFINET | - |
| Protocol Support | EtherNet/IP | - |
| Protocol Support | Ethernet | Yes |
| Mechanism | Dimensions (W x H x D) | 74 x 120 x 84 mm |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 0.7 kg |
| MTBF | Method | Telcordia(Relax), GB |
| MTBF | Time | 2,788,343 hours |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 8W |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - |
| Power | Redundant Dual Inputs | - |
| Protection | Reverse Polarity | Present |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 32Gbps |
| Warranty | Warranty Period | 5 years |

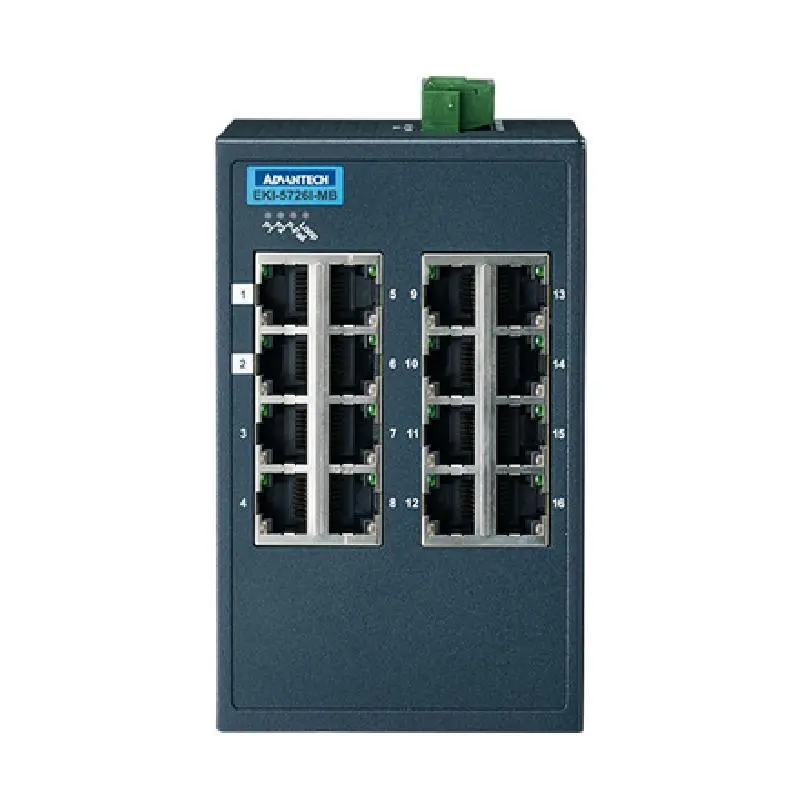

Advantech EKI-5726I-MB 16 port Entry-Level Managed Switch
