| EKI-9508E-L-AE | ||
| Certification | EMC | CE, EN55032/24, EMC DIRECTIVE 2014/30/EU |
| Certification | EMI | CISPR 32, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Certification | Vertical Market | EN50155, EN50121-3-2, EN61000-6-2 |
| Certification | Freefall | IEC 60068-2-31 |
| Certification | Shock | IEC 61373 |
| Certification | Vibration | IEC 61373 |
| Environment | Operating Humidity | 5~95% |
| Environment | Relative Humidity | 5~95% |
| Environment | Operating Temperature | -40 ~ 70°C (-40 ~ 158°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Ethernet Standard | IEEE 802.3 , 802.3u , 802.3ab , 802.3x |
| Ethernet Communication | RJ-45 Port Connector Type | M12 (4pin D-Coded) for 10/100Mbps port |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Ethernet Communication | RJ-45 Port Number | 8 |
| Ethernet Communication | Bypass Function (Pair) | 0 |
| Ethernet Communication | RJ-45 Transmission Distance | NA |
| Ethernet Communication | Fiber Port Connector Type | NA |
| Ethernet Communication | Fiber Port Interface | NA |
| Mechanism | Dimensions (W x H x D) | 122.5 x 179.4 x 71.8 mm |
| Mechanism | Enclosure (Metal) | Metal shell |
| Mechanism | IP Rating | IP40 |
| Mechanism | Mounting (DIN-rail) | By additional bracket |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 1.3 kg |
| MTBF | Method | Telcordia, GM |
| Power | Power Connector Type | M12 (4 pin A-coded) |
| Power | Power Consumption | 5W |
| Power | Power Input (DC) | 24/ 28/ 36/ 48 VDC |
| Power | Power Operating Current | 0.09 A @ 110 VDC (system) |
| Power | Power Operating Voltage | 16.8 ~ 60 VDC |
| Protection | Reverse Polarity | Present |
| Power | Redundant Dual Inputs | Yes |
| Protection | Overload Current | Present |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 1.5M bit |
| Switch Properties | Switch Fabric Speed | 1.6Gbps |
| Warranty | Warranty Period | 5 years |

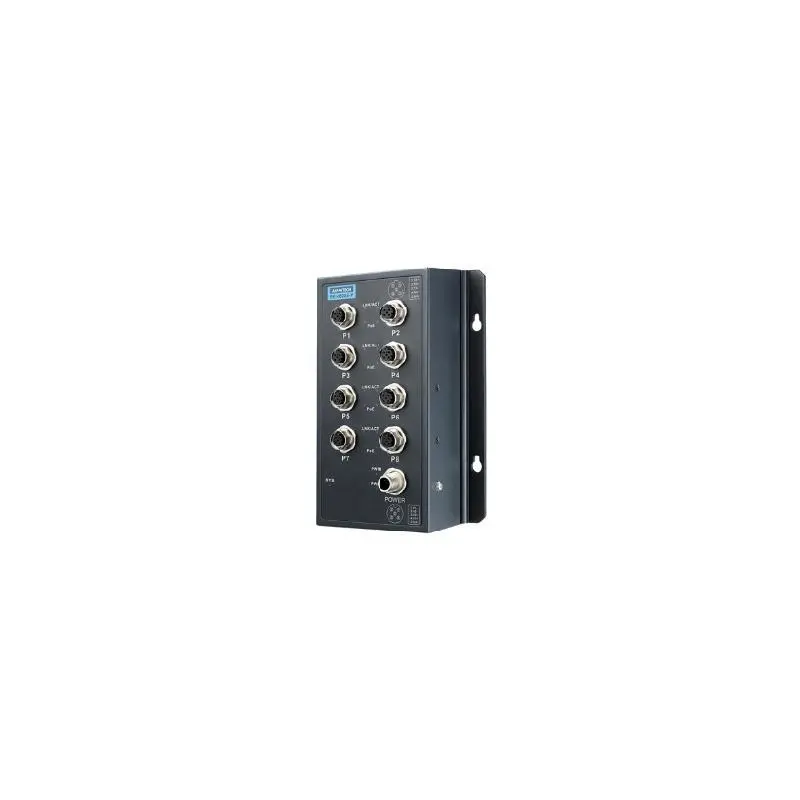

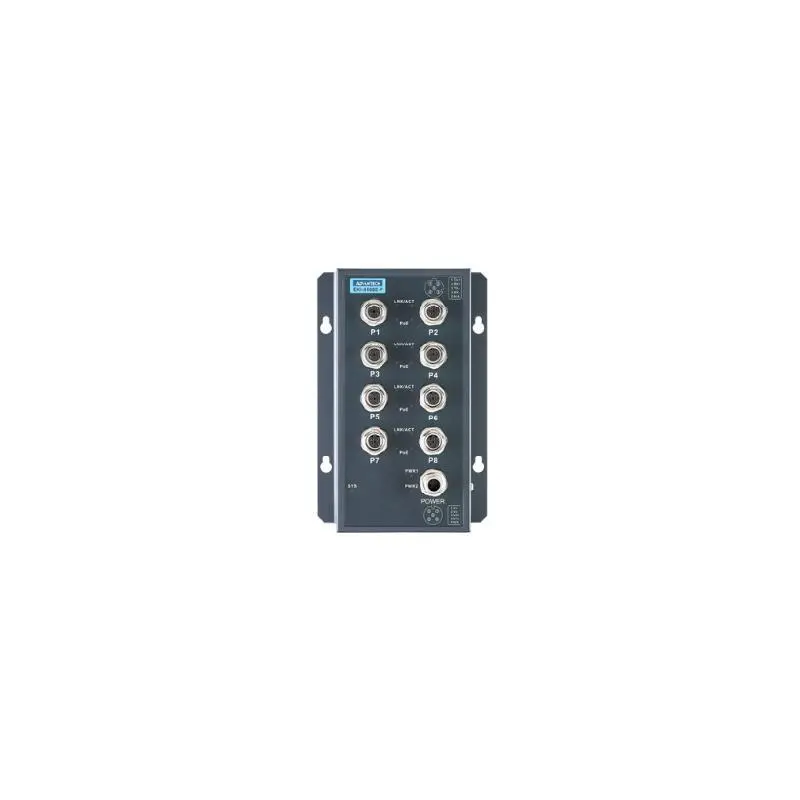

Advantech EKI-9508E-L EN50155 Unmanaged Ethernet Switch with 8FE, 24-48 VDC
