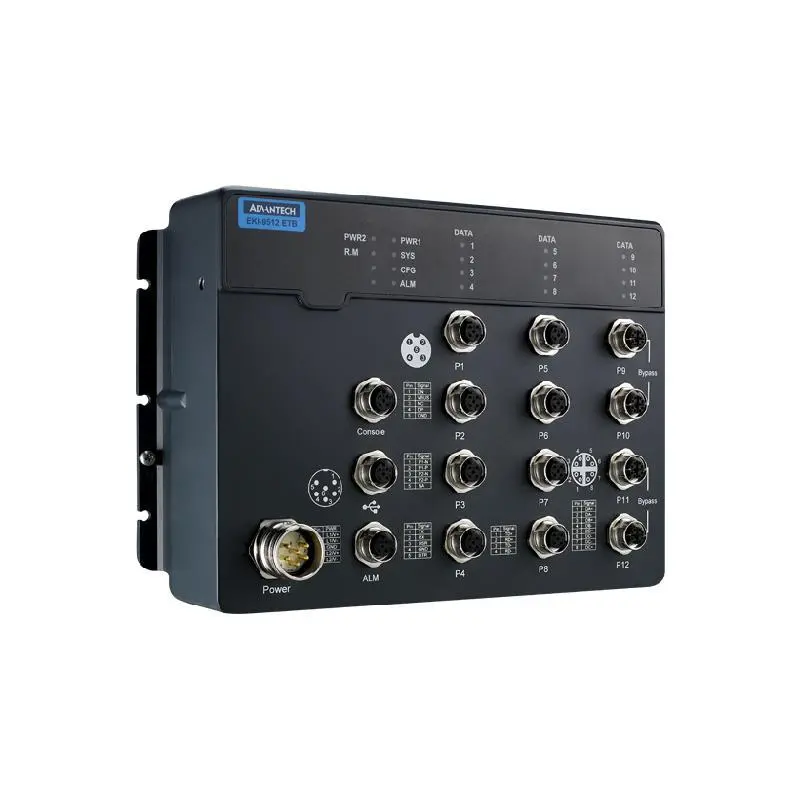

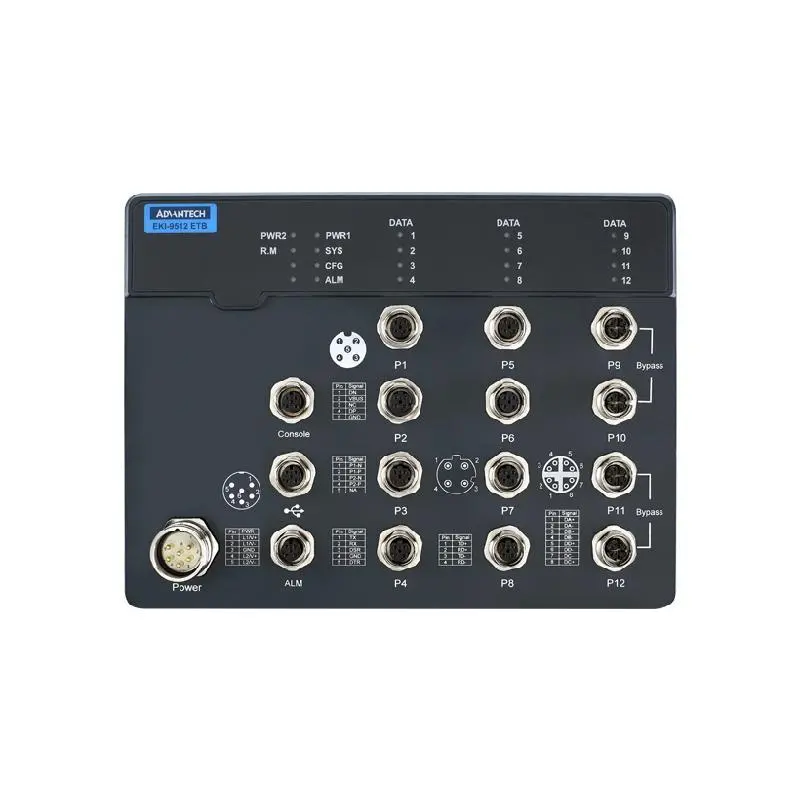

Advantech EKI-9512E-4GETB ETB Router with 8 x Fast Ethernet + 4 x Giga Ethernet enables bypass function and dual wide voltage power input

Designed for rolling stock Ethernet Train Backbone (ETB)

Complies with EN50155, EN50121-3-2 and EN4554 5-2 electronic equipment standards

Provides 4 x M12 Giga Ethernet connectors with dual bypass relay

Provides M12 connectors with IP67 protection

Wide operating temperature support (-40 ~ 75 °C/-40 ~ 167 °F)

Compatible with IEC 61375-2-3/2-5 standards

TTDP function enables automatic IP address configuration

Isolated power with wide nominal power input range (24 ~ 110VDC)

Operating power input range: 16.8 ~ 137.5VDC
