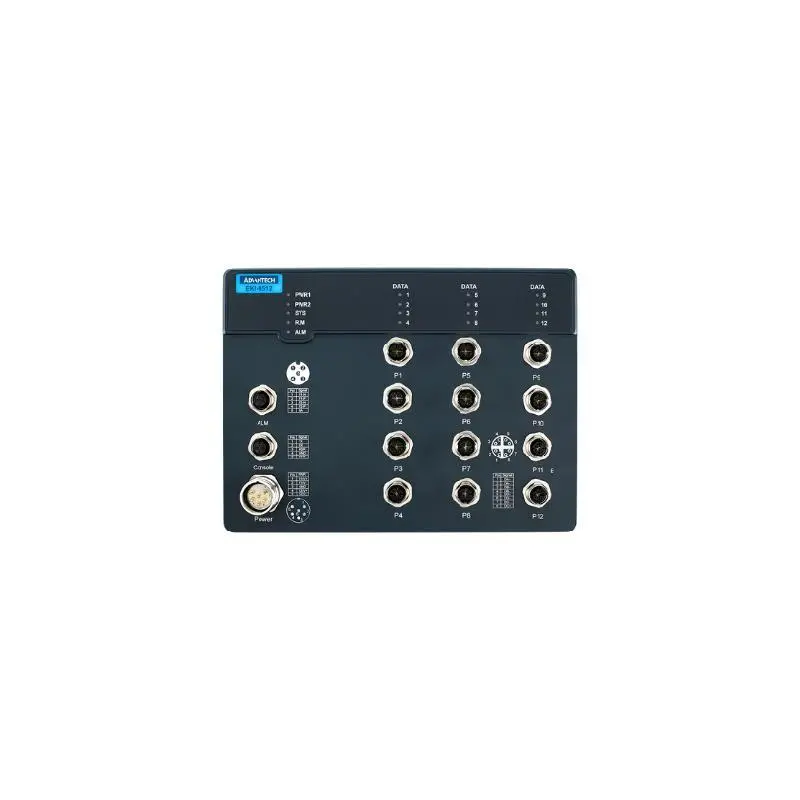

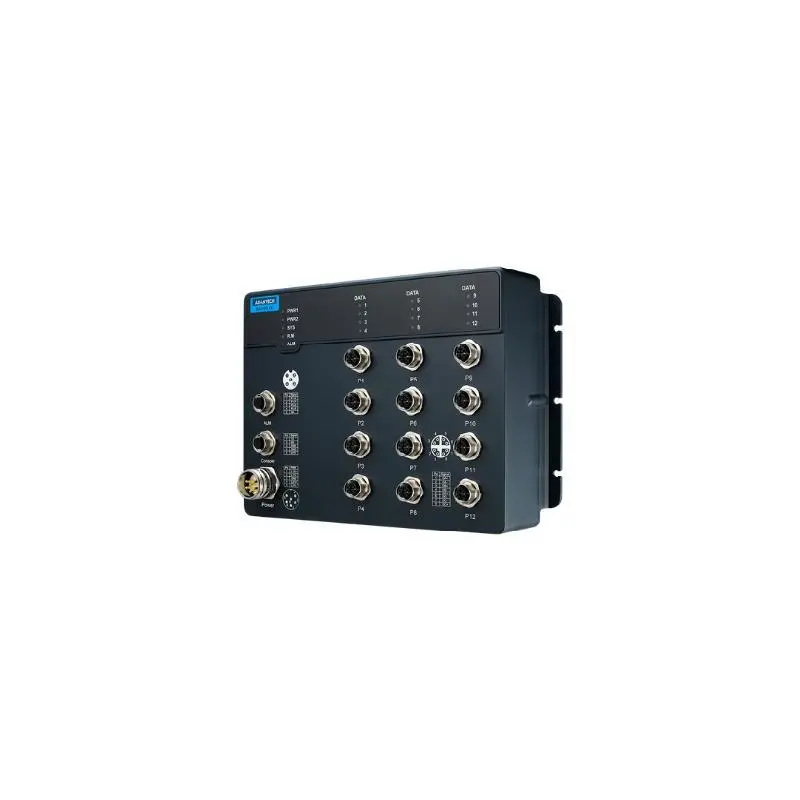

Advantech EKI-9512G-4GMX EN50155 Managed Ethernet Switch with 12GE, 24-110VDC

    12 x M12 X-Coded 10/100/1000 Mbps ports

    Complies with EN50155 & EN50121-3-2

    Operating temperature: -40 ~ 75°C

    Operating power input range: 16.8~137.5VDC

    Supports X-Ring Pro for rapid and predictable convergence

    Supports IXM for fast and easy maintenance

    Supports N-Key for quick configuration and backup

    M12 connector with IP67 rugged housing

EKI-9512G-4GMX-AE
Ethernet Communication M12 D-code (10/100Base-T) Number 0
Ethernet Communication M12 X-code (10/100/1000Base-T) Number 12
Ethernet Communication Bypass Function (Pair) 0
Switch Properties Jumbo Frame 9,216 bytes
Switch Properties MAC Table Size 8K
Switch Properties Packet Buffer Size 4.1M bit
Switch Properties Switch Fabric Speed 24Gbps
Certification EMC CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
Certification EMI CISPR 32, FCC Part 15 Subpart B Class A
Certification EMS EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
Certification Vertical Market EN50155, EN50121-3-2, EN61000-6-2
Certification Freefall IEC 60068-2-31
Certification Shock IEC 61373
Certification Vibration IEC 61373
Environment Relative Humidity 5~95%
Environment Operating Temperature -40 ~ 75°C (-40 ~ 167°F)
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Mechanism Dimensions (W x H x D) 254 x 174 x 64.5 mm
Mechanism Enclosure (Metal) Aluminum die-casting
Mechanism IP Rating IP67
Mechanism Mounting (Wall) Yes
Mechanism Weight 3.7 kg
Power Power Connector Type M23
Power Power Consumption 17W (system)
Power Power Input (DC) 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC
Power Power Operating Current 0.15A @ 110VDC (system)
Power Power Operating Voltage 16.8 ~ 137.5 VDC
Protection Reverse Polarity Present
Power Redundant Dual Inputs Yes
Protection Overload Current Present
Warranty Warranty Period 5 years
