| EKI-9516E-4GMPW-AE | ||
| Ethernet Communication | M12 D-code (10/100Base-T) Number | 12 |
| Ethernet Communication | M12 X-code (10/100/1000Base-T) Number | 4 |
| Ethernet Communication | Bypass Function (Pair) | 2 |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 10.4Gbps |
| Certification | EMC | CE, EN55032/24, EMC DIRECTIVE 2014/30/EU |
| Certification | EMI | CISPR 32, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Certification | Vertical Market | EN50155, EN50121-3-2, EN61000-6-2 |
| Certification | Freefall | IEC 60068-2-31 |
| Certification | Shock | IEC 61373 |
| Certification | Vibration | IEC 61373 |
| Environment | Relative Humidity | 5~95% |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 254 x 174 x 64.5 mm |
| Mechanism | Enclosure (Metal) | Aluminum die-casting |
| Mechanism | IP Rating | IP67 |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 3.7 kg |
| PoE Information | PoE Budget | Up to 150W |
| PoE Information | PoE Port Number | 12 |
| Power | Power Connector Type | M23 |
| Power | Power Consumption | 17W (system) |
| Power | Power Input (DC) | 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC |
| Power | Power Operating Current | 0.15A @ 110VDC (system) |
| Power | Power Operating Voltage | 16.8 ~ 137.5 VDC |
| Protection | Reverse Polarity | Present |
| Power | Redundant Dual Inputs | Yes |
| Protection | Overload Current | Present |
| Warranty | Warranty Period | 5 years |

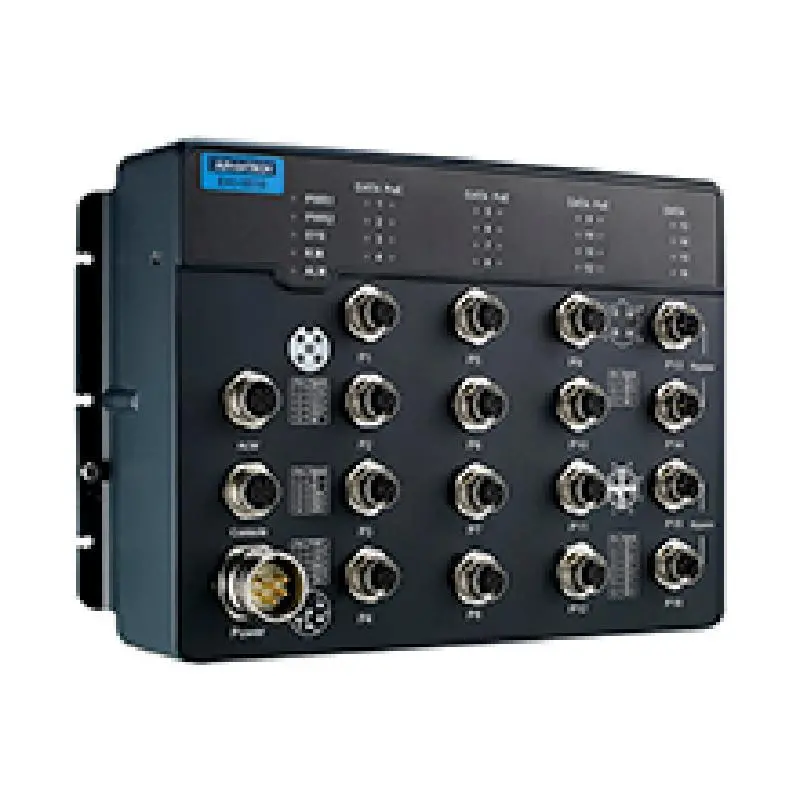

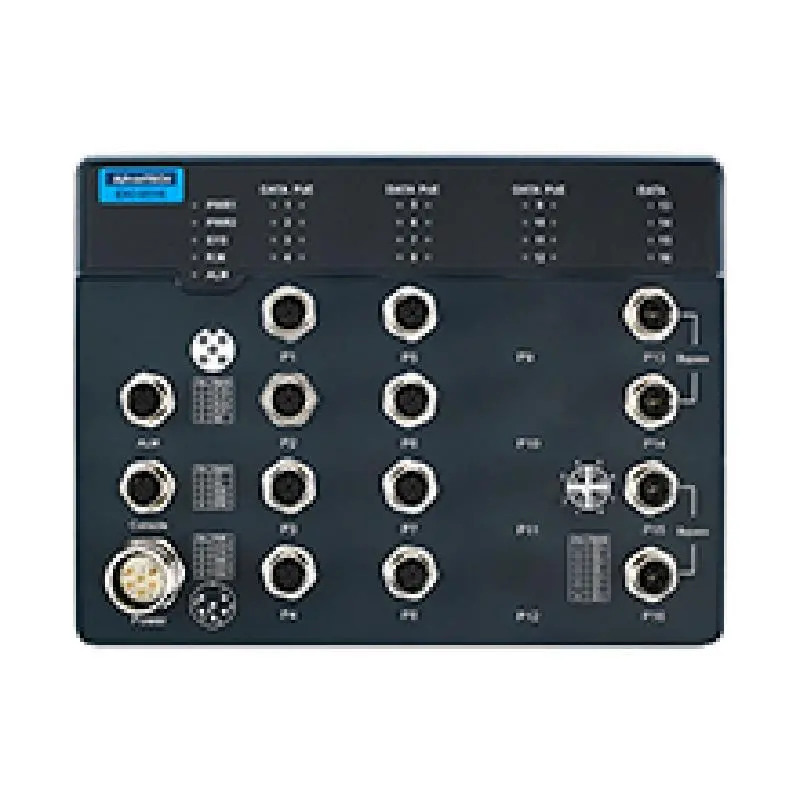

Advantech EKI-9516E-4GMPW EN50155 Managed PoE Ethernet Switch with 12FE+4GE bypass, 24-110VDC
