| EKI-9520H-6XPW-A | ||
| Ethernet Communication | M12 Port Number | 20 |
| Ethernet Communication | M12 X-code (10/100/1000Base-T) Number | 14 |
| Ethernet Communication | M12 X-code (1/2.5/5/10 Gbps) Number | 6 |
| Switch Properties | Jumbo Frame | 10K bytes |
| Switch Properties | MAC Table Size | 32K |
| Switch Properties | Packet Buffer Size | 32M bit |
| Switch Properties | Switch Fabric Speed | 148Gbps |
| Certification | EMC | CE, EN55032/24, EMC DIRECTIVE 2014/30/EU |
| Certification | EMI | CISPR 32, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Certification | Vertical Market | EN50155, EN50121-3-2, EN61000-6-2 |
| Certification | Freefall | IEC 60068-2-31 |
| Certification | Shock | IEC 61373 |
| Certification | Vibration | IEC 61373 |
| Environment | Relative Humidity | 5~95% |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 350 x 148.7 x 96 mm |
| Mechanism | Enclosure (Others) | Die-cast zinc front panel and extruded aluminum chassis |
| Mechanism | IP Rating | IP20 |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 8 kg |
| PoE Information | PoE Budget | 100W |
| PoE Information | PoE Port Number | 14 |
| Power | Power Connector Type | M12 K-coded |
| Power | Power Consumption | Max. 50W (system) |
| Power | Power Input (DC) | 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC |
| Power | Power Operating Current | 0.46A @ 110VDC |
| Power | Power Operating Voltage | 16.8 ~ 137.5 VDC |
| Protection | Reverse Polarity | Present |
| Power | Redundant Dual Inputs | Yes |
| Protection | Overload Current | Present |
| Warranty | Warranty Period | 5 years |
| Environment | Operating Humidity | 5~95% |
| Ethernet Communication | Ethernet Standard | IEEE 802.3 , 802.3u , 802.3ab , 802.3z, 802.3x |
| Ethernet Communication | M12 Port Connector Type | M12 (8 pin X-Coded) |
| Ethernet Communication | M12 Transmission Speed | M12 (8 pin X-Coded) for 10/100/1000 Mbps; M12 (8 pin X-Coded) for 1/2.5/5/10 Gbps |
| Ethernet Communication | M12 Transmission Distance | Up to 100 m |
| Mechanism | Enclosure (Metal) | Metal shell |
| MTBF | Method | Telcordia, GB |

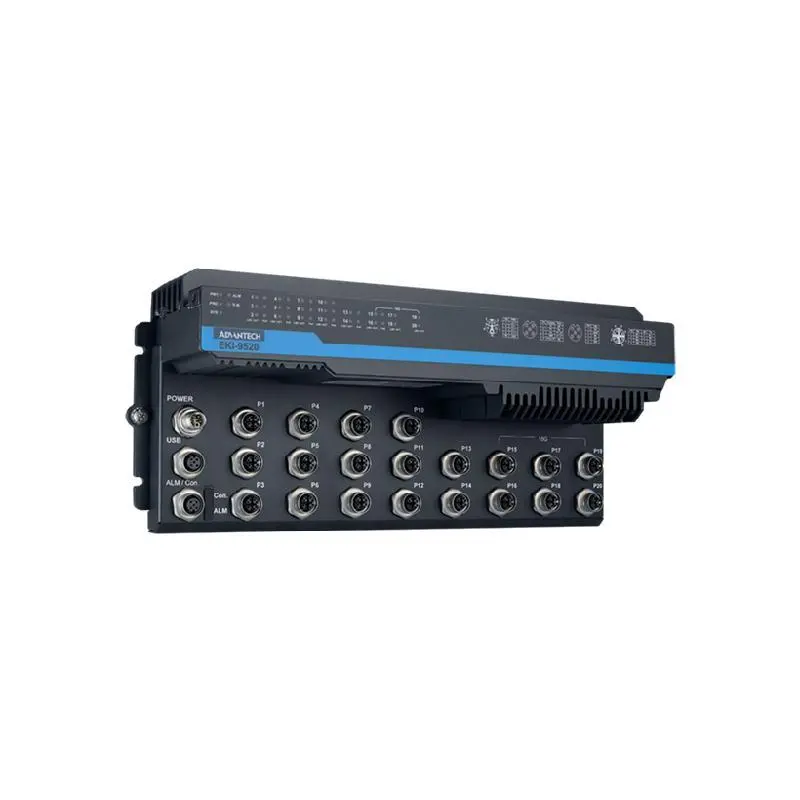

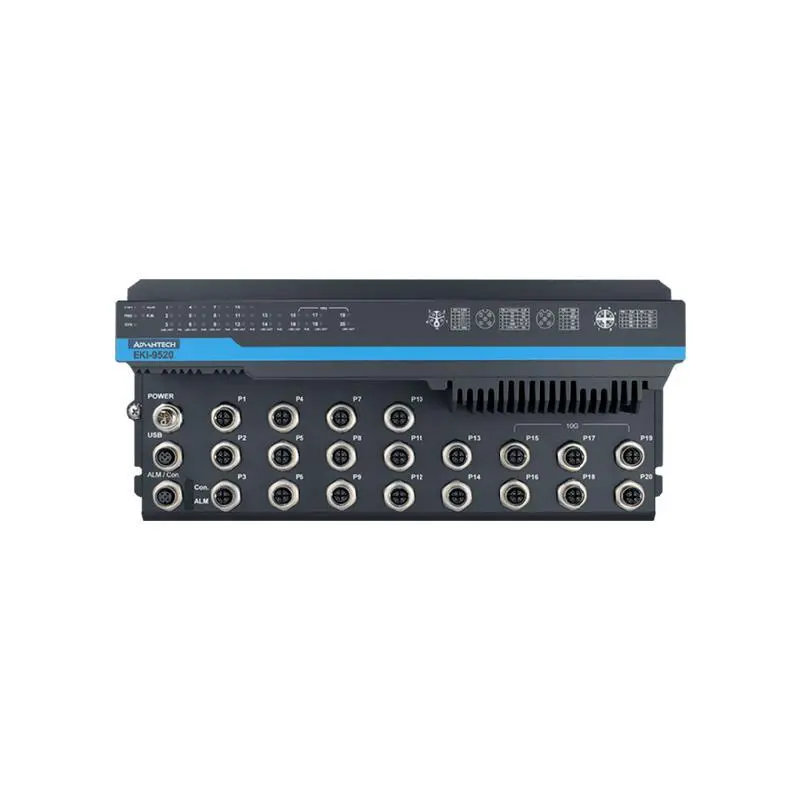

Advantech EKI-9520H-6XPW EN 50155 L2 20-port managed Ethernet switch with up to 6 x 10G ports
