| EKI-9528E-12GMX-A | ||
| Ethernet Communication | M12 D-code (10/100Base-T) Number | 16 |
| Ethernet Communication | M12 X-code (10/100/1000Base-T) Number | 12 |
| Ethernet Communication | Bypass Function (Pair) | 0 |
| Switch Properties | Jumbo Frame | 9,216 bytes |
| Switch Properties | MAC Table Size | 8K |
| Switch Properties | Packet Buffer Size | 4.1M bit |
| Switch Properties | Switch Fabric Speed | 27.2Gbps |
| Certification | EMC | CE, EN55032/24, EMC DIRECTIVE 2014/30/EU |
| Certification | EMI | CISPR 32, FCC Part 15 Subpart B Class A |
| Certification | EMS | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3) |
| Certification | Vertical Market | EN50155, EN50121-3-2, EN61000-6-2 |
| Certification | Freefall | IEC 60068-2-31 |
| Certification | Shock | IEC 61373 |
| Certification | Vibration | IEC 61373 |
| Environment | Relative Humidity | 5~95% |
| Environment | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Mechanism | Dimensions (W x H x D) | 300 x 105 x 105 mm (11.8 x 4.1 x 4.1 in.) without bracket |
| Mechanism | Enclosure (Others) | Die-cast zinc front panel and extruded aluminum chassis |
| Mechanism | IP Rating | IP54 |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 6.4 kg |
| Power | Power Connector Type | M12 K-coded |
| Power | Power Consumption | 25W (system) |
| Power | Power Input (DC) | 24/ 28/ 36/ 48/ 72 / 96 / 110 VDC |
| Power | Power Operating Current | 0.23A @ 110VDC (system) |
| Power | Power Operating Voltage | 16.8 ~ 137.5 VDC |
| Protection | Reverse Polarity | Present |
| Power | Redundant Dual Inputs | Yes |
| Protection | Overload Current | Present |
| Warranty | Warranty Period | 5 years |

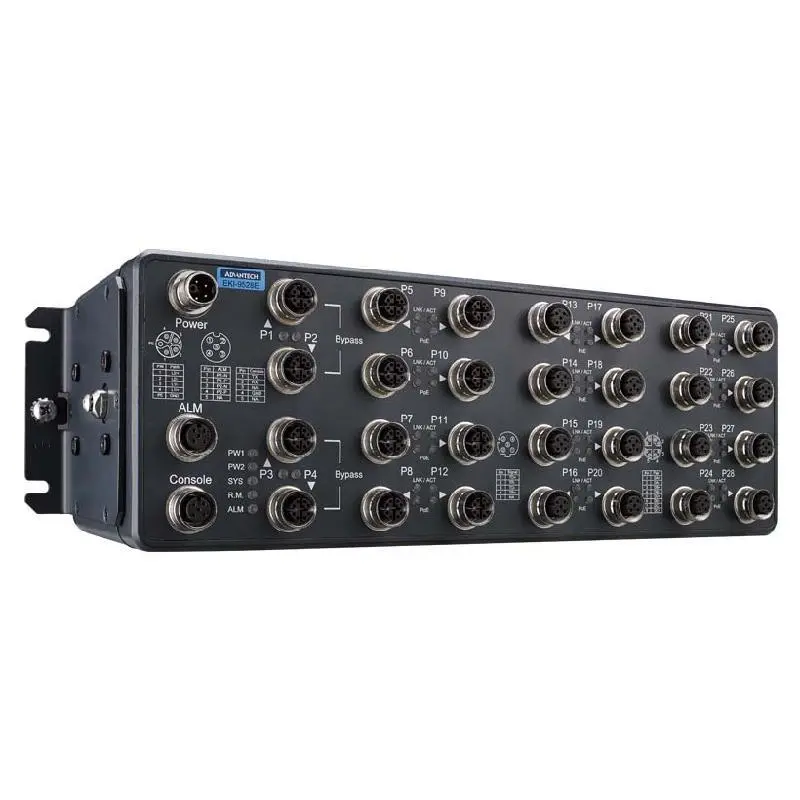

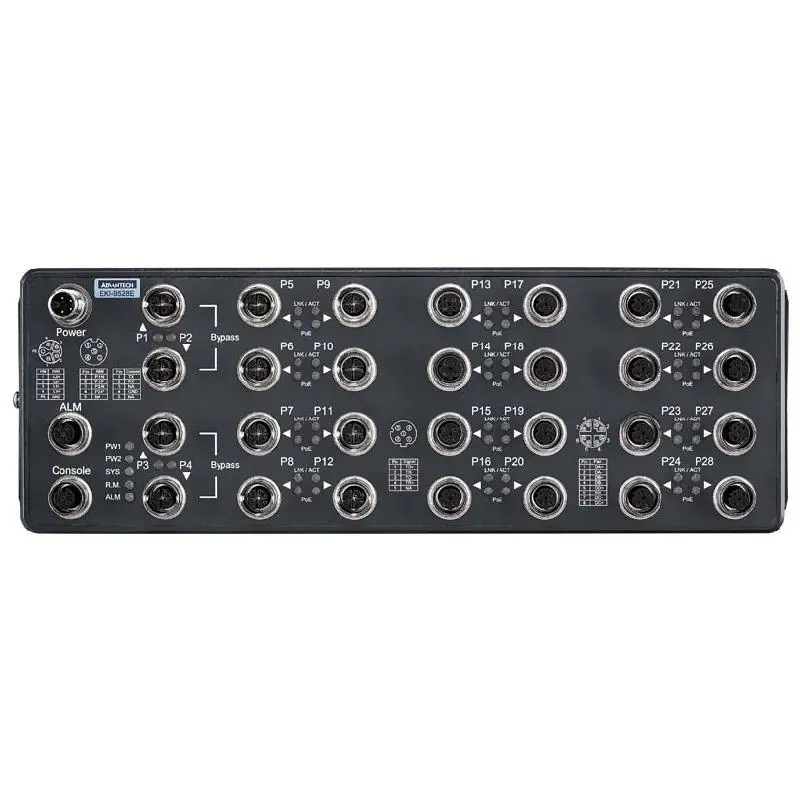

Advantech EKI-9528E-12GMX EN50155 Managed Ethernet Switch with 16xFE+12xGE, 24-110VDC
