| IMC-350I-M8ST-B | ||
| Ethernet Communication | Fiber Port Number | 1 |
| Ethernet Communication | RJ-45 Port Number | 1 |
| Mechanism | Number of Slot | 0 |
| Ethernet Communication | Fiber Transmission Speed | 10/100 Mbps |
| Ethernet Communication | Fiber Port Optical Mode | Multi-Mode |
| Ethernet Communication | Fiber Transmission Wavelength | 850 nm |
| Ethernet Communication | Fiber Transmission Distance | 2 km |
| Ethernet Communication | Fiber Port Connector Type | ST type |
| PoE Information | PoE-PD | Yes |
| Mechanism | Dimensions (W x H x D) | 2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.) |
| Mechanism | Weight | 0.3 kg (0.7lb) |
| Environment | Operating Temperature | -25 ~ 75°C (-13 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Environment | Operating Humidity | 5~95% |
| Certification | Safety | UL/cUL |
| Certification | EMC | CE, FCC Class A, CSA |
| Power | Power Input (DC) | 7 ~ 50 VDC, 1A |

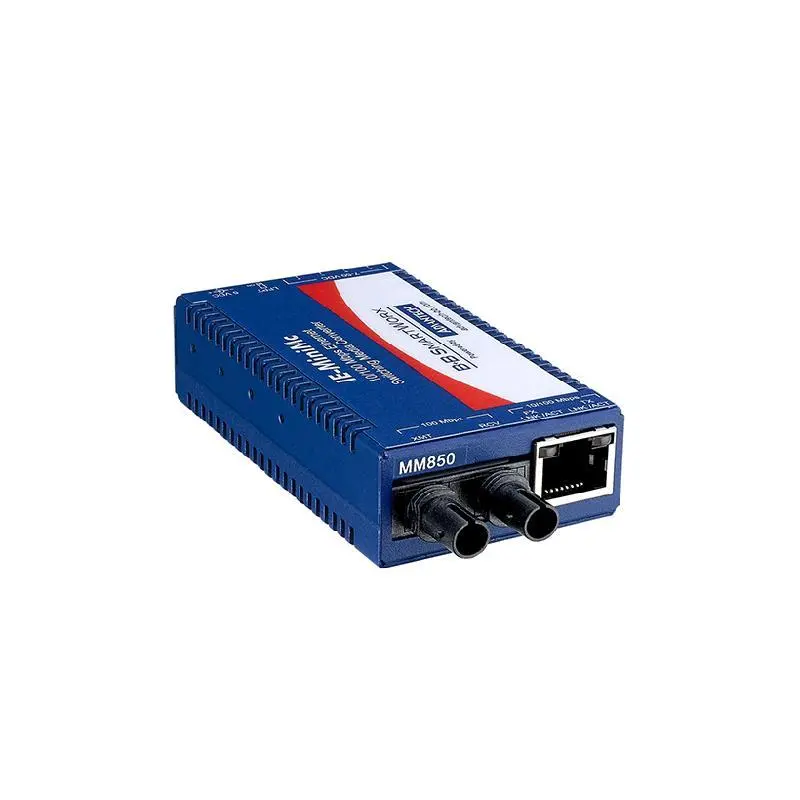

Advantech IMC-350I-M8ST Mini Hardened Media Converter,100Mbps, Multimode 850nm, LFPT, 2km, ST
