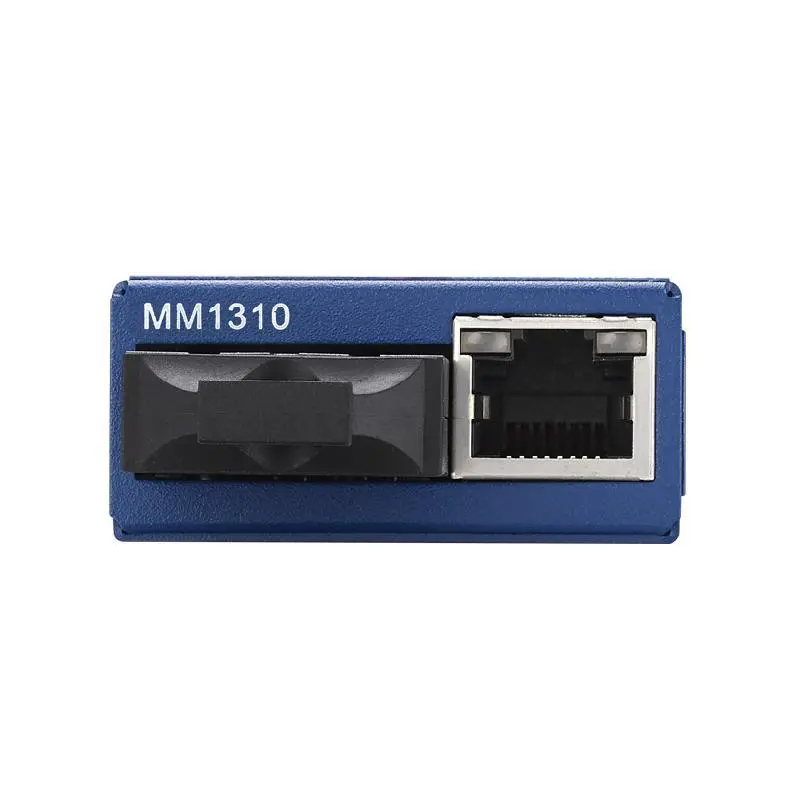

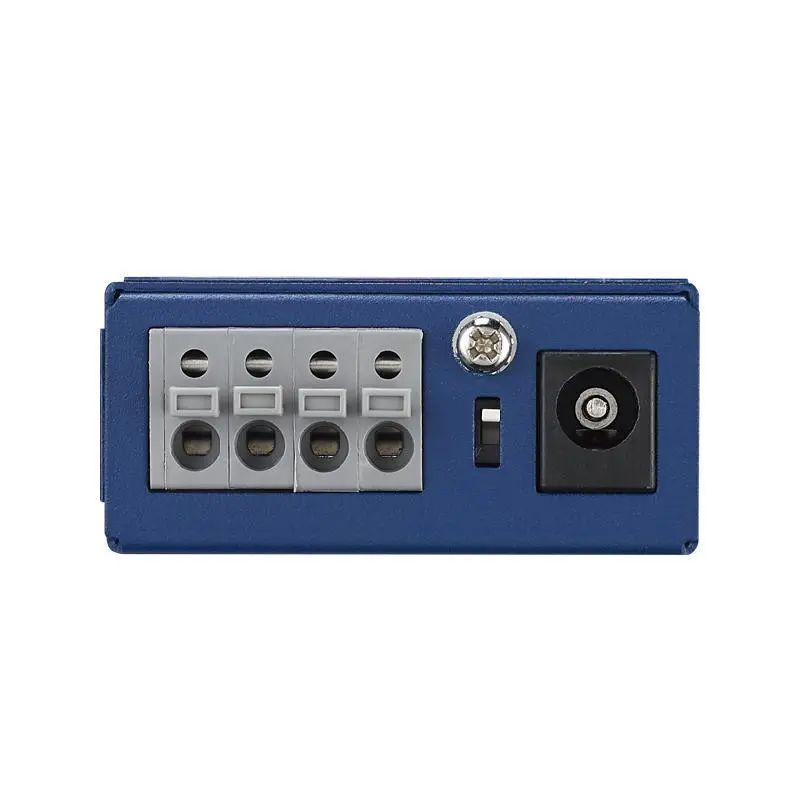

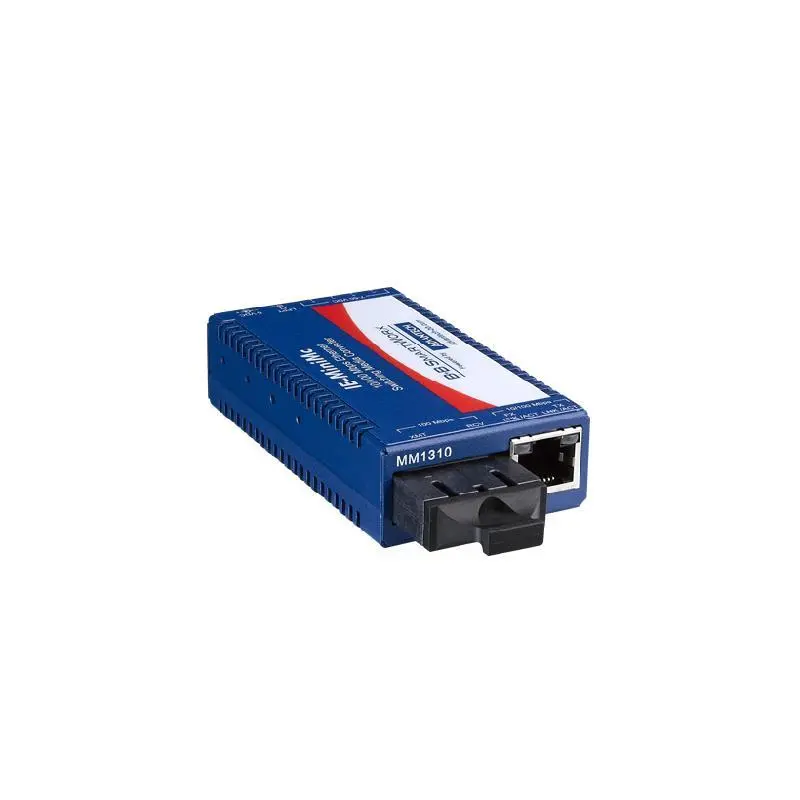

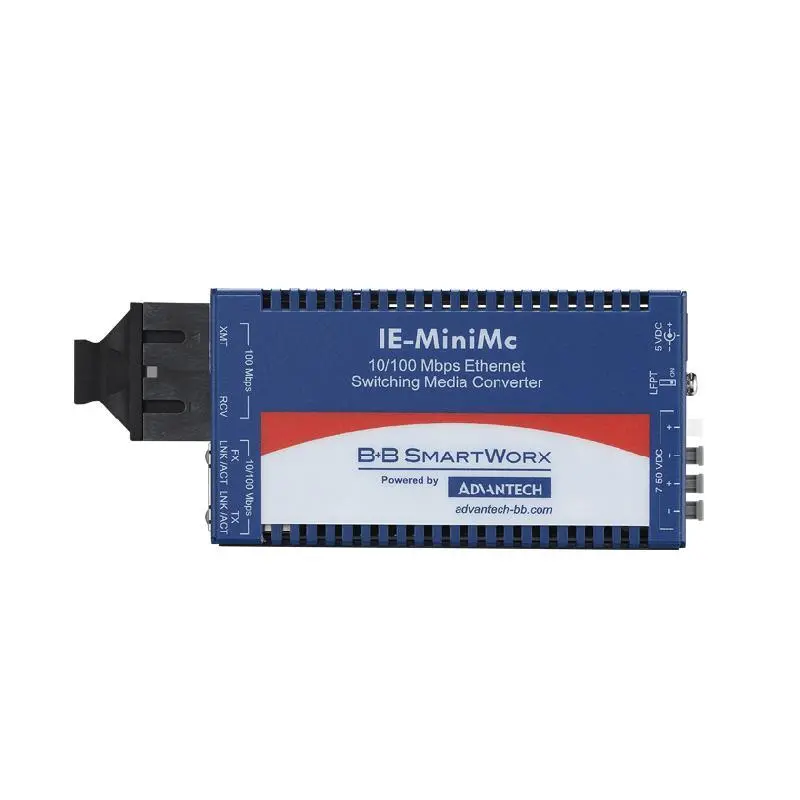

Advantech IMC-350I-MM Mini Hardened Media Converter, 100Mbps, Multimode 1300nm, LFPT, 5km, SC

    Centralized powered IMC-318I chassis

    Supports Link Fault Pass Through functionality (LFPT)

    IEEE802.3af compliant (IMC-350I series as PoE-PD)

    Industrial grade design that supports an extended operating temperature(IMC-350I series)

    Metal enclosure with compact size

IMC-350I-MM-B
Ethernet Communication Fiber Port Number 1
Ethernet Communication RJ-45 Port Number 1
Mechanism Number of Slot 0
Ethernet Communication Fiber Transmission Speed 10/100 Mbps
Ethernet Communication Fiber Port Optical Mode Multi-Mode
Ethernet Communication Fiber Transmission Wavelength 1300 nm
Ethernet Communication Fiber Transmission Distance 5 km
Ethernet Communication Fiber Port Connector Type SC Type
PoE Information PoE-PD Yes
Power Power Input (DC) 7 ~ 50 VDC, 1A
Mechanism Dimensions (W x H x D) 2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.)
Mechanism Weight 0.3 kg (0.7lb)
Environment Operating Temperature -20 ~ 75°C (-4 ~ 167°F)
Environment Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Environment Operating Humidity 5~95% (non-condensing)
Certification Safety UL/cUL
Certification EMC CE, FCC Class A
