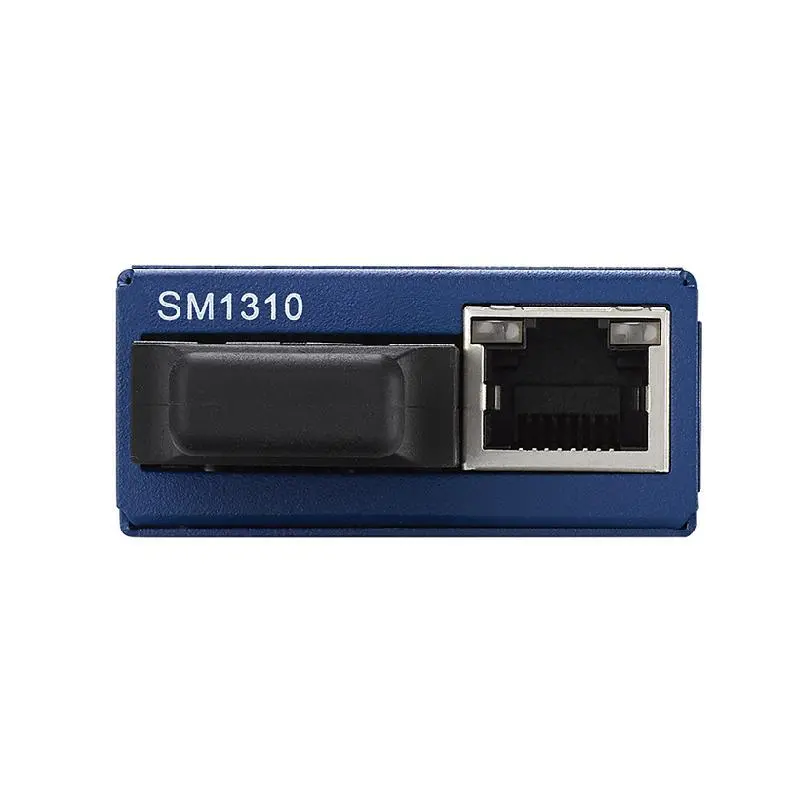

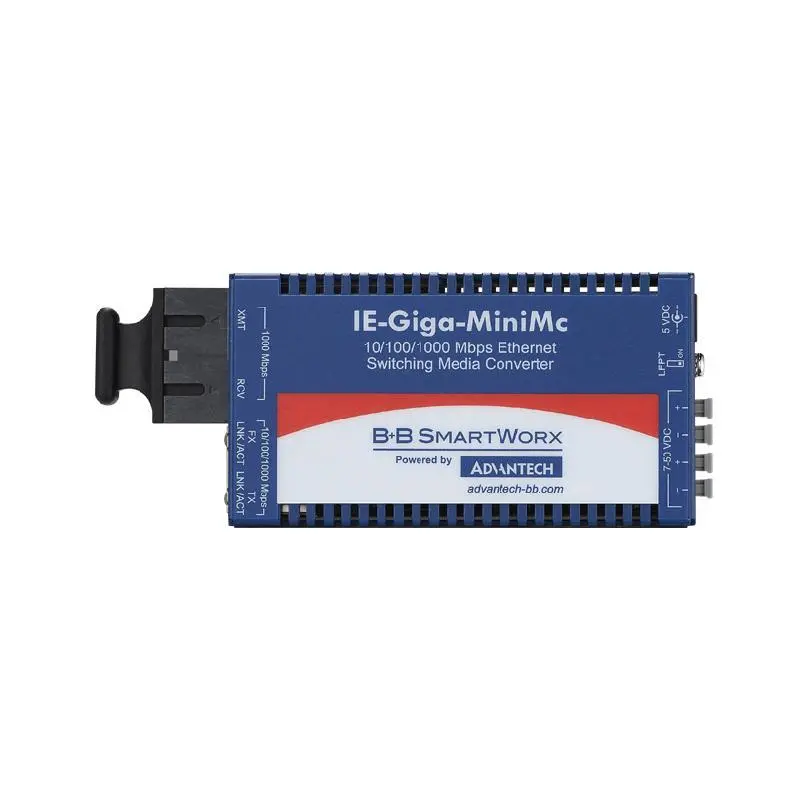

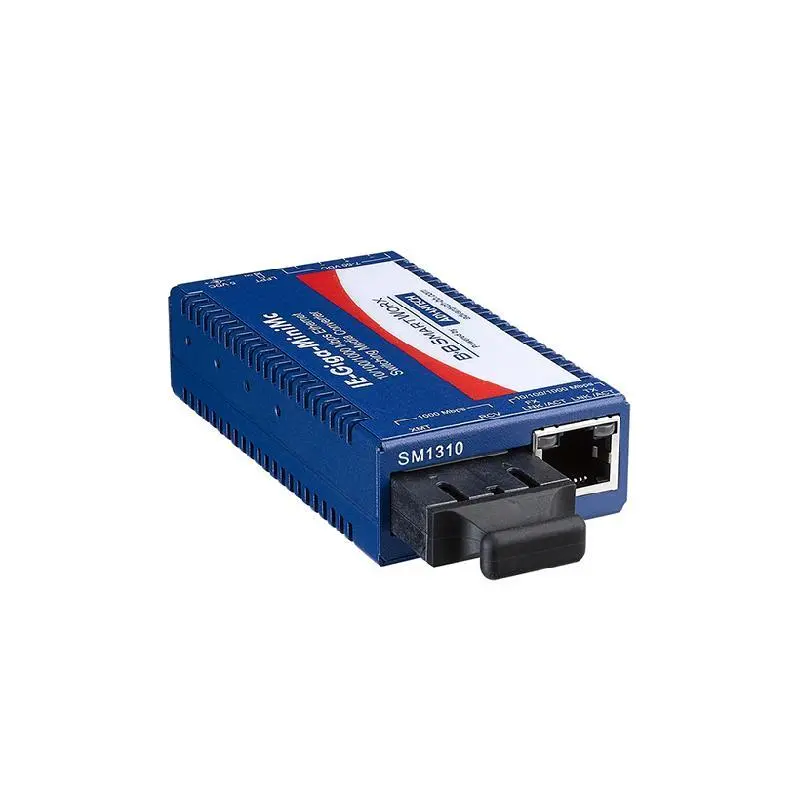

Advantech IMC-370I-SE Mini Hardened Media Converter, 1000Mbps, Single mode 1310nm, LFPT, 40km, SC

Metal enclosure with compact size

Industrial grade design that supports an extended operating temperaturerange (IMC-370I series)

IEEE802.3af compliant (as PoE-PD)

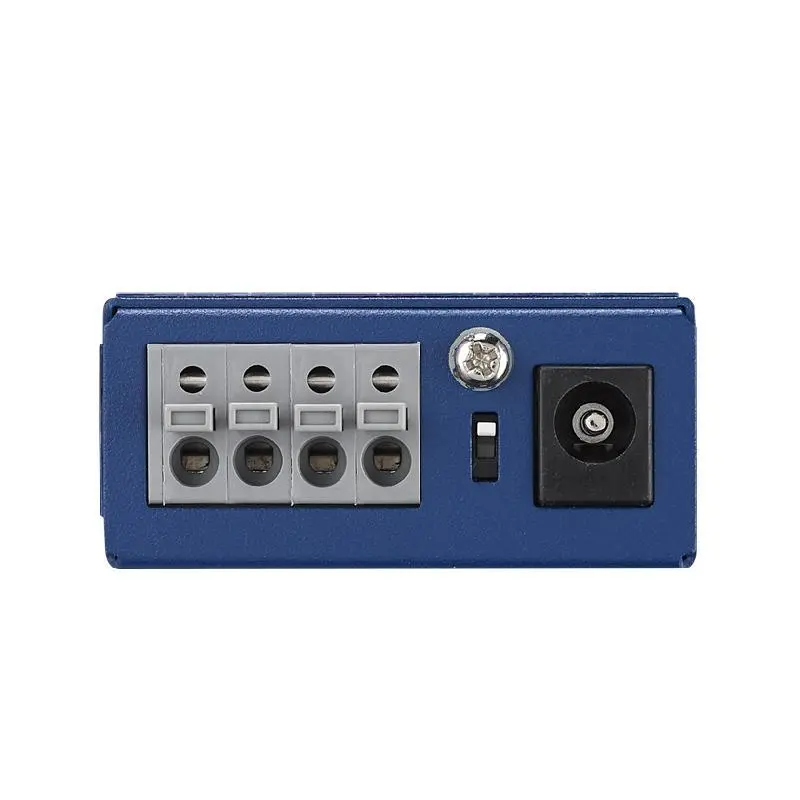

Supports multiple power options: AC or DC adapter and dual USB cable

Supports Link Fault Pass Through (LFPT)

Centralized powered IMC-318I chassis

		IMC-370I-SE-C
Ethernet Communication	RJ-45 Port Number	1
Ethernet Communication	Fiber Port Number	1
Ethernet Communication	Fiber Port Interface	Single-Mode
Ethernet Communication	Fiber Transmission Distance	40 km
Ethernet Communication	Fiber Transmission Speed	1000 Mbps
Ethernet Communication	Fiber Port Optical Mode	Single-Mode
Ethernet Communication	Fiber Transmission Wavelength	1310 nm
Power	Power Input (DC)	7 ~ 50 VDC, 1A
Mechanism	Dimensions (W x H x D)	2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in.)
Environment	Operating Temperature	-25 ~ 75°C (-13 ~ 167°F)
Environment	Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Environment	Operating Humidity	5~95% (non-condensing)
Certification	Safety	UL/cUL
Certification	EMC	CE, FCC Class A, CSA
